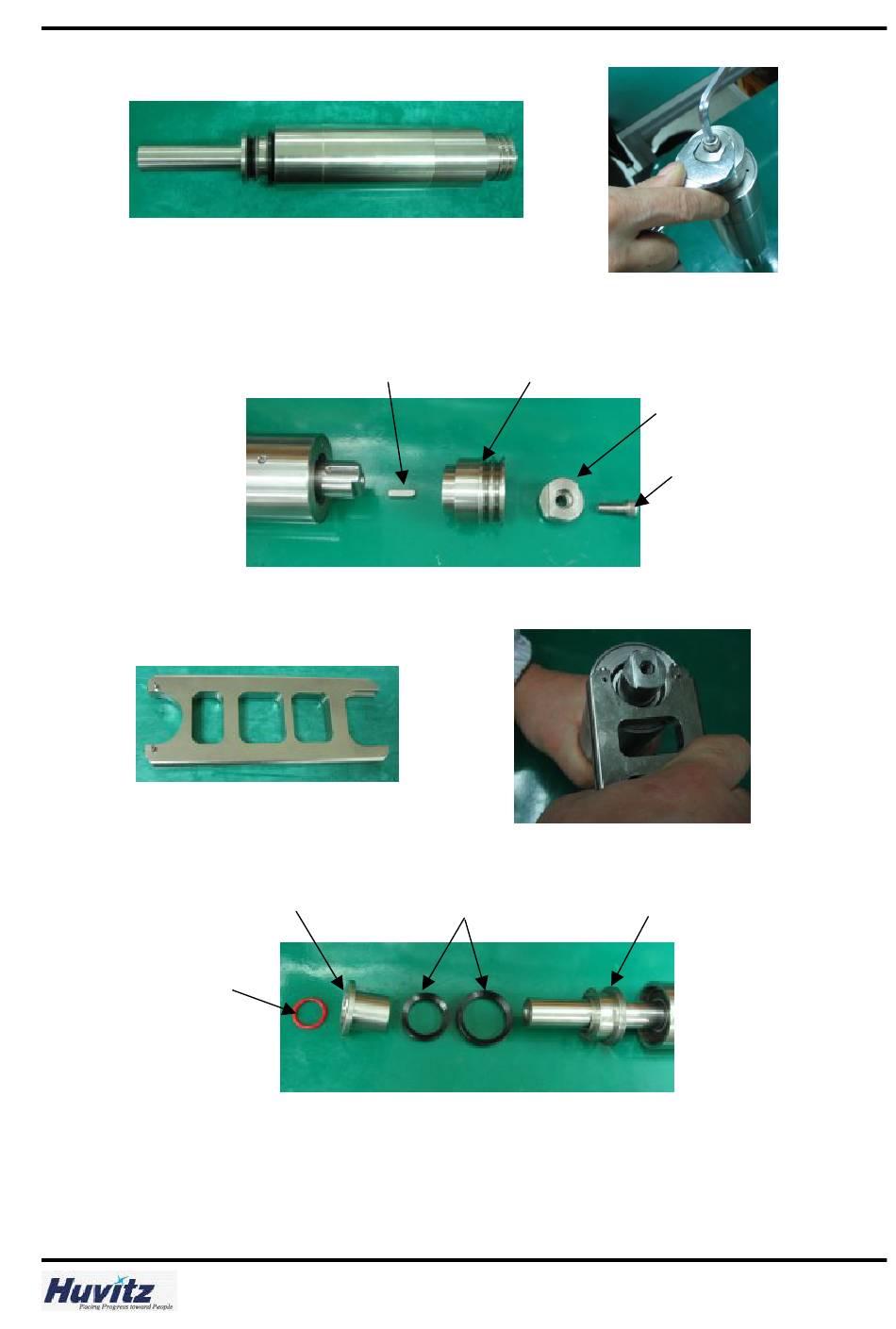

10. Remove the Right Shaft Plug, Shaft Small Pulley and Key.
11. Remove the Right Shaft Cover with adequate tool.
12. Remove the O-ring and Shaft Water Cover Spacer.
Shaft Water Cover Spacer
O-ring
13. Remove the two V-rings.
14. Remove the Left Shaft Cover with tool.
Spindle Ass'y
Key
Step 10
JIG
Step 12,13,14
Step 9
Shaft Small Pulley
V-ring
EXCELON
Right Shaft Plug
M6 screw
Step 11
Left Shaft Cover
CPE-4000 Maintenance
