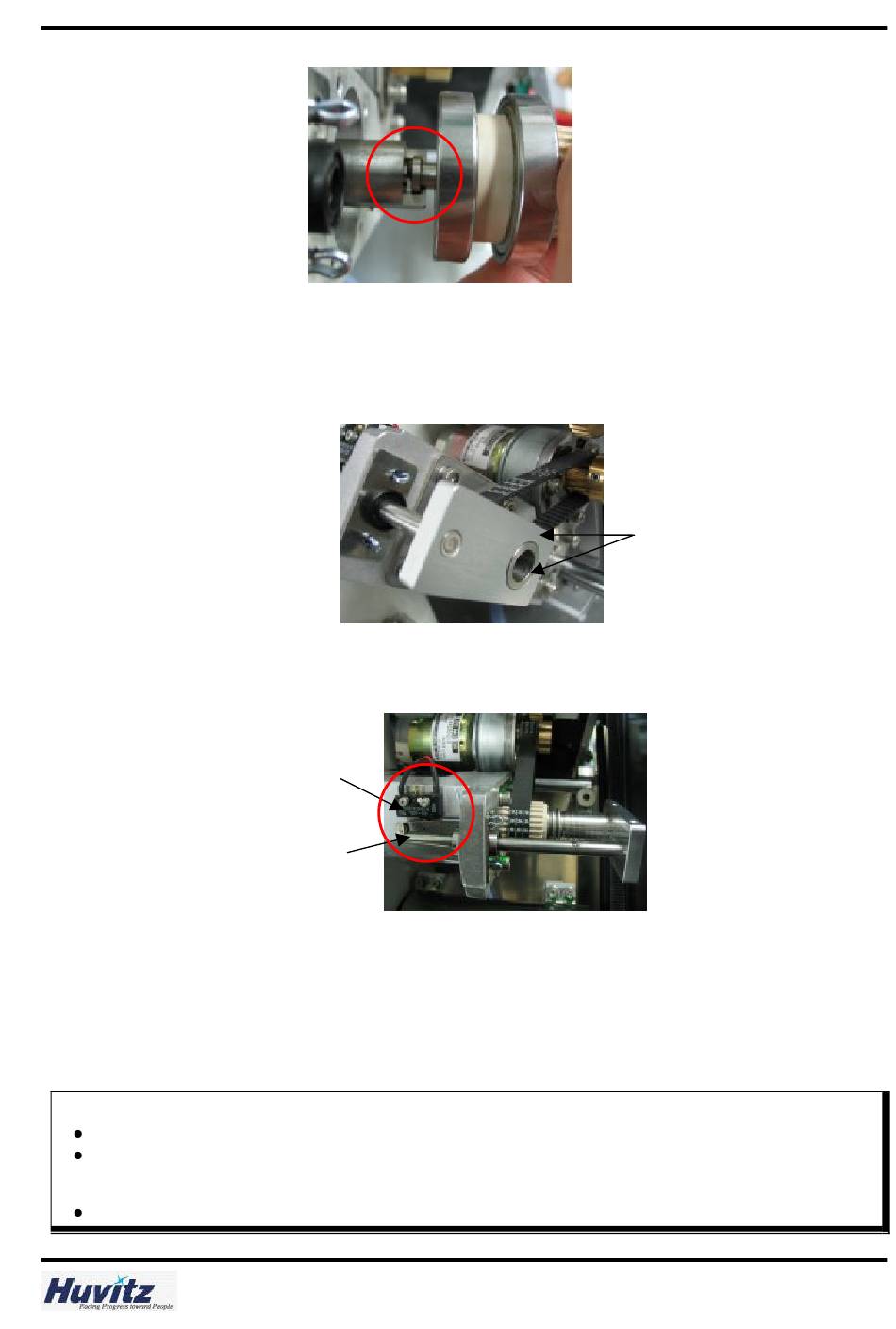

15. Assemble belt in reverse order. Belt deflection amount is about 3 ~ 5mm when the belt is pressed.
16. Assemble Chuck screw plate in reverse order.
Fit the Moving screw end and Plate surface to be aligned.
17. Be sure to check whether the Limit Switch functions rightly.
Chuck Guide Shaft
18. Assemble all parts in reverse order.
Caution
Check whether Chuck Shaft moves smoothly.
Be sure to put steel ball in right position. (Step 15)
Adjustment needed
Check whether Clamping process work rightly in the Test Mode.
Step 16
Limit Switch
Step 20
Step 14
Fitt he two surface flat
