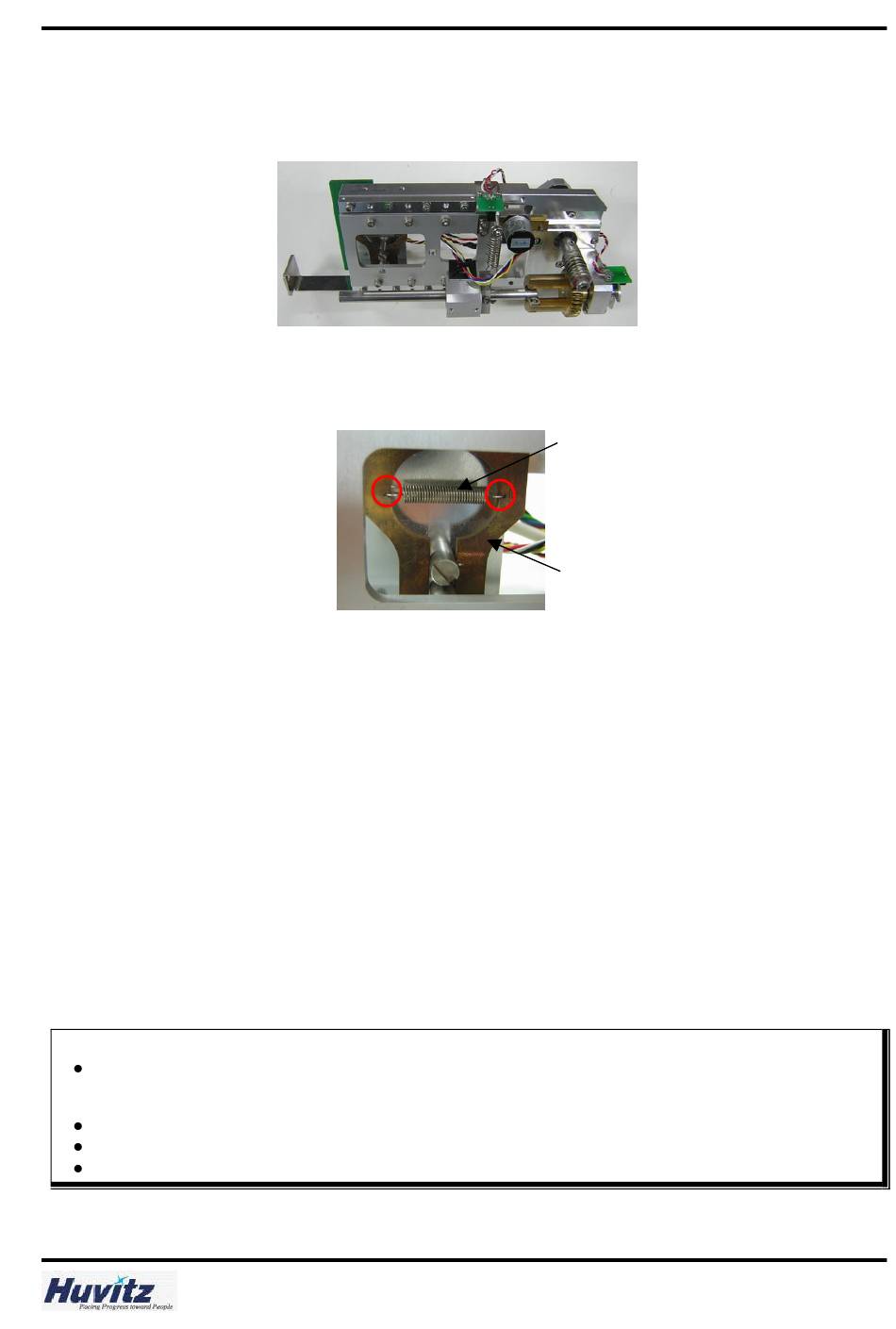

6. Feeler Ass'y X Lever Spring Replacement
1. Refer to step 5 to separate the Feeler Ass'y.
2. Remove the spring linked between the two X Lever by the tweezers or adequate tool.
3. Replace it with a new one.
4. Assemble Feeler Ass'y referring to step5.
Caution
Adjustment needed
Check whether the Feeler Ass'y functions are right in the Test Mode.
After performing Feeler Calibration, check the Edging quality.
If the Bevel Adjustment value is changed, check the Groove & SFB Adjustment.
Step 2
Step 3
Spring
X Lever
