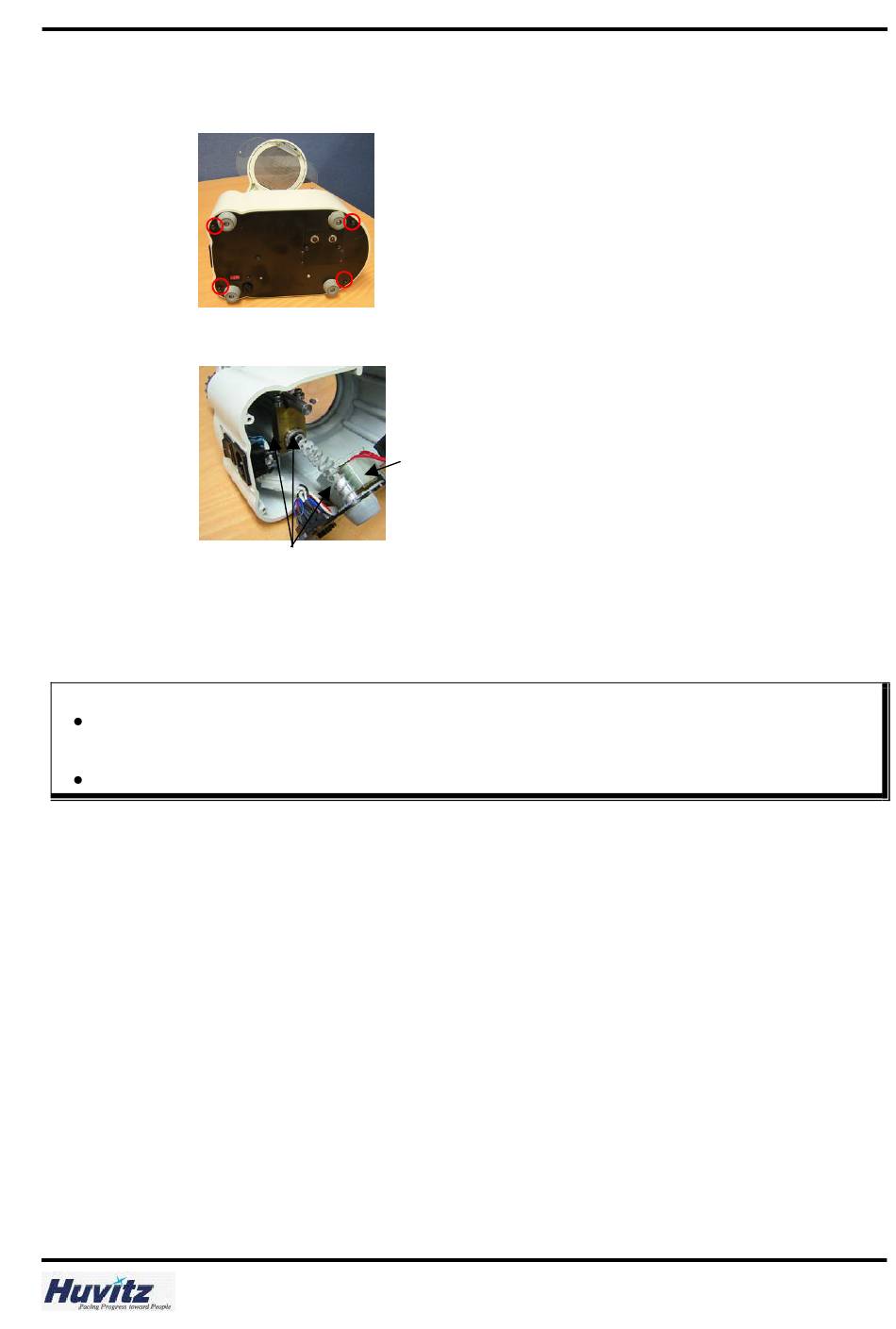

3. Spreading grease on the Z-axis Shaft & Spring
1. Separate the Base plate.
2. Spread Grease as shown in below picture.
3. Spread Grease on the Block Main Axis also.
4. Assemble in reverse order.
Caution
None
Adjustment needed
None
Step 1
Base Ass'y
Grease here
