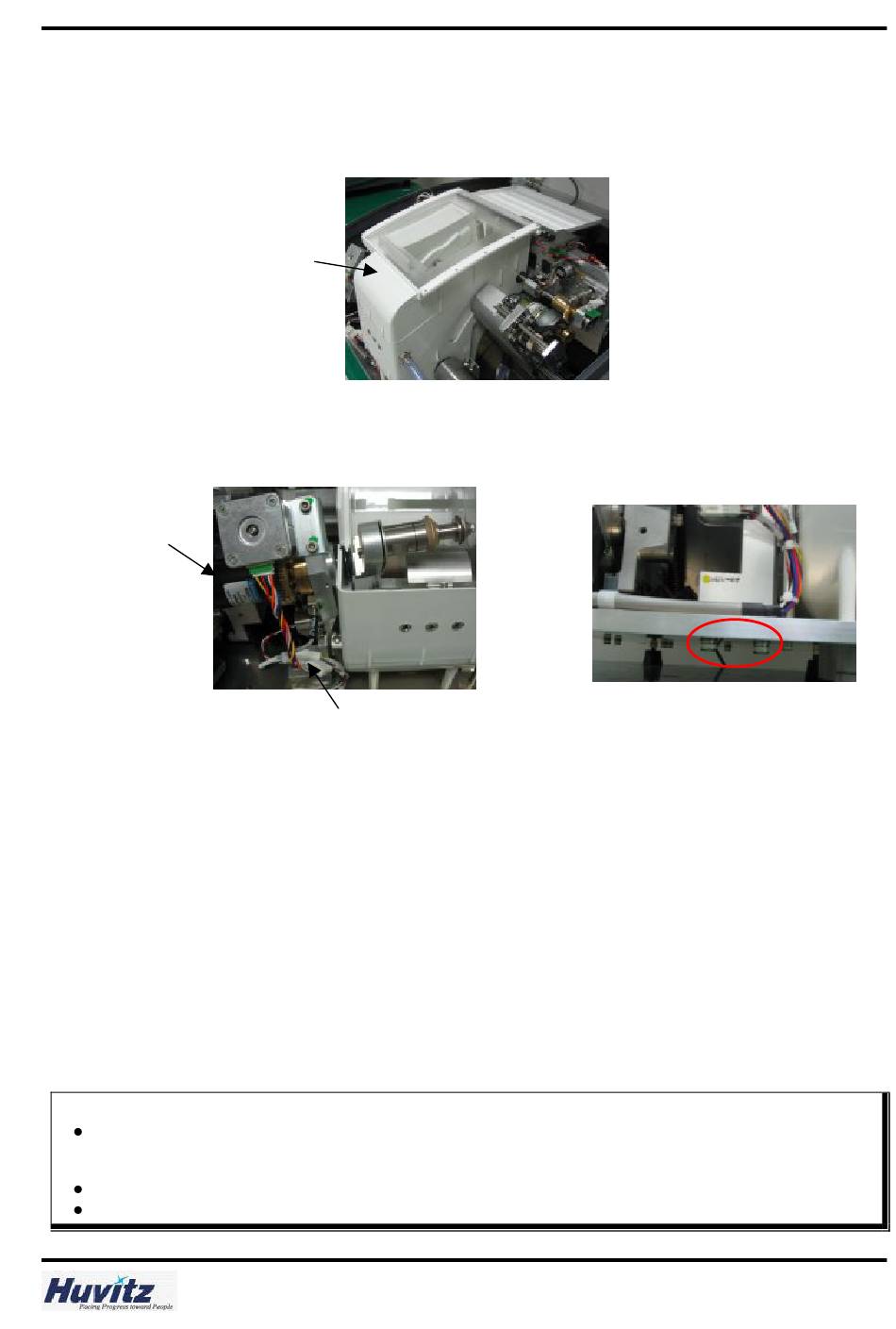

7. SBG Ass'y Replacement

1. Open the Main Cover.
2. Remove the Edging Room Window Ass'y.
3. Disconnect all connectors.
4. Remove two locking screws from the bottom of the Edger.
DC Motor
Terminal
5. Replace it with new one.
6. Assemble all removed parts in reverse order.
Caution
Be sure to check if there is any water leakage while lens edging.
Adjustment needed
Check whether the SBG Ass'y functions rightly in the Test Mode.
Perform SBG Calibration and Groove & SFB Adjustment.
Edging Room
Window Ass'y
Connectors
Step 2
Step 3
Step 4
