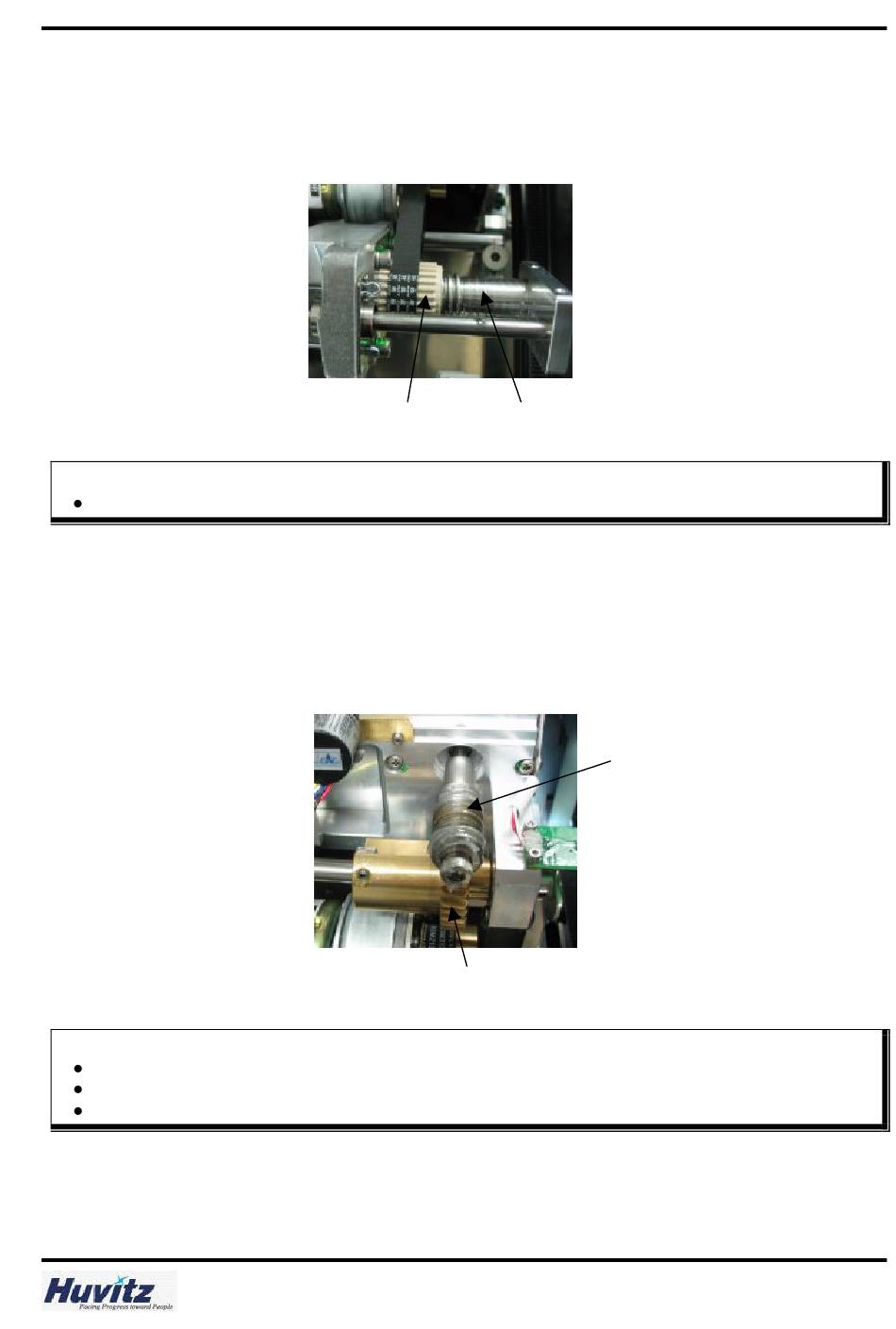

3. Clamping Screw & Nut
① Wipe out dirty grease from the Screw & Nut surface.
② After spreading grease on the Screw and Nut, perform Clamp Test to spread grease evenly.
Caution
Keep your hands off when it moves. It can cause severe harm.
4. Feeler Ass'y Rotation Worm & Worm Wheel
① Wipe out dirty grease from the Worm & Worm Wheel surface.
② After spreading grease on the Worm & the Worm Wheel, perform Feeler Test to spread grease
evenly.
Caution
Never spread grease on the Rack & Pinion of Encoder.
Never spread grease on the Slider part for Feeler X-direction Motion.
Keep your hands off when it moves. It can cause severe harm.
Nut
Screw
Worm Wheel
Worm
CPE-4000 Maintenance
