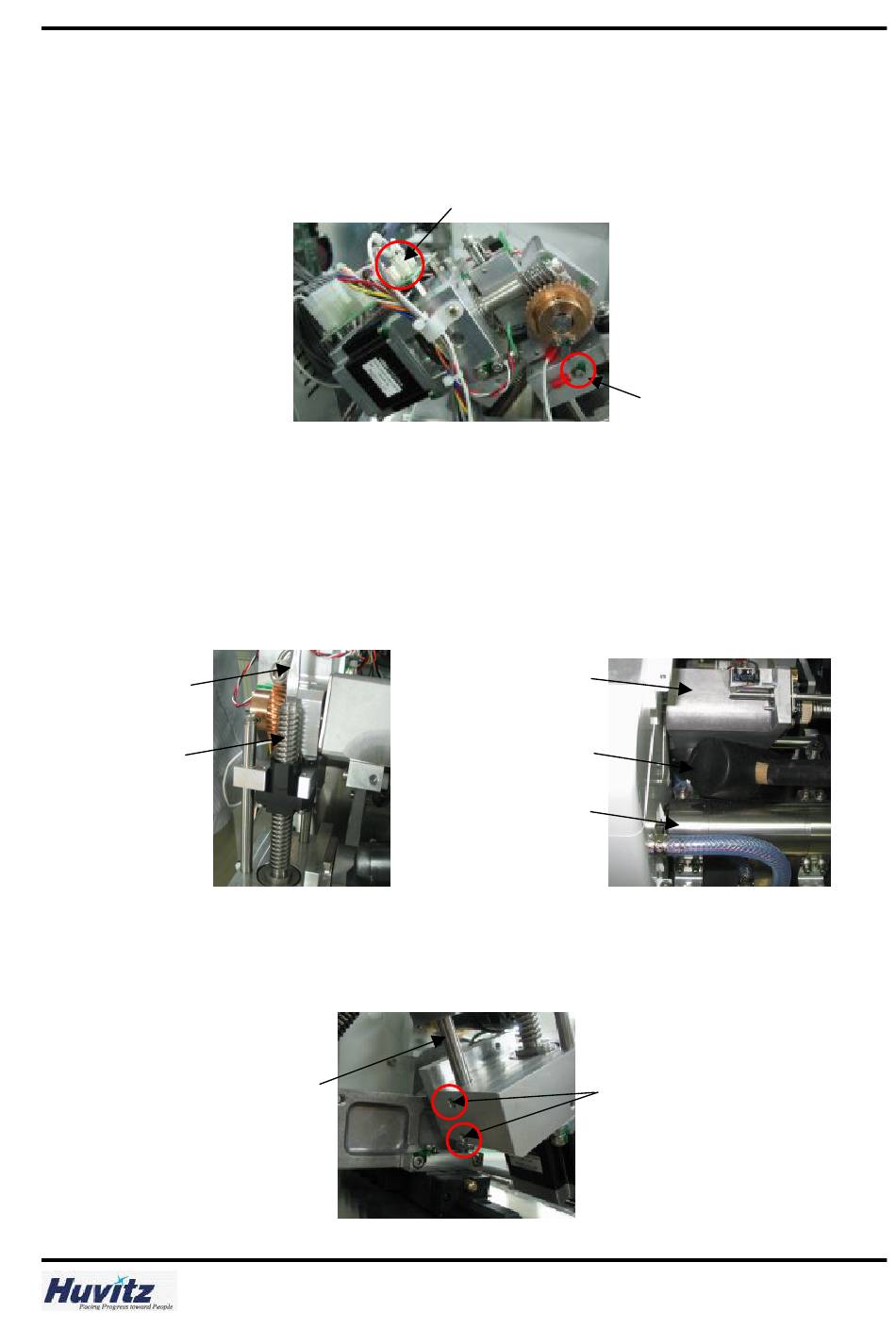

10. Y-axis Screw & Nut Replacement
1. Open the Main Cover and Edger Left Side Cover.
2. Disconnect the Lift Z Motor Connector.
After loosening screw, separate the Contact Switch Terminal.
3. Remove Rotation Worm & Worm Wheel Ass'y referring to [Step9-Rotation Worm & Worm Wheel
Replacement].
4. Rotate Lift TM Screw's '–' slot clockwise using a screwdriver. And let the Carriage Ass'y to be the
lowest position.
5. Support the Carriage Body and Spindle Ass'y to avoid bumping with each other.
'–' screwdriver
Lift TM Screw
6. Loosen setscrews as shown in below picture and pull out Lift Guide Rod-L.
Step 4
Lift Guide Rod-L
Step 6
Lift Z Motor Connector
Step 2
Carriage body
supporter
Spindle Ass'y
M5 Setscrew
EXCELON
M3 screw
Step 5
CPE-4000 Maintenance
Ⅱ
28
-
