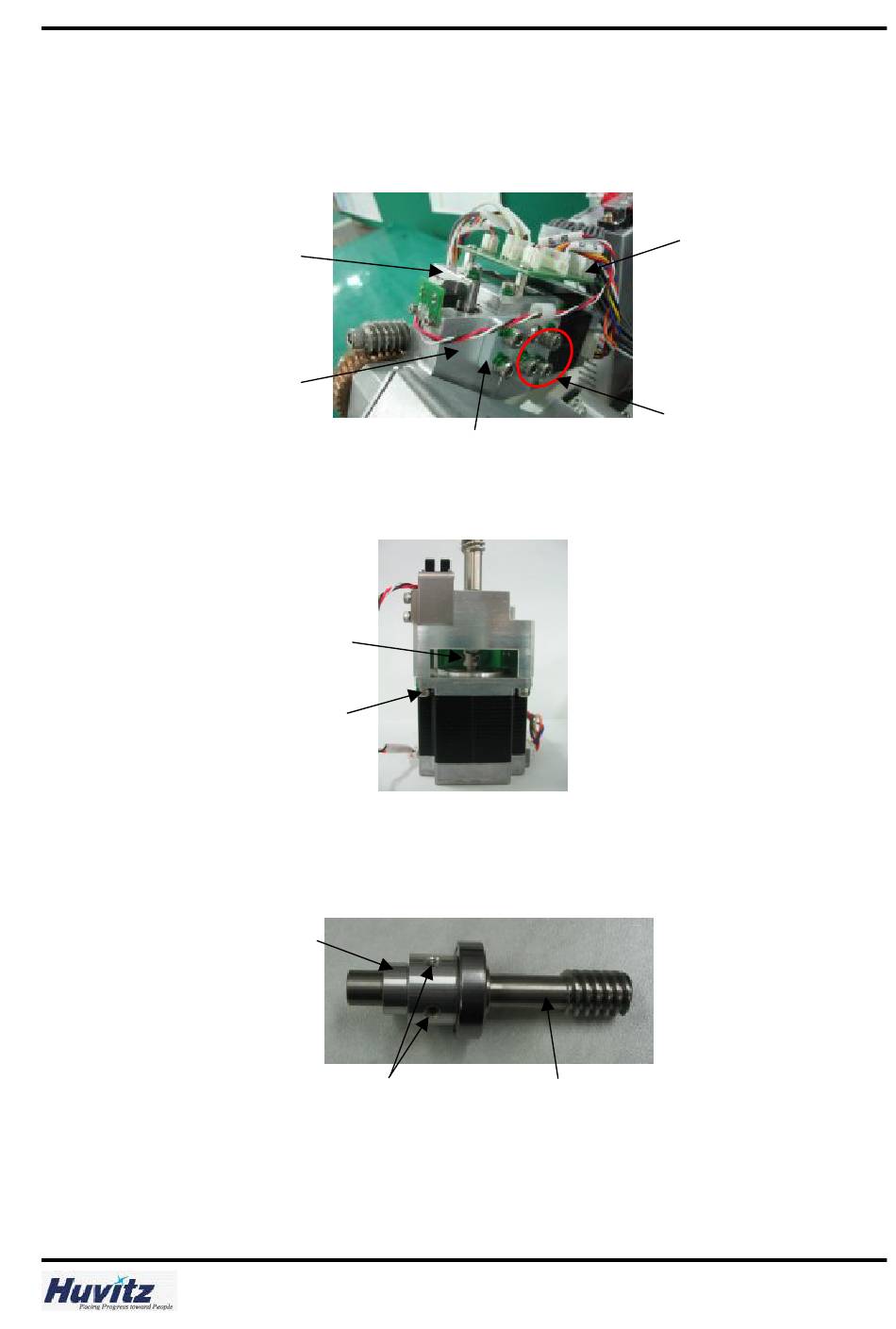

9. Rotation Worm & Worm Wheel Replacement
1. Open the Main Cover.
2. Remove the Edger left side cover
3. Disconnect all connectors.
Rotation Worm Ass'y
Rotation Motor Plate
4. Remove three screws and separate Rotation Worm Ass'y.
5. Loosen setscrews shown in below picture.
6. Remove Stepping Motor then separate Rotate Worm as below picture.
Rotation Bearing Spacer
7. Replace it with a new one.
Step 3, 4
Rotation Motor Plate Fixer
M4 setscrew
M4 Bolt
Rotation Worm Ass'y
M4 setscrew
Step 5
Step 6
Rotation Worm
CPE-4000 Maintenance
EXCELON
Connectors
M5 Bolt
(Step 4)
Ⅱ
26
-
