12. Replacement and maintenance of the consumable parts.

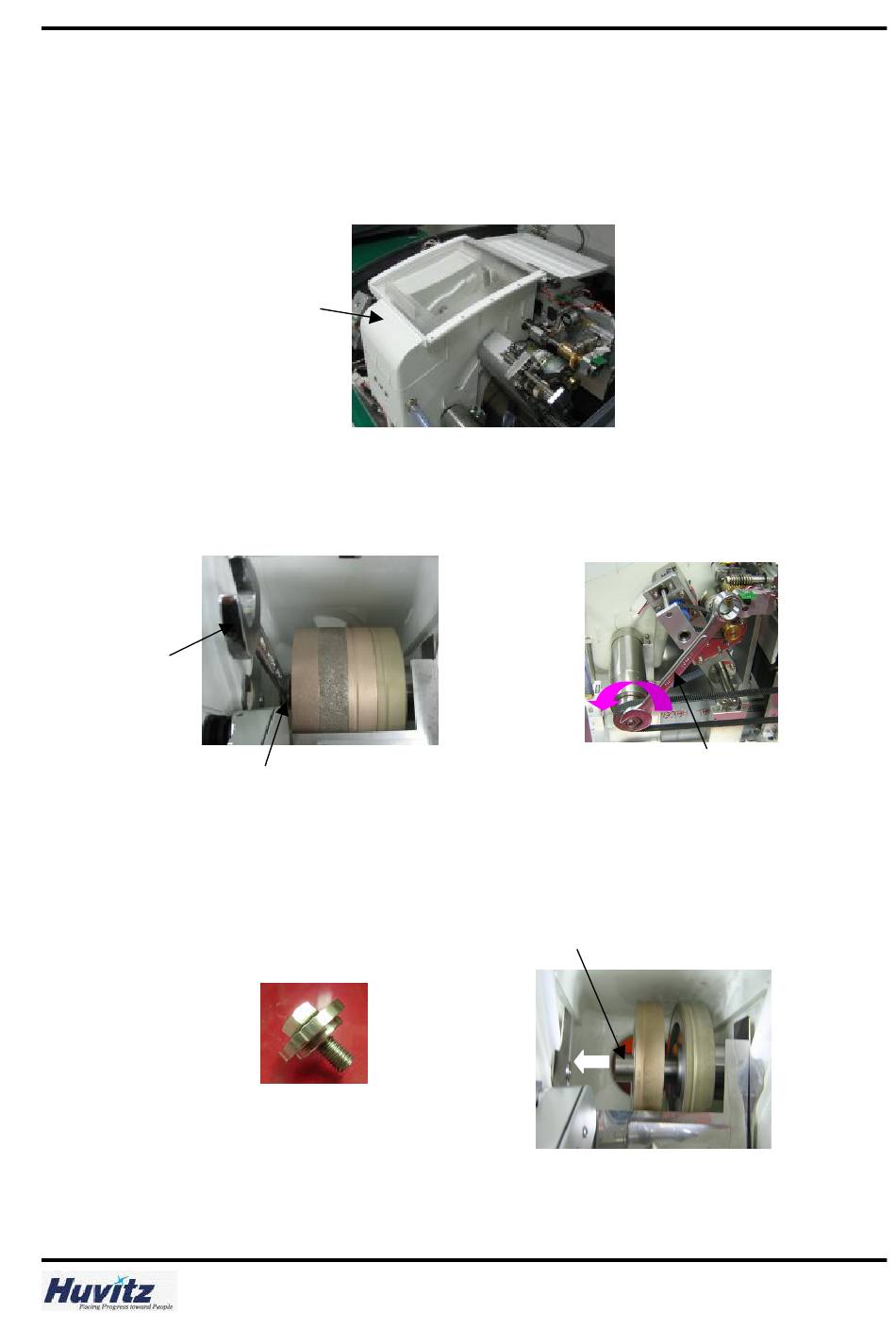

1. Grinding Wheel Replacement

1. Open the Main Cover.
2. Remove the Edging Room Window Ass'y.
3. Grab the Left Shaft Plug with Spanner(#13) and the Right Shaft Plug with spanner(#17) of the
Spindle Ass'y and then, unlock them to the direction as below picture.
Spanner(#13)
4. Hold the Left Shaft Plug with fingers and rotate the Belt. Then remove the Left Shaft Plug from the
shaft.
5. Remove the Grinding Wheels from the Spindle Main Shaft.
Edging Room
Window Ass'y
Step 3
Left Shaft Plug
Shaft Left Plug
Step 2
Step 3
Spindle Main Shaft
EXCELON
Spanner(#17)
Step 5
Ⅱ
