2. LCD Key Board Replacement

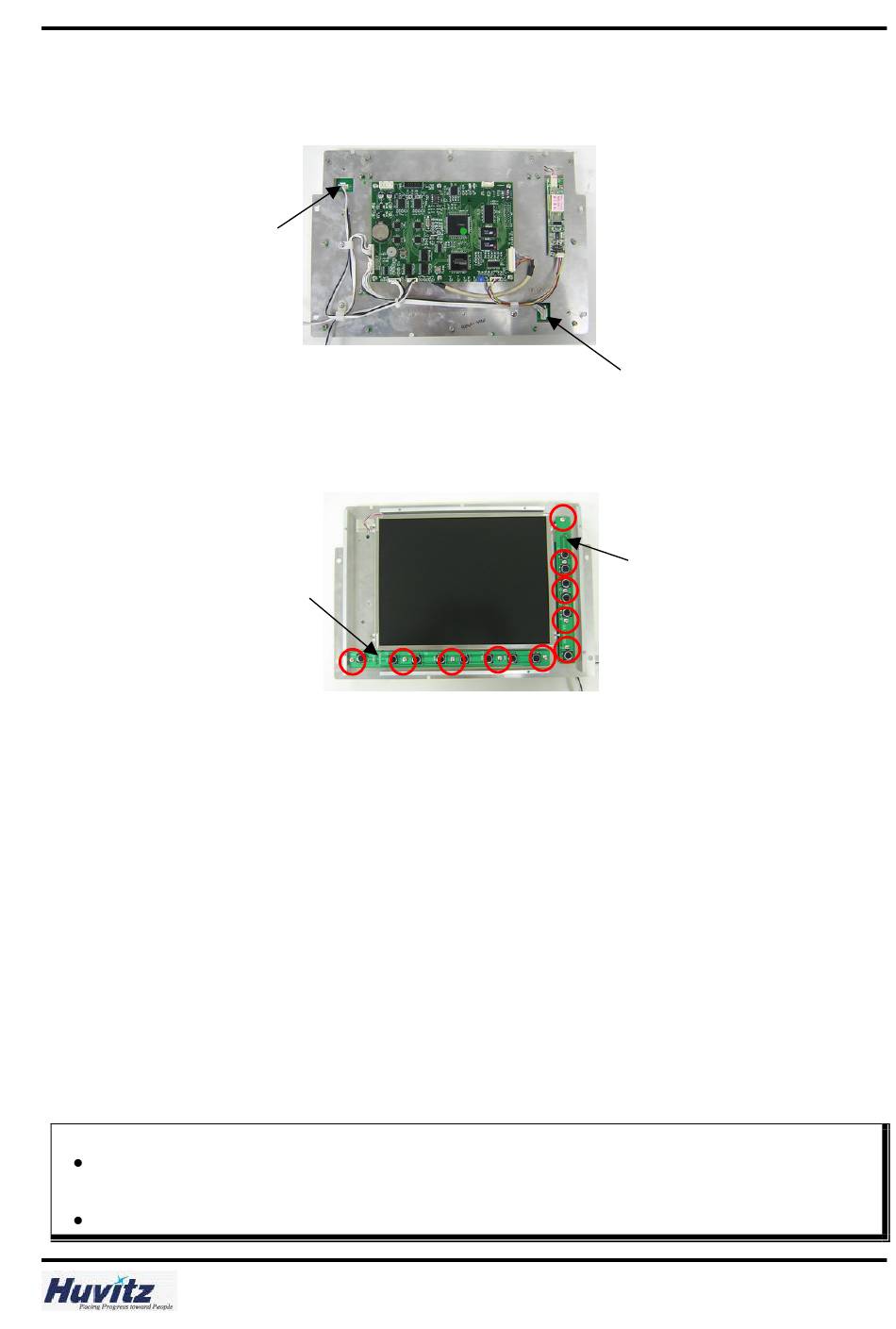

1. Separate the LCD Ass'y from the Main Cover.
LCD Key B/D
8-Key
2. Remove the front acryl window and Separate wrong Key Board.
3. Replace it with a new one.
4. Assemble all parts in reverse order.
Caution
Be sure to check whether every key function is right or not.
Adjustment needed
LCD Key B/D
8-Key
Step 2
Step 3
LCD Key B/D
6-Key
LCD Key B/D
6-Key
