15. Separate ball bearings from both side of the Shaft Housing.
Be sure to remember the insertion direction of the Disk Springs when extracting the right side
bearing.
Bearing
16. Replace them with new ones (6004ZZ).
17. Assemble the Right Shaft cover.
18. Assemble the Left Shaft cover.
19. Insert V-rings. (If necessary, replace it with a new one)
20. Insert the Shaft water cover spacer.
Be sure to spread mechanical grease between V-ring and Shaft water cover spacer.
Shaft Water Cover Spacer
21. Insert O-ring into the Spindle Shaft Main.
The O-ring should be squeezed into the Shaft water cover spacer.
Shaft Water Cover Spacer
22. Assemble all parts in reverse order.
23. Assemble Spindle Ass'y in reverse order. Be sure to fit the position with location pin.

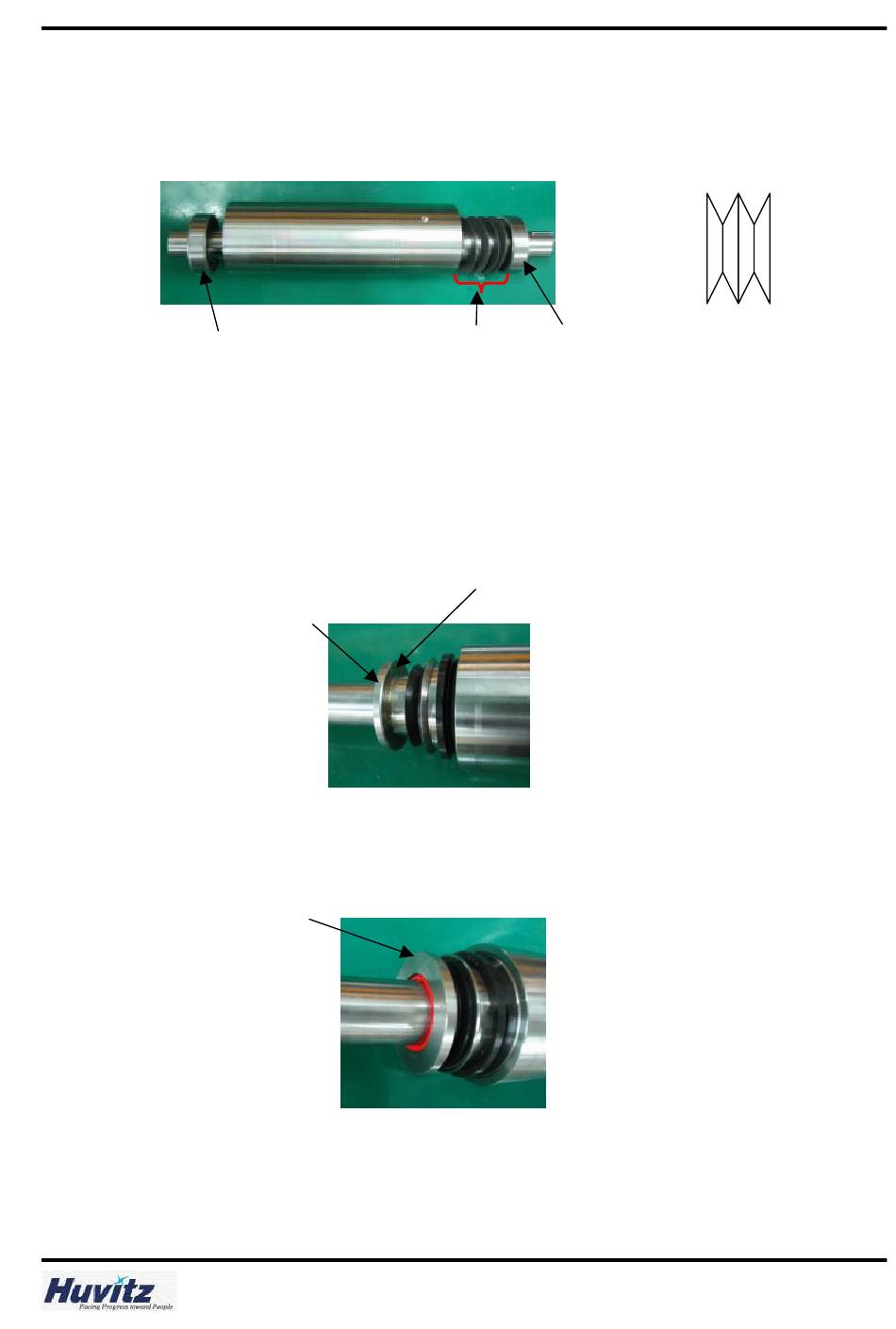

Step 15
Disk Spring
Step 20
Step 21
Bearing
Spread grease
on this surface
