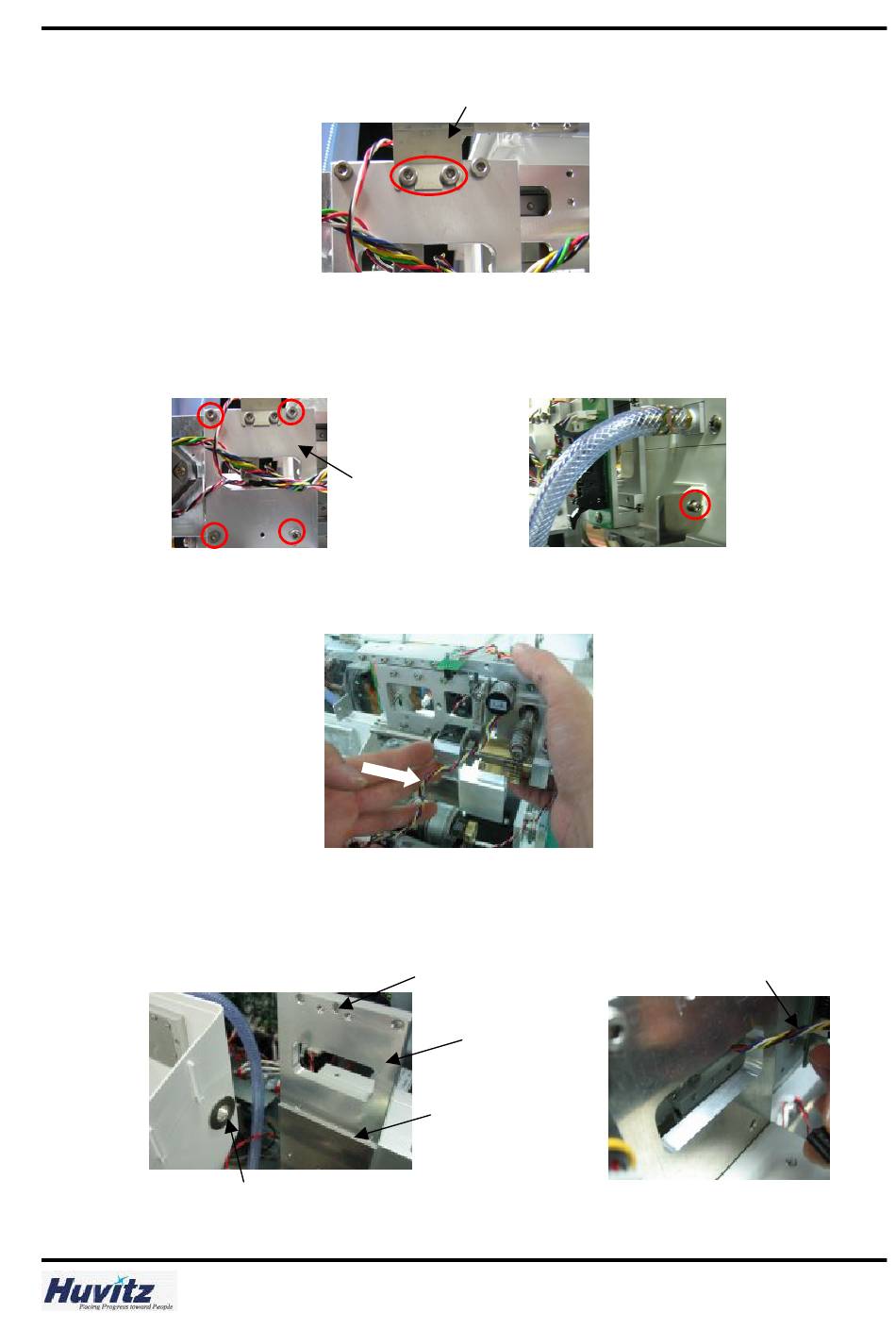

7. Remove the Window Cover Limit Switch Ass'y.
8. Remove four screws that are connecting Feeler Ass'y and Feeler Mount Base.
9. Remove screw connecting Edging Room and Feeler Ass'y.
Step 8
10. Separate the Feeler Ass'y to the right direction as below picture.
11. If there are a lot of dusts in Filter Cap, then remove them. If necessary, separate the Filter Cap.
12. Assemble the Feeler Ass'y in reverse order.
Be sure to let the Feeler Encoder Cable passes the rectangle slot of Feeler Mount Base.
Step 11
13. After finishing assembling the Feeler Ass'y, check the smoothness of the Feeler Tip Ass'y.
Feeler Mount Base
Step 10
Filter Cap Out
Limit Switch Ass'y
Step 8
pin hole
Feeler Mount
Base
Base level
Step 9
Feeler Encoder Cable
Step 12
CPE-4000 Maintenance
EXCELON
Ⅱ
