SuperServer E403-9D-16C-IP User's Manual
M.2 SSD Installation
The X11SDW-16C-TP13F supports three M.2 SSD connectors. To install an M.2 SSD, first
locate the connector and the standoff on the motherboard.
1. Remove the screw from the standoff and set aside.
2. Remove the old M.2 SSD drive.
3. Insert a new M.2 SSD into the slot.
4. Align the cutoff circle with the standoff.
5. Reinstall the screw on the standoff.
Note: The illustration shows the M.2 22110 card. Follow the same procedure to install the
M.2 3042 and 2230 cards in their respective slots.
3

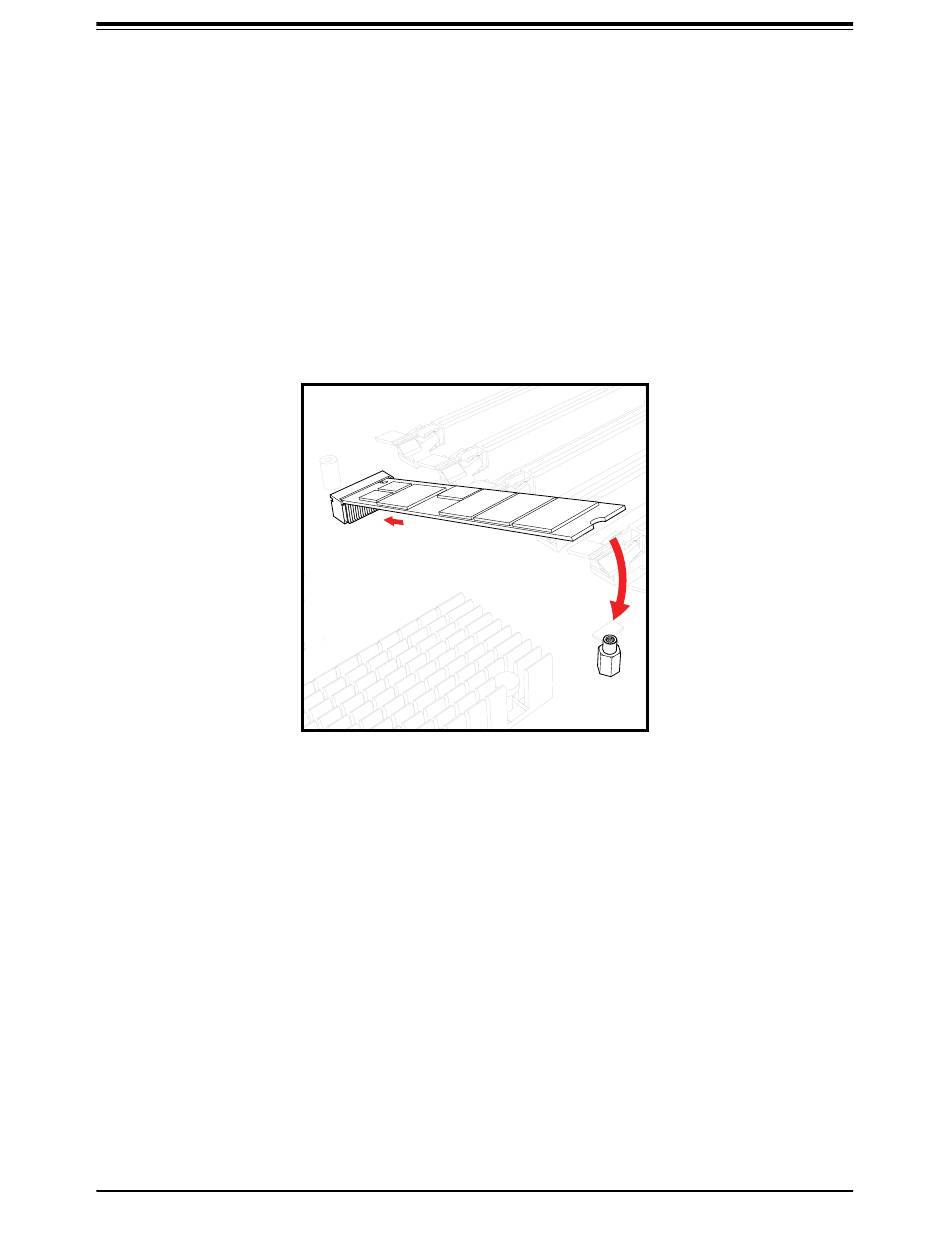

Figure 3-6. Installing an M.2 SSD
34
