Power Distribution Panel

No Function

AC Power Input Specifications

The system comes with a 70-inch long cable for input power, which is mainly for PoC and
can only be used indoors. When implemented in the field, please select a AWG 16 cable
and make sure it is well protected from the outdoor environment. We suggest attaching ring
terminal lugs to the bare wires in your cable preparation. We also suggest removing the server
so the terminal on the panel can be well accessed for connecting the power. After installing
the cable, please replace the protecting cap as a safety measure.
Pin Description
L AC Live
N AC Neutral
Protective
PE
Earthing
No Function
AC Power Output

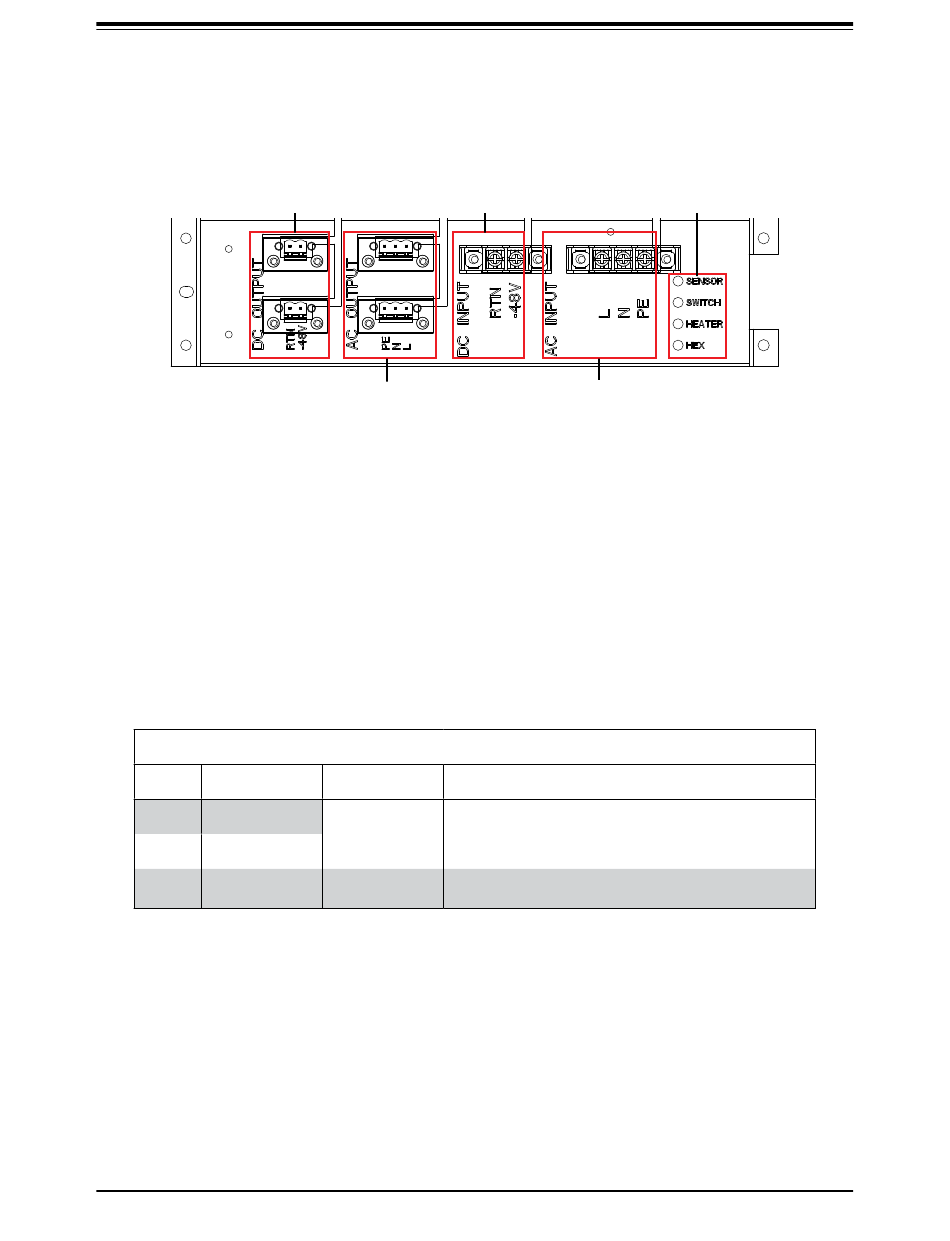

Figure 1-6. Power Distribution Panel
AC Power Input Specifications
Range Note
110/220VAC 11A/5.5A max.
