SuperServer E403-9D-16C-IP User's Manual
Dimensions (IP65 Enclosure)
IP65 Enclosure (HxWxD) 20.3 x 17.6 x 25.6" (515 x 445 x 648mm)
Weight
117lbs. (54kg.)
Note: This is a general block diagram and may not exactly represent the features on your
motherboard. See the System Specifications appendix for the actual specifications of your
motherboard.
System Features

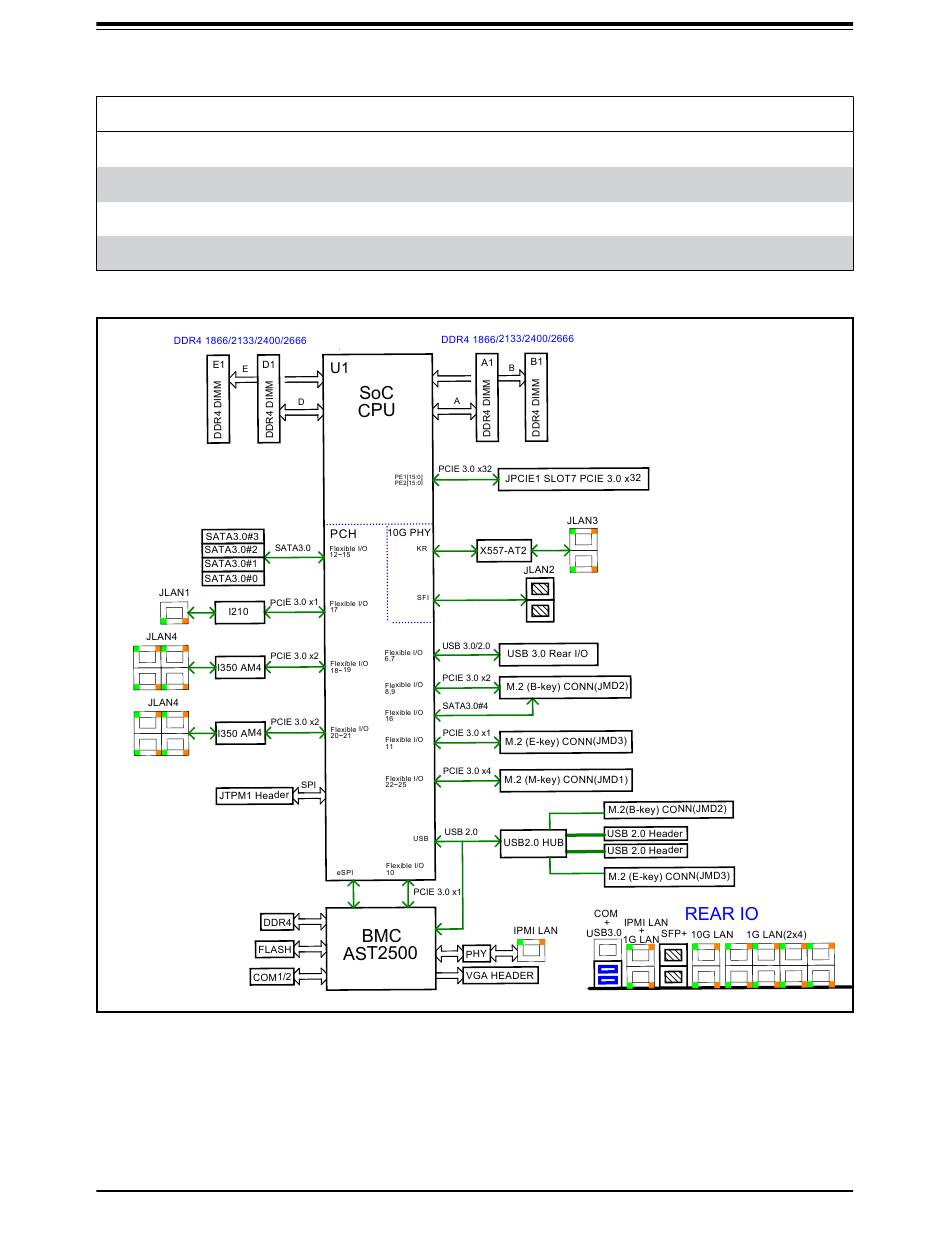

Figure 1-1. Chipset Server Block Diagram
