3.2 Accessing the Server
Open the fan cover to access the server fans. Remove the server cover to access other
server components. Remove the hard drive cage, the expansion card module, and the air
shroud to access the motherboard.
Accessing the Fans and Fan Filters
The server fan can be accessed without powering down the server.
1. Remove the two screws on the fan cover (see figure below).
2. Flip open the fan cover to access the fans.
Chapter 3: Maintenance and Component Installation

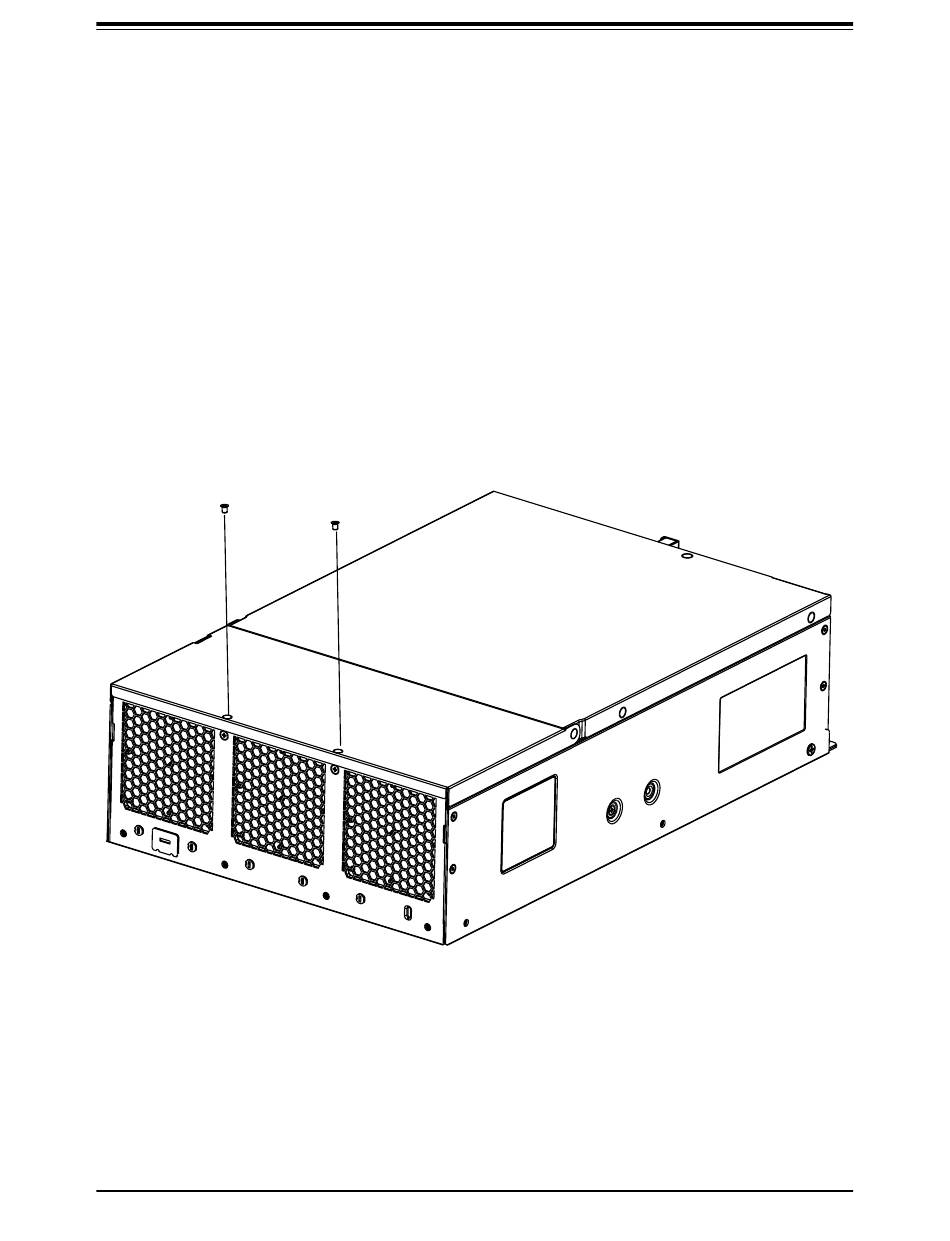

Figure 3-1. Removing Fan Cover Screws
