DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order:
DIMMA1, DIMMB1, DIMMD1, DIMME1.
•
Always use DDR4 DIMM modules of the same type and speed.
•
Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the
slowest DIMM.
•
The motherboard will support odd-numbered modules (one or three modules installed).
However, for best memory performance, install DIMM modules in pairs to activate memory
interleaving.
UID
JUIDB1
JSXB1A
C A
LEDM1
COM2
JVRM1
JPG1:VGA
1-2:ENABLE
2-3:DISABLE
JPG1
JSIM1
JPL2
JPL3
JPL2:
LAN 2/3/4/5
1-2:ENABLE
2-3:DISABLE
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JMD2:M.2-H
PCI-E 3.0 X2 / S-SATA4
JPCIE3
JSXB1C
JL1:
CHASSIS
INTRUSION
USB 0/1 JNVI2C1
MH7
JUSB1
USB 2/3
S-SATA3
JPH1
S-SATA2
3 MH4
4
1
2
JPW1
7
LED2
MH6
A
LED3
LAN 2/3/4/5/6/7/8/9
JSDP3
JBM1
J1
JVGA1
JMD1_SRW1
JMD1_SRW2
JI2C1/JI2C2:
1-2:ENABLE
2-3:DISABLE
JWD1:WATCH DOG
1-2:RST
2-3:NMI
JMD2_SRW1
JPME2:
1-2:NORMAL
2-3:ME MANUFACTURING MODE
X11SDW-4C-TP13F+
REV:1.00
DESIGNED IN USA
MH2
CPU
JF1
JF1:
PWR OH HDD PWR
RST X NIC2 NIC1
ON FF LED LED
JPT1:TPM
JD1:
1-2:ENABLE
1-3:PWR LED
2-3:DISABLE
4-7:SPEAKER
JBT1
LED1
Power LED
FAN4

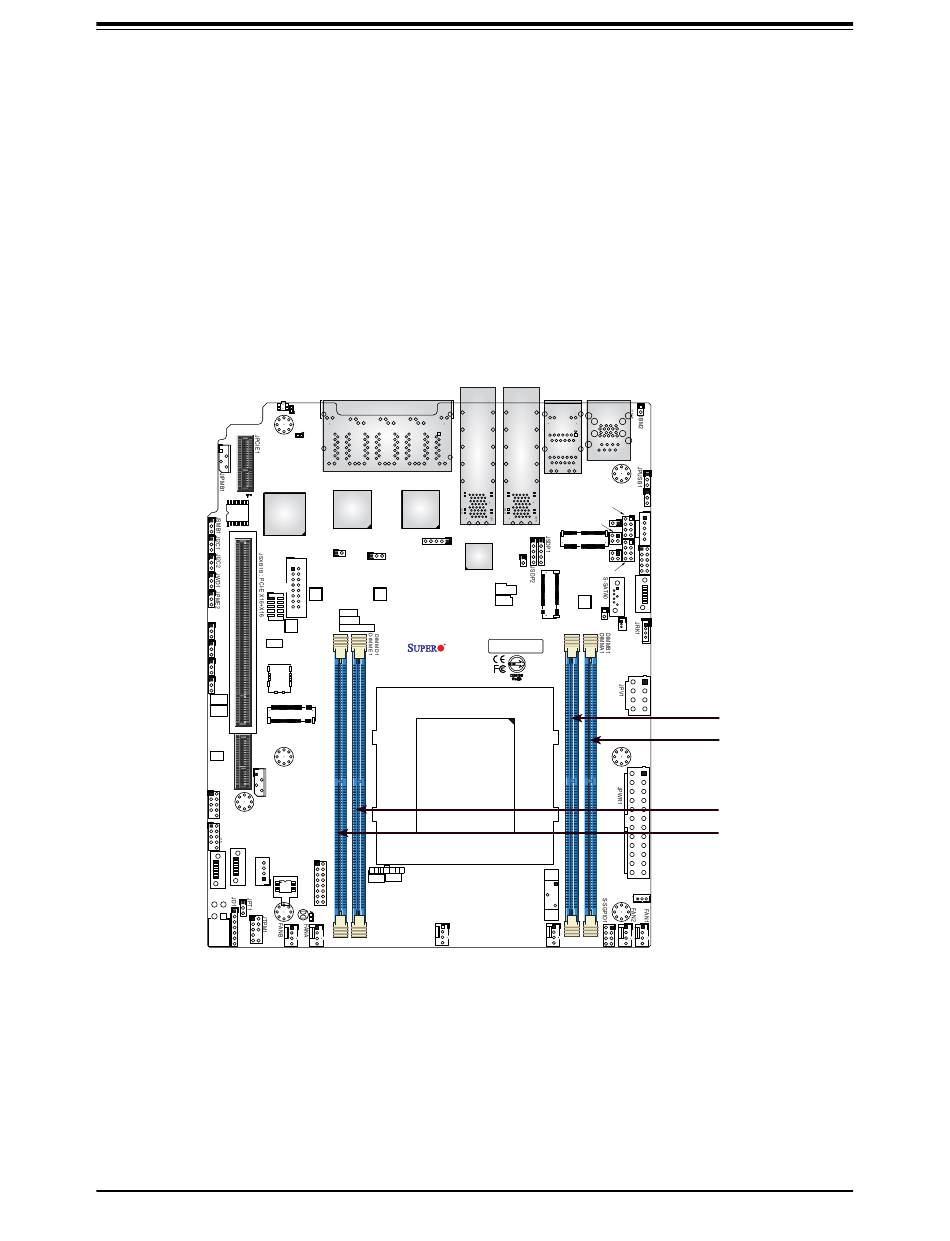

Figure 3-5. DIMM Slots
PCB EDGE
PRESS FIT PRESS FIT
1
COM1
USB 4/5(3.0)
LAN 1
IPMI_LAN
MH3
LEDT1
LEDT8 LEDT5 LEDT4
A A
A
A JPL1
C C C C
JLANLED2
JPI2C1
A A A
A
C
C JLANLED1
C C
JTGLED2
LAN 10/11
LAN 12/13
J2
JMD3:M.2-P
PCI-E 3.0 X1
JTGLED1
JGP1
JLANLED3
JPUSB1:
USB4/5 WAKE UP
1-2:ENABLE
2-3:DISABLE
JPL1:
LAN1
1-2:ENABLE
2-3:DISABLE
JMD3_SRW1
S-SATA1
JMD1:M.2-H
JL1
PCI-E 3.0 X4 / I-SATA4
JSD1
BAR CODE
MH5
BT1
JSTBY1
MH1
FAN3
32
DIMMA1
DIMMB1
DIMMD1
DIMME1
