9.2 Parallel Board Setting and Power Module

9.2.1 Install Power Module of Rack1

1. The parallel board(s) of the Rack 1, the SW2 must be set to the right side, please refer to the

figure 9-2 as below.

Warning:

For the cabinets which can insert more than 5 power modules, there are two parallel boards

inside the cabinet. Both of these two SW2 have to be adjusted simultaneously.

2. Refer to Table 2-1 to set the module address.

9.2.2 Install Power Module of Rack2

1. The parallel board(s) of the Rack 2, the SW2 must be to set the left side, please refer to the

figure 9-3 below.

INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com

Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06

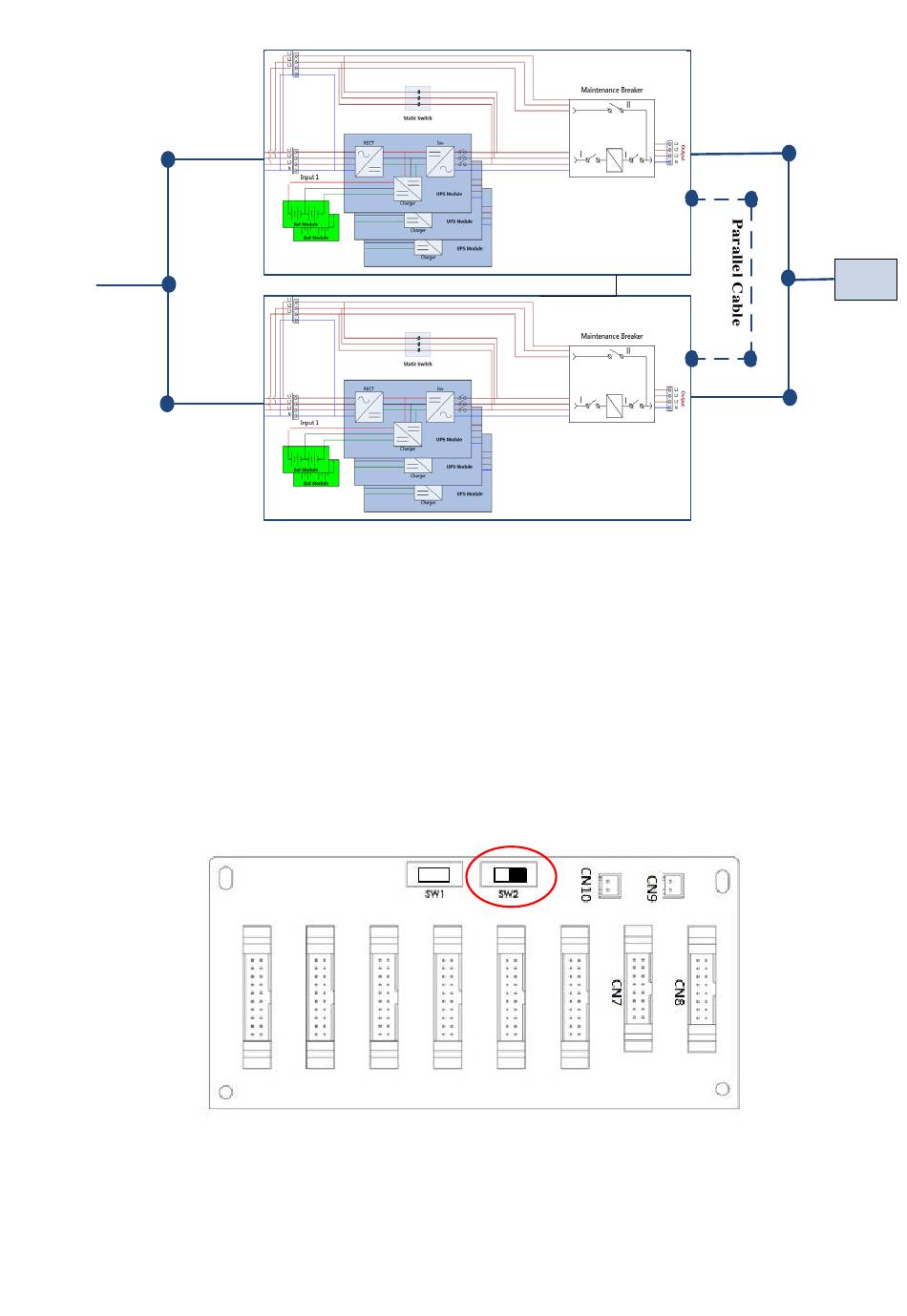

Figure 9-2 Parallel System Wiring - Mod5T 300/30 S

Figure 9-2 Rack 1 SW2 set to the right side

UPS Rack1

UPS Rack2

Load
