Battery setting can be set only when UPS is operating in standby mode. If it's not in standby mode,
the warning screen will appear as shown in Figure 4-23. See Setup-Battery setting list in Table
4-9.
Table 4-9: Setup-Battery setting list
Setting Item Sub Item
Nominal
--
Battery Voltage
Battery
--
Capacity in Ah
Maximum
Charging --
Current
Battery Low
Voltage
Battery Low/ Battery Low
Shutdown Capacity
SETTING
Battery Shutdown
Voltage
Periodic Battery
Test
BATTERY TEST Battery Test
Interval
Stop by Time
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06

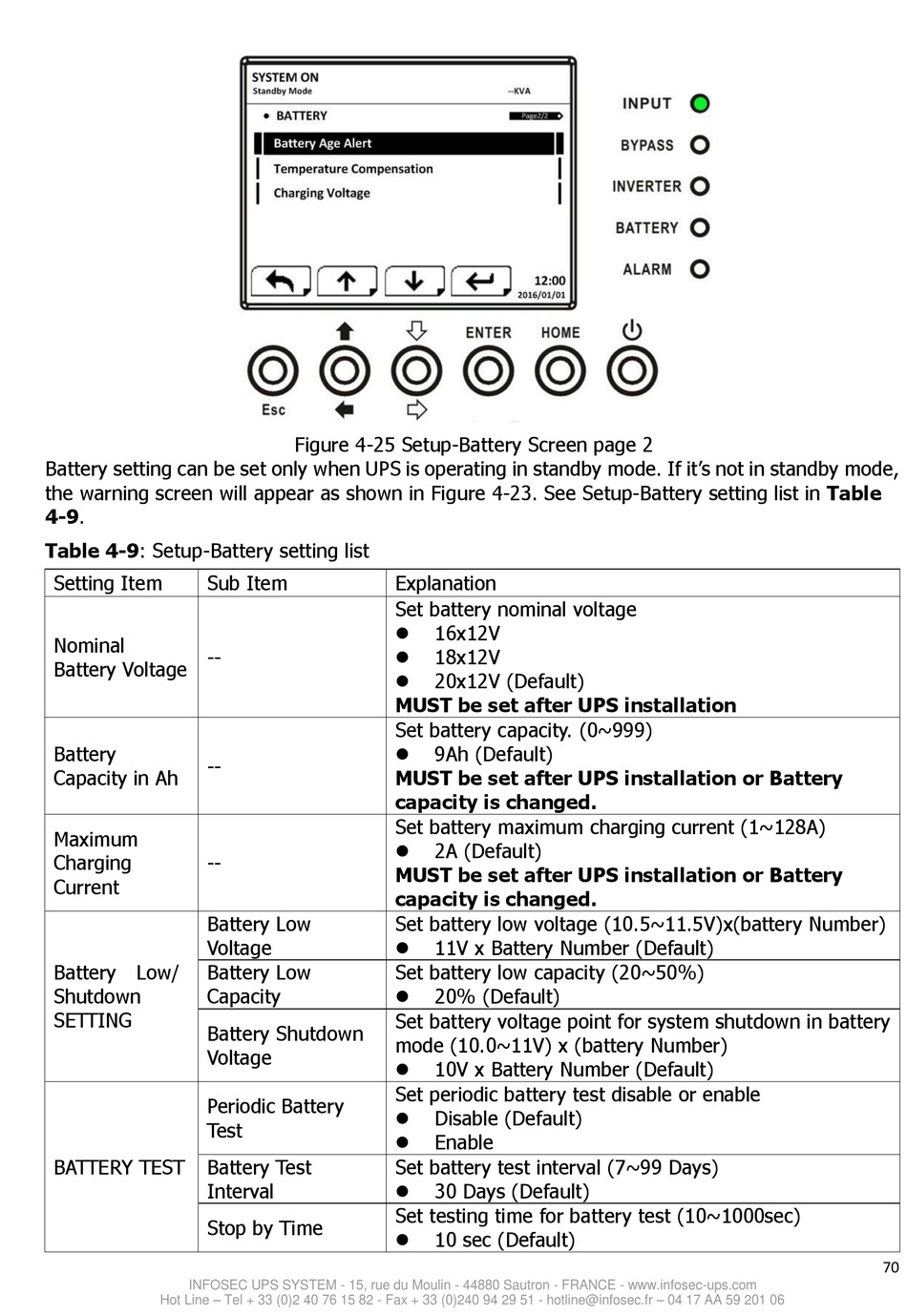

Figure 4-25 Setup-Battery Screen page 2
