2.11.3 External Battery Cabinet Connection

External Battery

Cabinet

+ Battery

- Battery

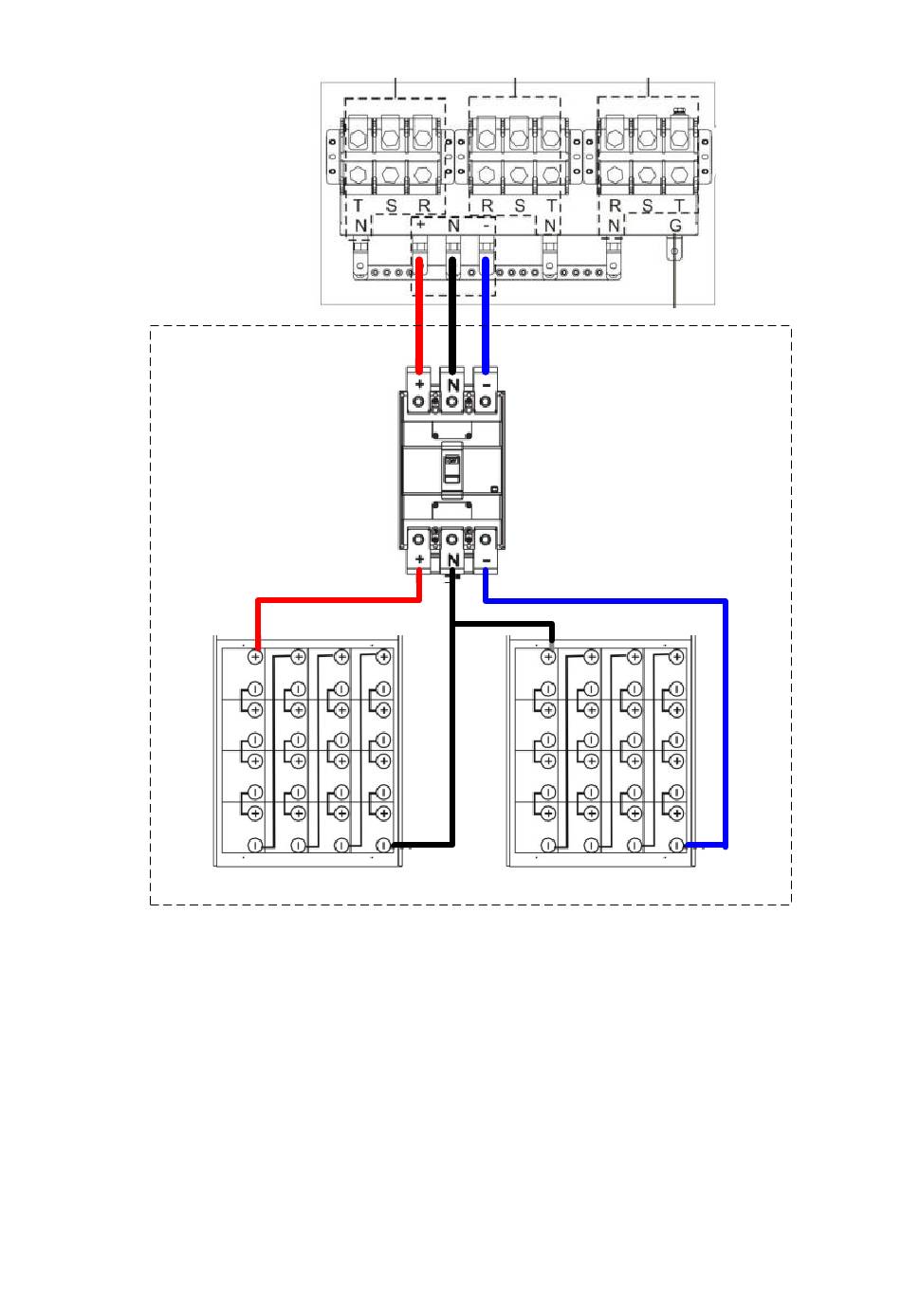

Figure 2-24 External Battery Cabinet Wiring

After the battery is completely installed, be sure to set up nominal battery voltage, battery capacity

and maximum charging current in LCD setting. Otherwise, if battery setting is different from actual

installation, the UPS will keep warning. Please refer to section 4.2.6.3 and Table 4-9 for the

details.
