INFOSEC UPS SYSTEM ModT User Manual page 48

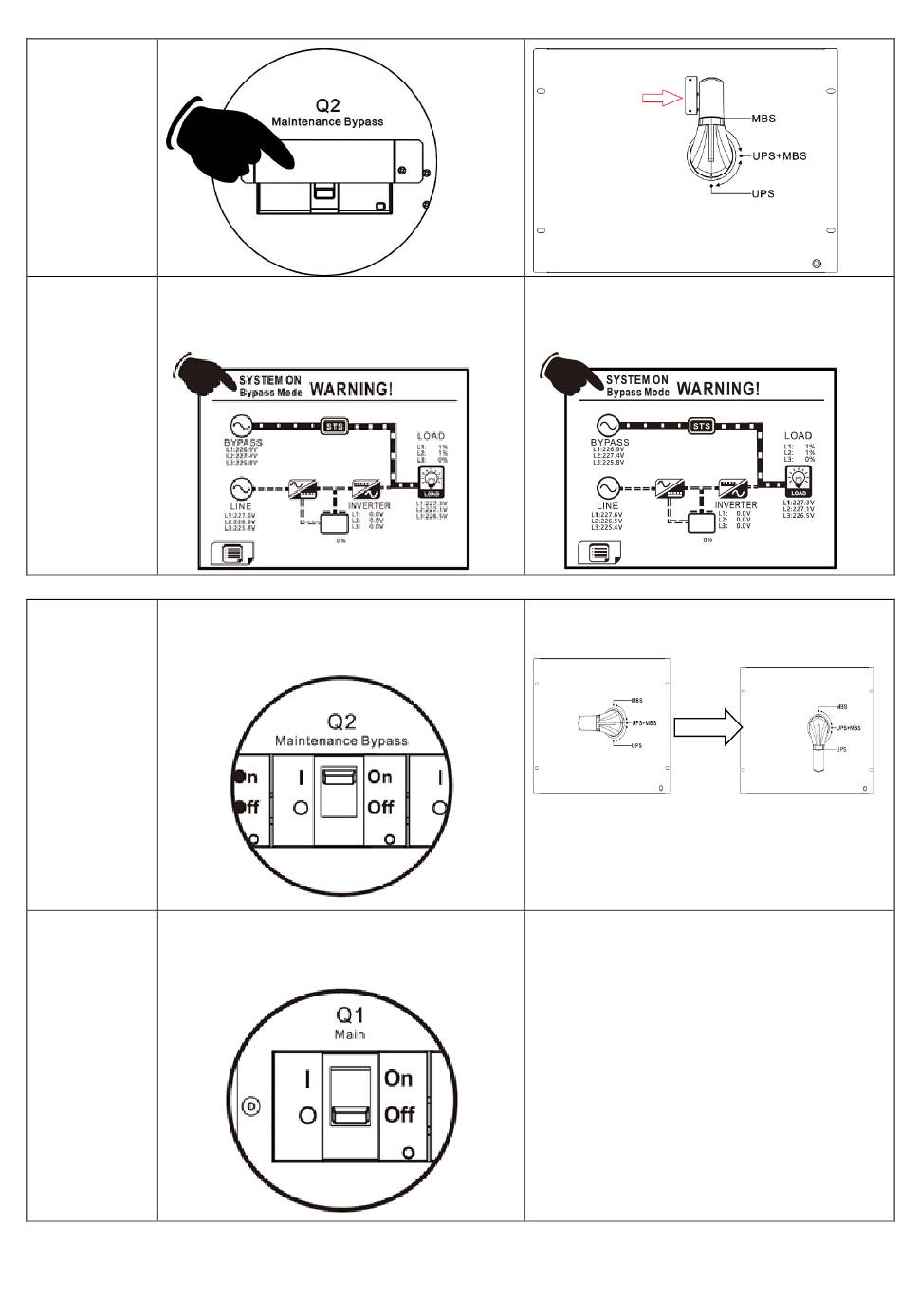

Step 2 Make sure the UPS operates in Bypass
mode as shown below.
Step 3 Switch ON the Maintenance Bypass
Breaker as shown below.
Step 4 Switch OFF the Main Breaker (Q1) and
Output breaker (Q3) as shown below.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Make sure the UPS operates in Bypass
mode as shown below.
Switch the handle toward upside as
shown below.
It is possible to change the STS module,
Power Module.
48
