When the control option is selected by pressing ENTER button, the confirmation screen will pop up.
Use LEFT and RIGHT buttons to choose YES or NO. Choose YES and press ENTER button to
confirm command or choose NO to cancel command, as shown in Figure 4-9.

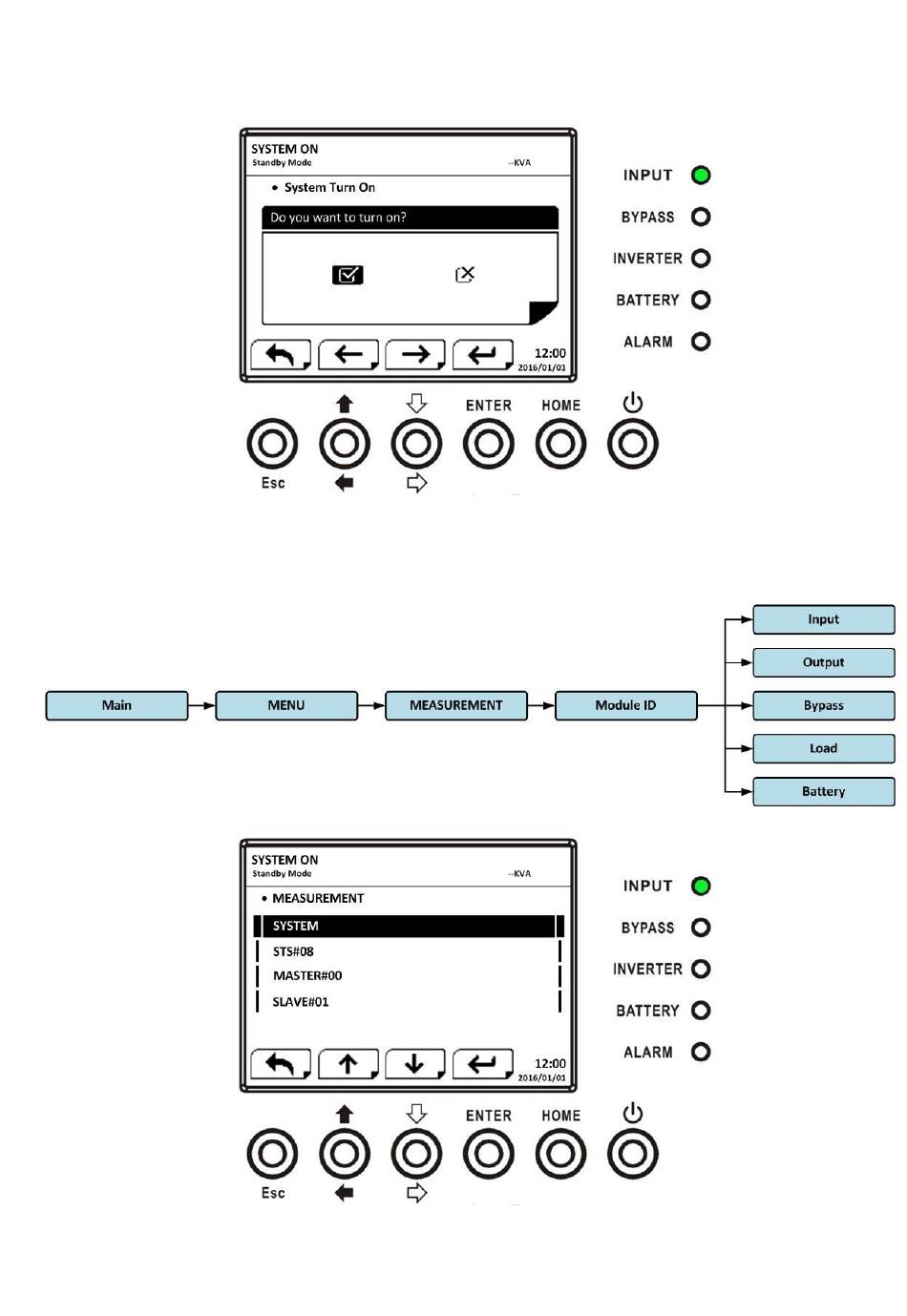

Figure 4-9 Confirmation screen
4.2.5 Measurement Screen
Use UP and DOWN buttons to choose MEASUREMENT option, and press ENTER button to go into
the submenu, as shown in Figure 4-10, 4-11.
Figure 4-10 Measurement menu
Figure 4-11 Measurement Menu Screen
Use UP and DOWN buttons to choose System, STS, Power Module option, and press ENTER button
