3.2.5 ECO Mode
The ECO Mode is enabled through the setting menu of LCD panel. In ECO mode, the load is
powered by bypass when the bypass voltage and frequency are within the acceptable ranges. If
the bypass is out of range, the UPS will transfer the power source of load from bypass to inverter.
In order to shorten the transfer time, the rectifier and inverter are working when the UPS is in ECO
mode.
Mod5T 300/30 S

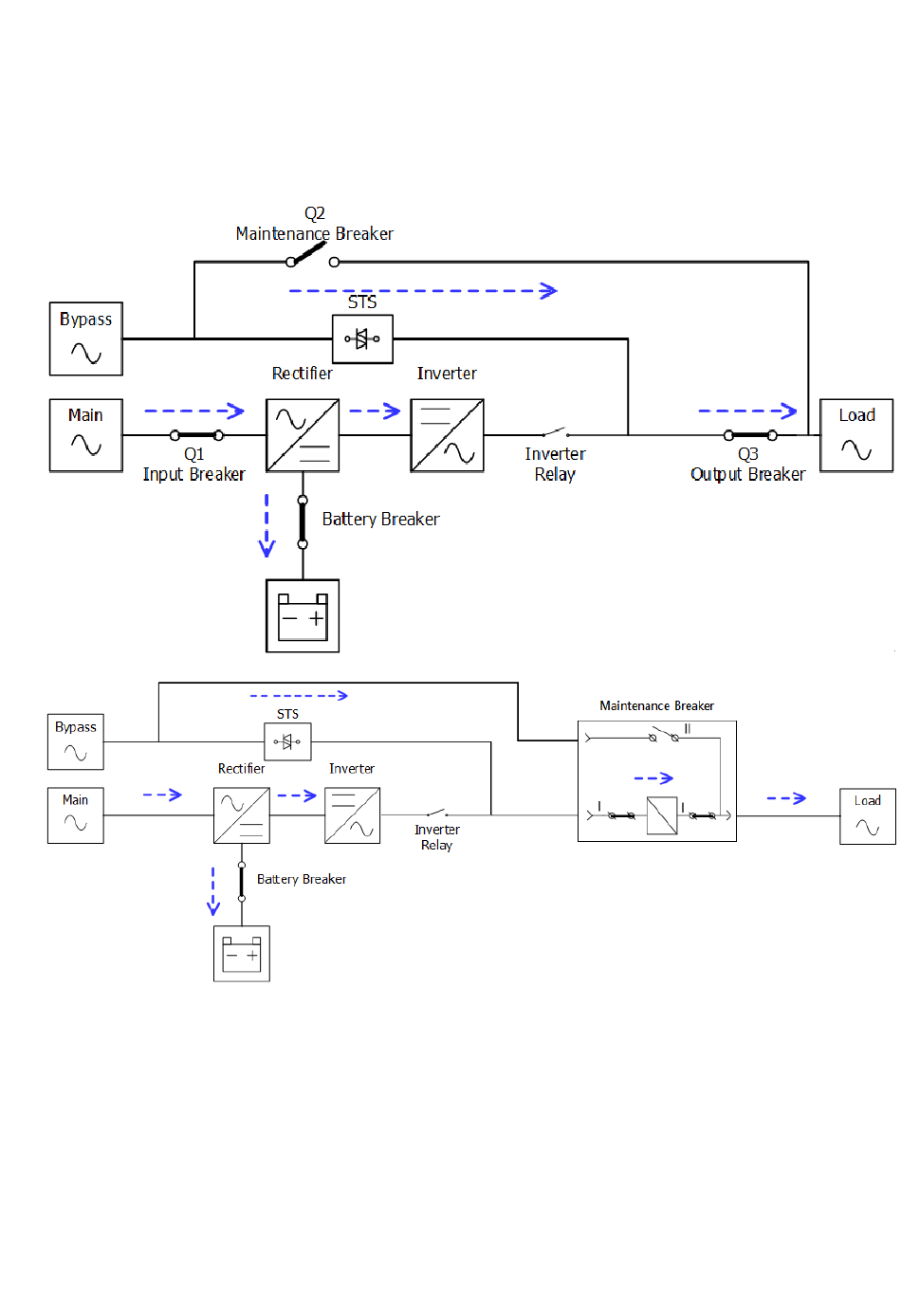

Figure 3-7 : ECO Mode Diagram
