INFOSEC UPS SYSTEM ModT User Manual page 69

Redundancy --
Power
Rating
Setting
Charger Test --

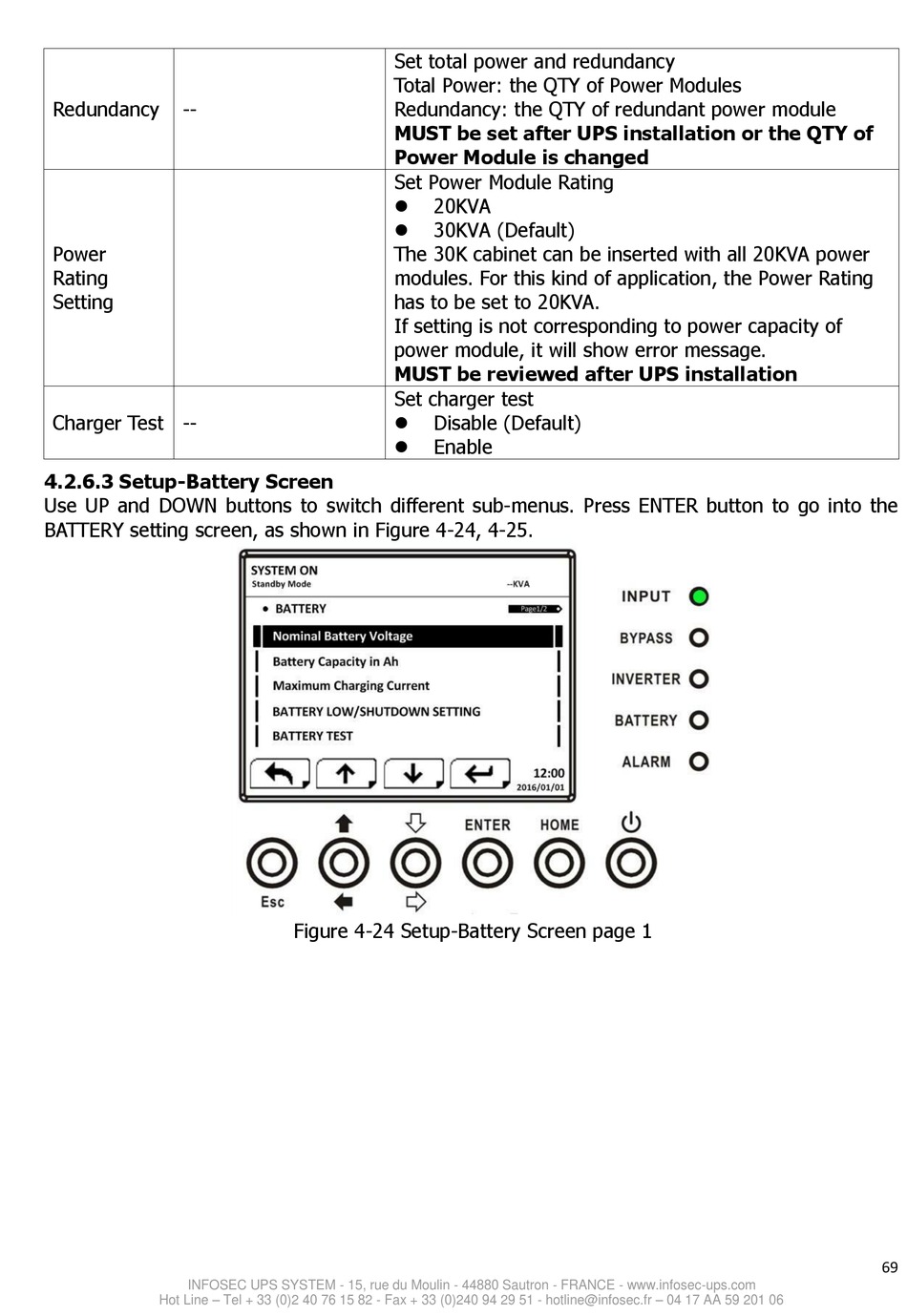

4.2.6.3 Setup-Battery Screen
Use UP and DOWN buttons to switch different sub-menus. Press ENTER button to go into the
BATTERY setting screen, as shown in Figure 4-24, 4-25.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Set total power and redundancy
Total Power: the QTY of Power Modules
Redundancy: the QTY of redundant power module
MUST be set after UPS installation or the QTY of
Power Module is changed
Set Power Module Rating
20KVA

30KVA (Default)

The 30K cabinet can be inserted with all 20KVA power
modules. For this kind of application, the Power Rating
has to be set to 20KVA.
If setting is not corresponding to power capacity of
power module, it will show error message.
MUST be reviewed after UPS installation
Set charger test
Disable (Default)

Enable

Figure 4-24 Setup-Battery Screen page 1
