INFOSEC UPS SYSTEM ModT User Manual page 72

Line
Frequency --
Range
Load --

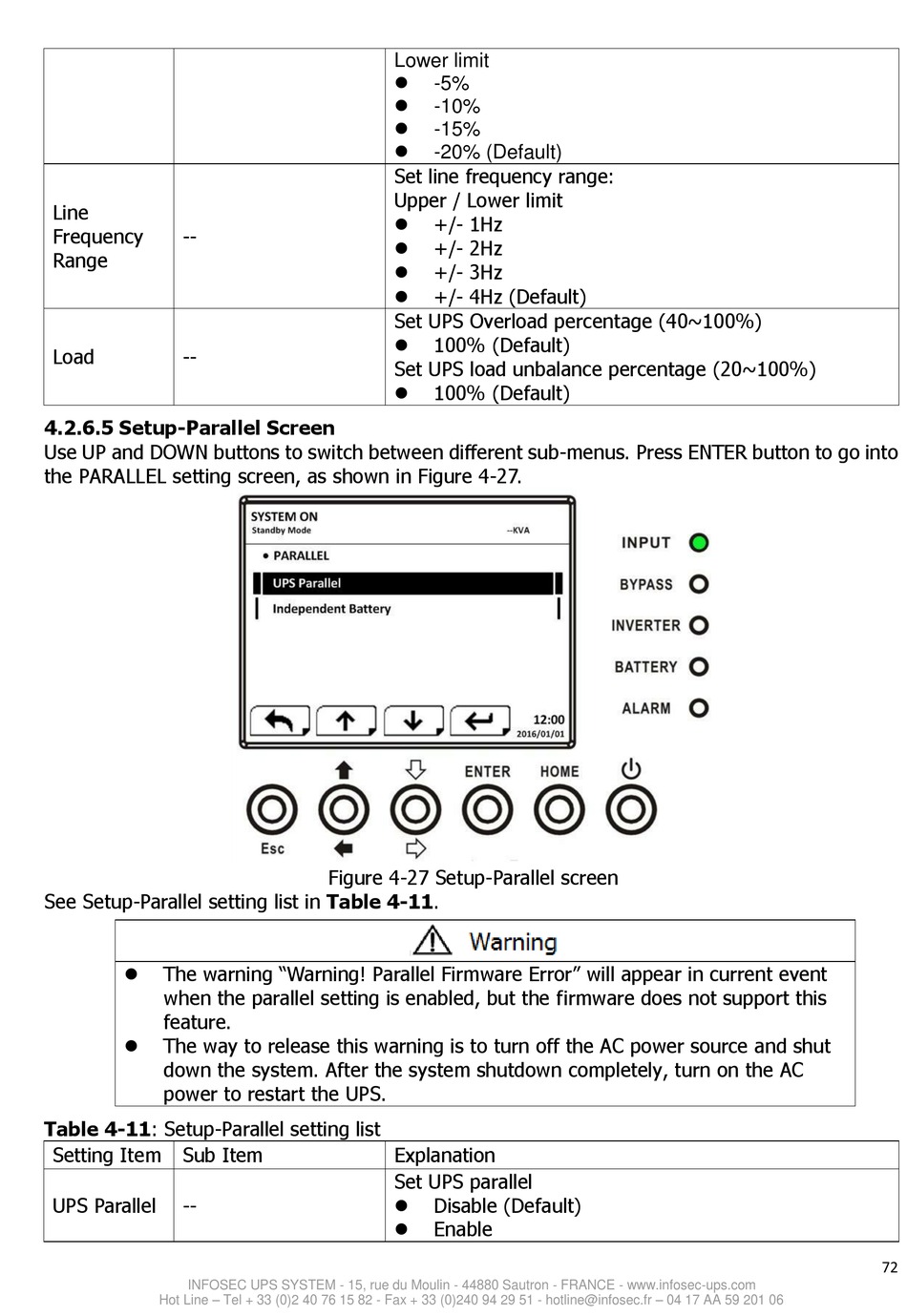

4.2.6.5 Setup-Parallel Screen
Use UP and DOWN buttons to switch between different sub-menus. Press ENTER button to go into
the PARALLEL setting screen, as shown in Figure 4-27.
See Setup-Parallel setting list in Table 4-11.
The warning "Warning! Parallel Firmware Error" will appear in current event

when the parallel setting is enabled, but the firmware does not support this
feature.
The way to release this warning is to turn off the AC power source and shut

down the system. After the system shutdown completely, turn on the AC
power to restart the UPS.
Table 4-11: Setup-Parallel setting list
Setting Item Sub Item
UPS Parallel --
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Lower limit

-5%

-10%

-15%

-20% (Default)
Set line frequency range:
Upper / Lower limit
+/- 1Hz

+/- 2Hz

+/- 3Hz

+/- 4Hz (Default)

Set UPS Overload percentage (40~100%)
100% (Default)

Set UPS load unbalance percentage (20~100%)
100% (Default)

Figure 4-27 Setup-Parallel screen
Explanation
Set UPS parallel
Disable (Default)

Enable

