INFOSEC UPS SYSTEM ModT User Manual page 51

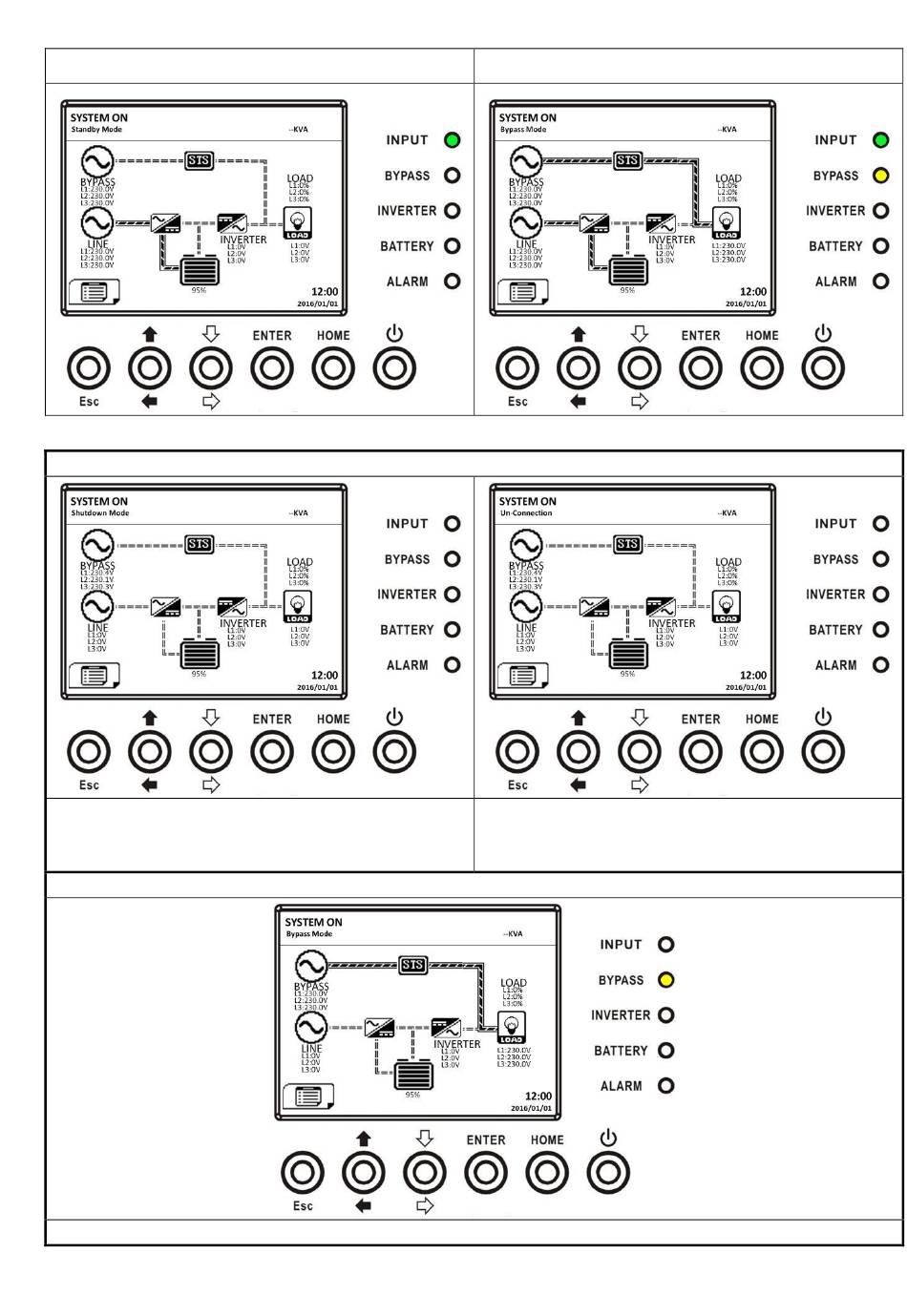

Bypass Mode Setting is Disabled Bypass Mode Setting is Enabled
Step 1: Switch OFF the Main Breaker. The LCD diagrams are shown below.
Bypass Mode Setting is Disabled
It is normal the Un-Connection is shown when
UPS enters Shutdown Mode. Power Modules have shut off their control
power.
Bypass Mode Setting is Enabled
UPS stay in Bypass mode and No AC input is indicated.
51
