2.12 Power Module Installation

The weight of Power Module is over 30Kg so at least two persons are required for

handling.

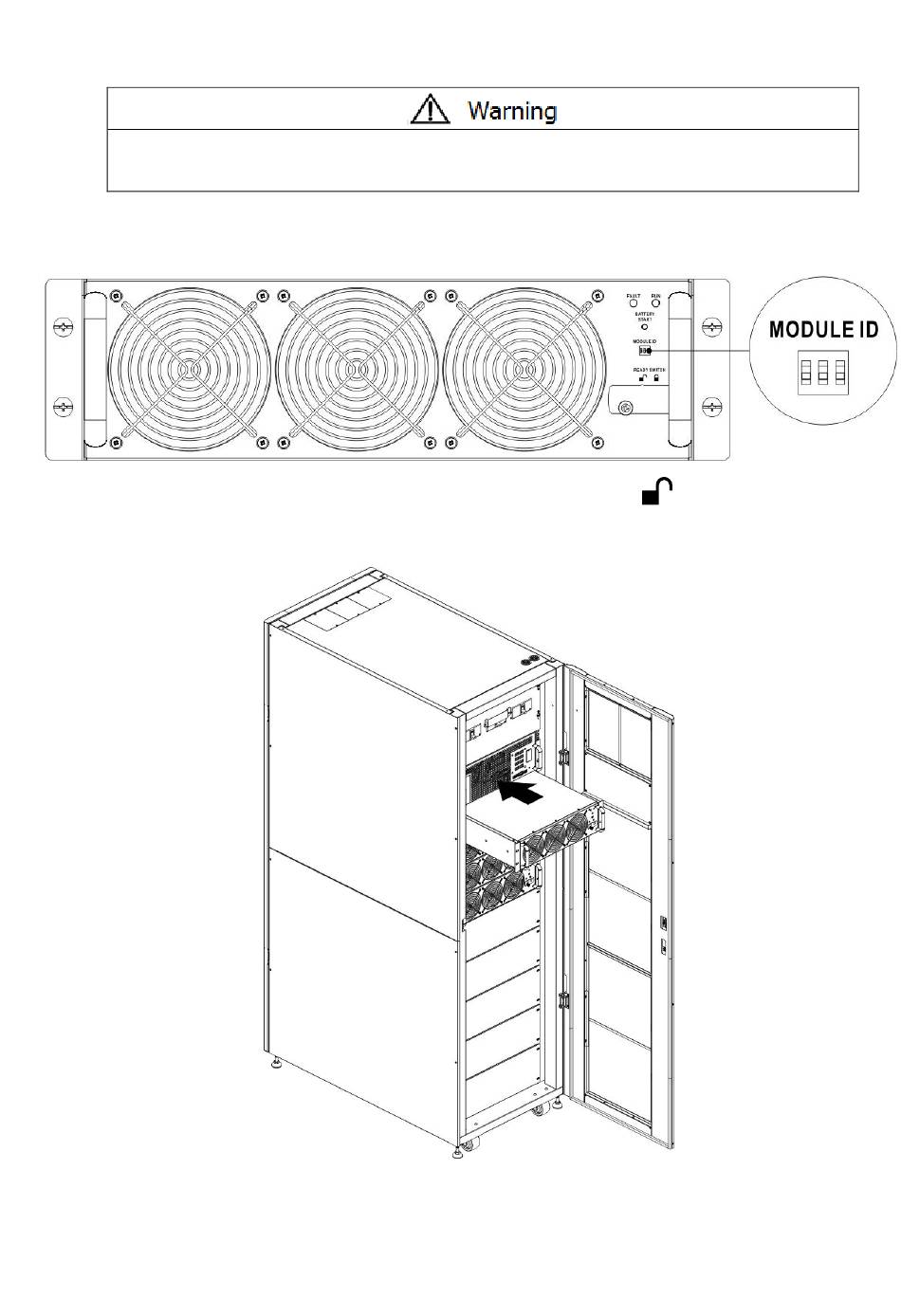

2.12.1 Insert the Power Module

(1.) Adjust the DIP switch positions to set the different Module Address. Refer to Table 2-1.

(2.) Place the ready switch on the front panel of the module to the "

state).

(3.) Insert the Power Module into an unoccupied slot by two persons.
