INFOSEC UPS SYSTEM ModT User Manual page 73

Independent
--
Battery

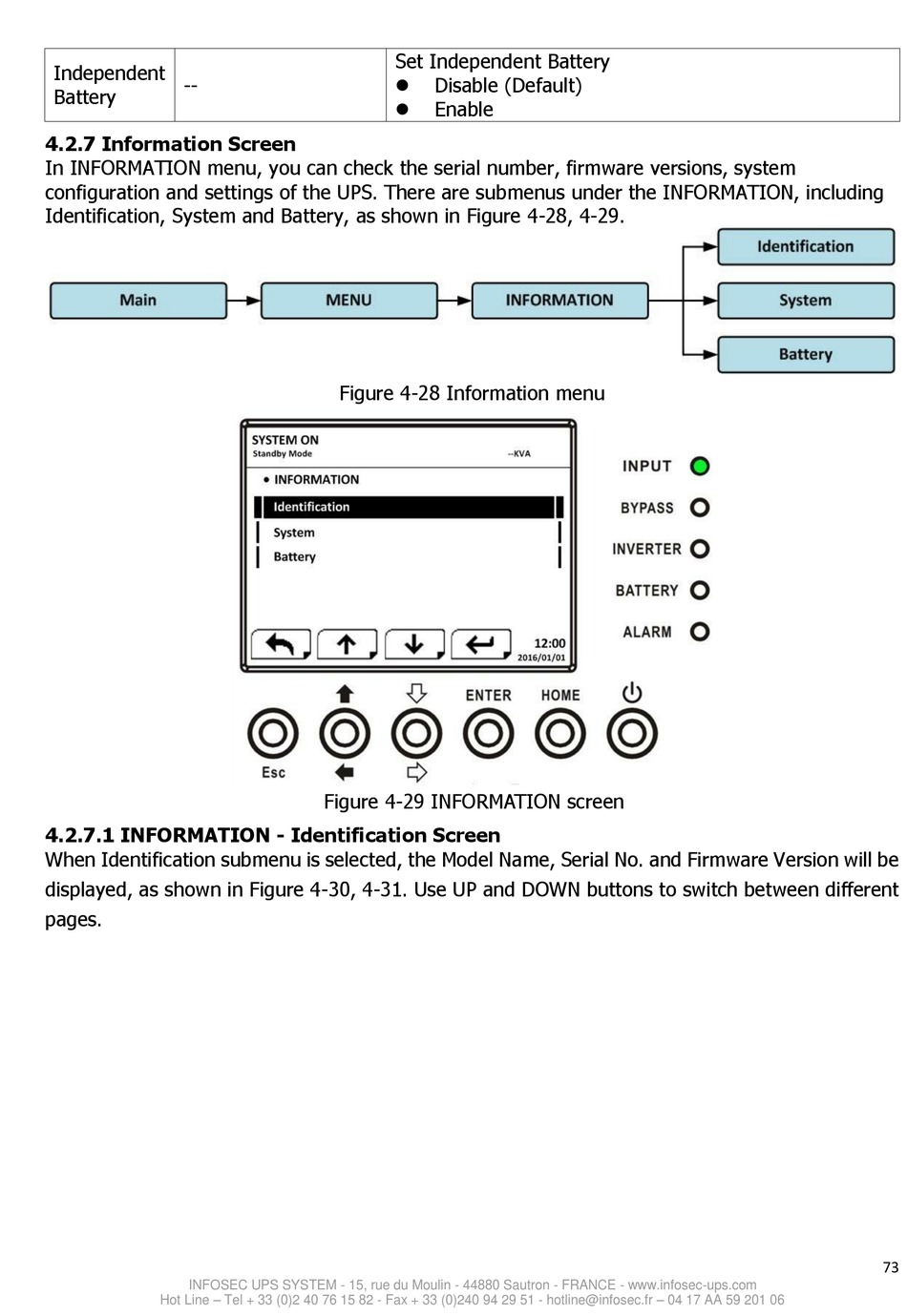

4.2.7 Information Screen
In INFORMATION menu, you can check the serial number, firmware versions, system
configuration and settings of the UPS. There are submenus under the INFORMATION, including
Identification, System and Battery, as shown in Figure 4-28, 4-29.
4.2.7.1 INFORMATION - Identification Screen
When Identification submenu is selected, the Model Name, Serial No. and Firmware Version will be
displayed, as shown in Figure 4-30, 4-31. Use UP and DOWN buttons to switch between different
pages.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Set Independent Battery
Disable (Default)

Enable

Figure 4-28 Information menu
Figure 4-29 INFORMATION screen
73
