INFOSEC UPS SYSTEM ModT User Manual page 50

Step 3 Please enter LCD SETUP MENU and
choose "SYSTEM" to ensure that the
"Bypass mode" is enabled. If the
"Bypass mode" is disabled, you have
to set it enabled. Then, exit the SETUP
menu and check if the UPS operates in
bypass mode.

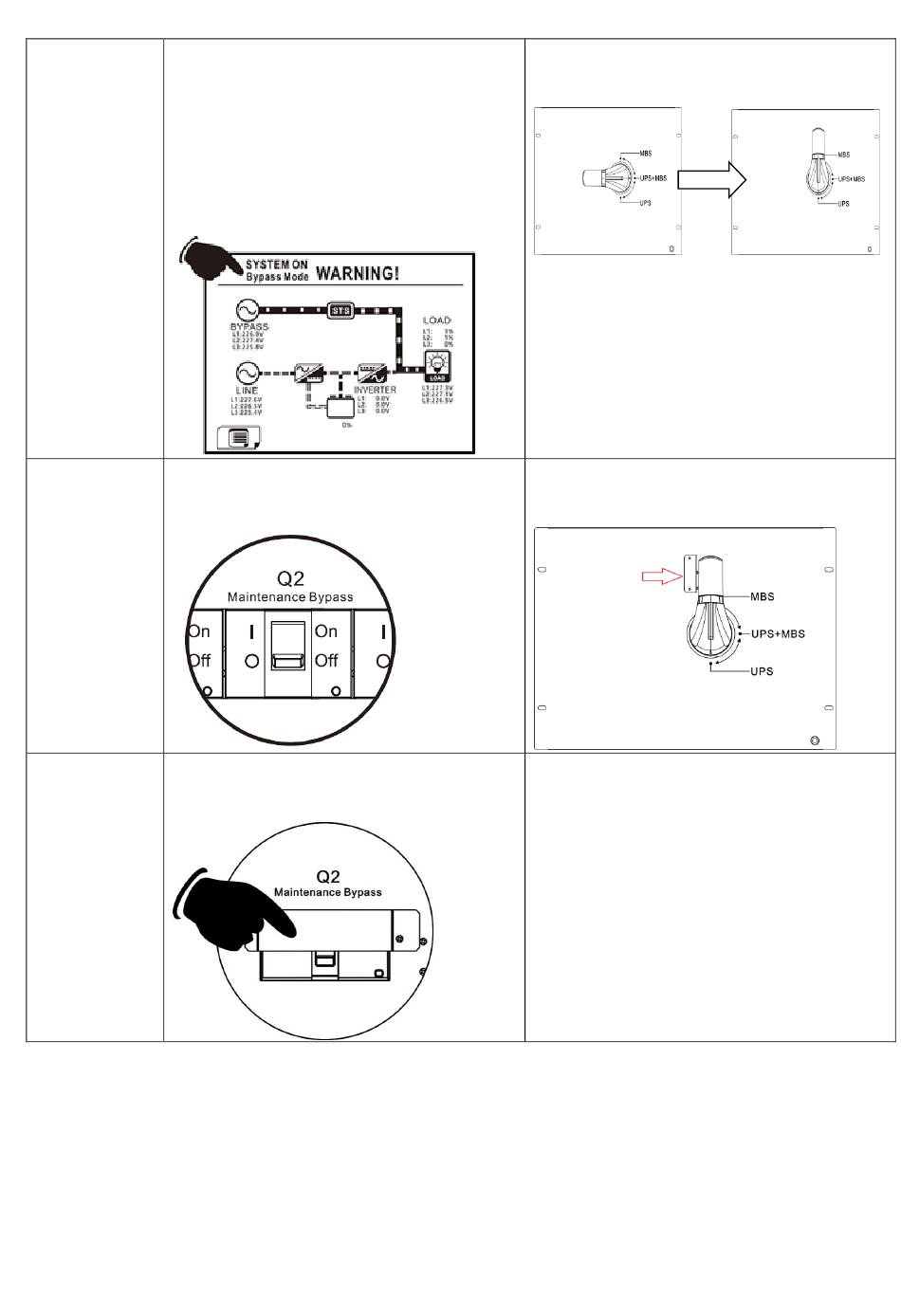

Step 4 Turn off Maintenance Bypass Breaker
as shown below.
Step 5 Lock back the mechanical lock plate as
shown below.
3.3.4 Turn off Operation
3.3.4.1 Bypass Mode/ Standby Mode Turn Off Operation
When the UPS neither is turned on nor turned off, the UPS operates in the Standby Mode or Bypass
Mode. It depends on the "Bypass Mode" Setting.
The LCD diagrams are shown below.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Switch the handle toward downside as
shown below.
Lock back the mechanical lock plate as
shown below.
50
