3.2.2 Line Mode
In Line Mode, the rectifier derives power from the utility power and supplies DC power to the
inverter and the charger charges the battery. The inverter filters the DC power and converts it into
pure and stable AC power to the load.
Mod5T 300/30 S

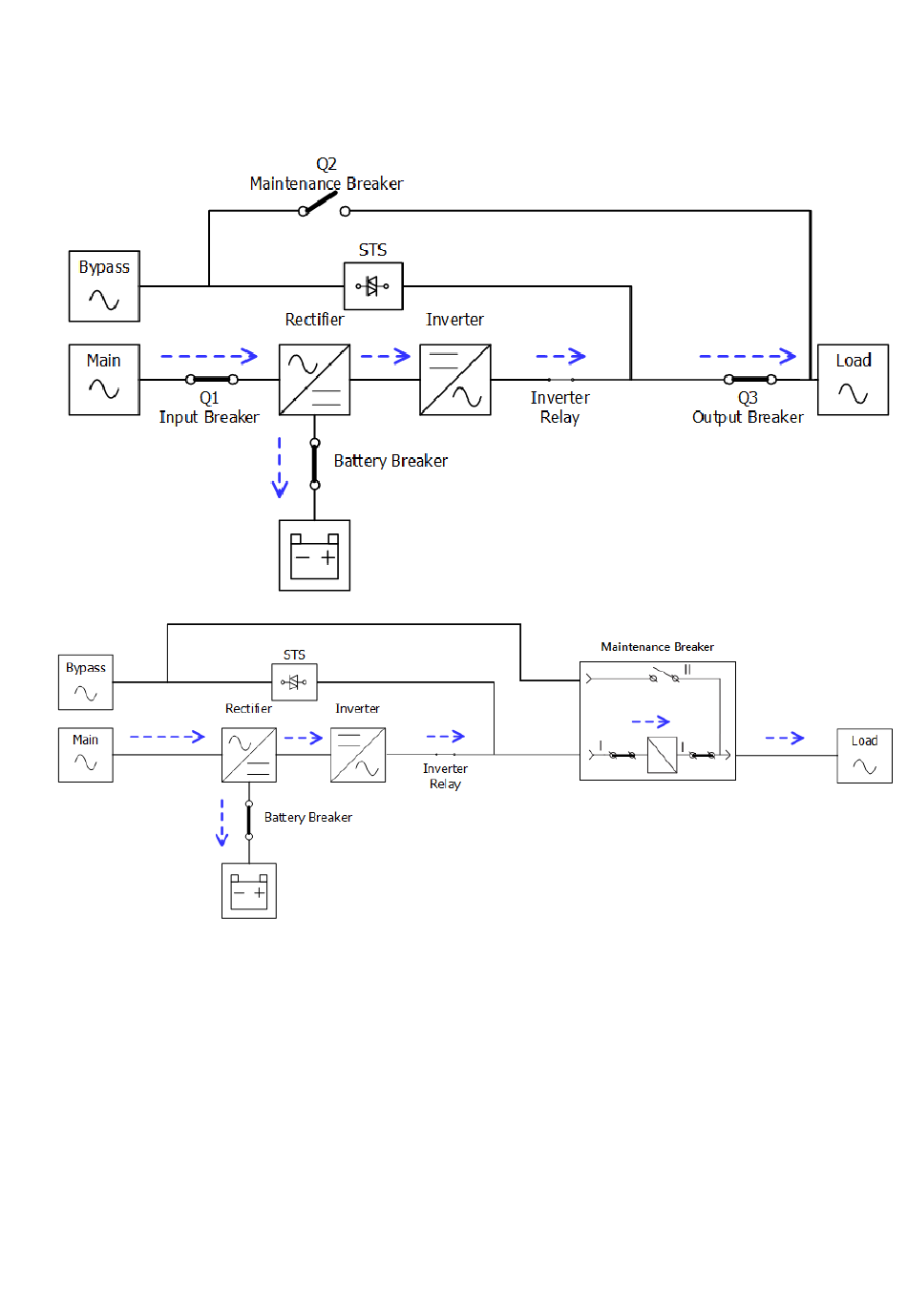

Figure 3-4 : Line Mode Diagram
