2.6 Exterior

In the front of the UPS, there are control interface (LCD Panel) and door lock.
The side panels are lockable. The casters at the bottom of the UPS cabinet can be used to move
over short distances. There are four leveling feet to fix and stabilize the UPS cabinet on the ground.
Refer to Figure 2-7.
Inside the cabinet, there are Breakers, STS Module, Power Module slots and Battery module slots
(Battery Module Slots is only for standard series). All wiring terminal blocks are located in the back
of cabinet.

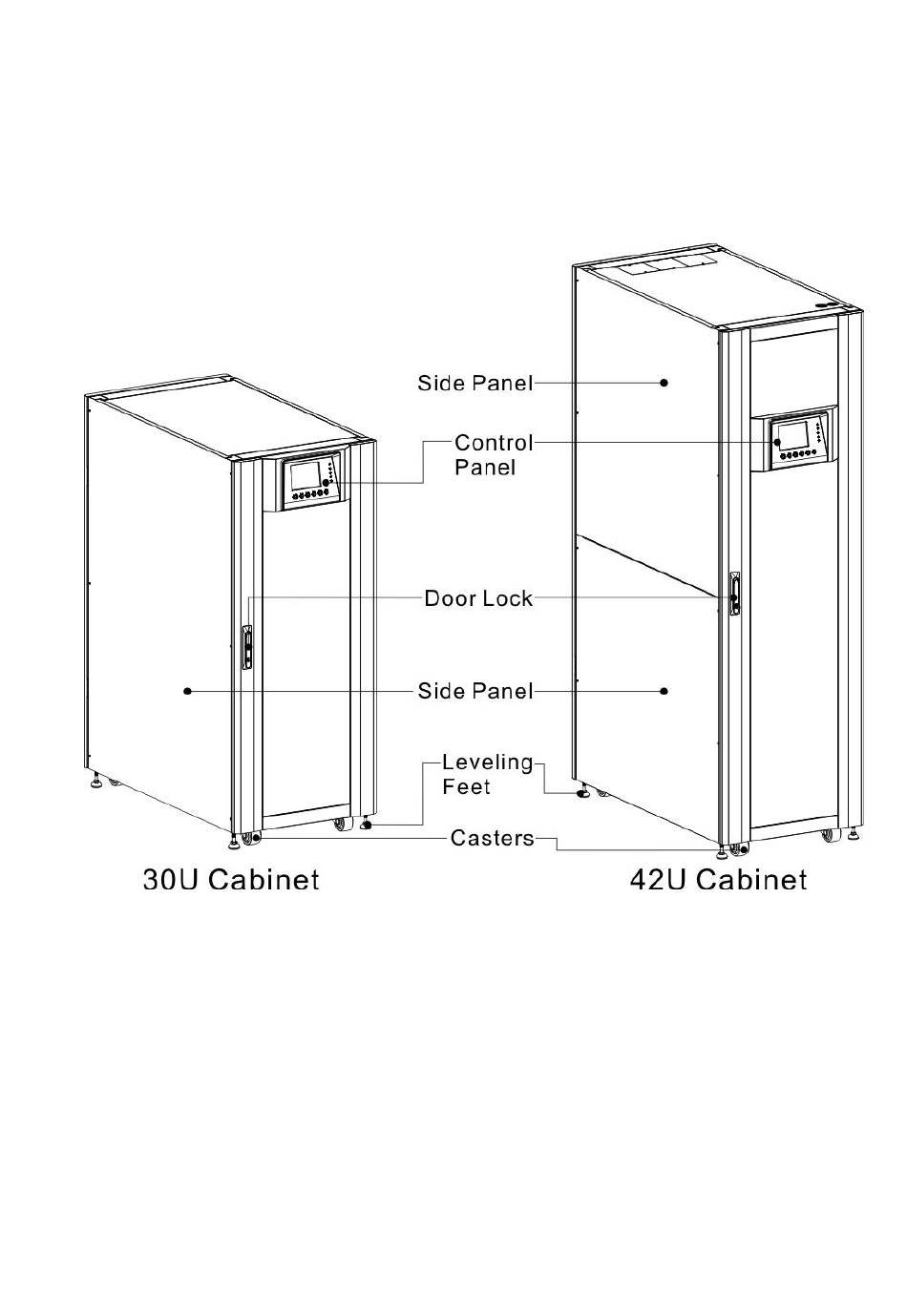

Figure 2-7 Exterior
