3.2.6 Shutdown Mode
When the UPS is in the off state and the utility power source is absent, the UPS will enter into
shutdown mode.
Or when the UPS has discharged the battery to the cut-off level, the UPS will enter into shutdown
mode as well.
When the UPS enters this mode, it is going to shut off the control power of UPS. The rectifier,
charger and inverter are all in off state.
Mod5T 300/30 S

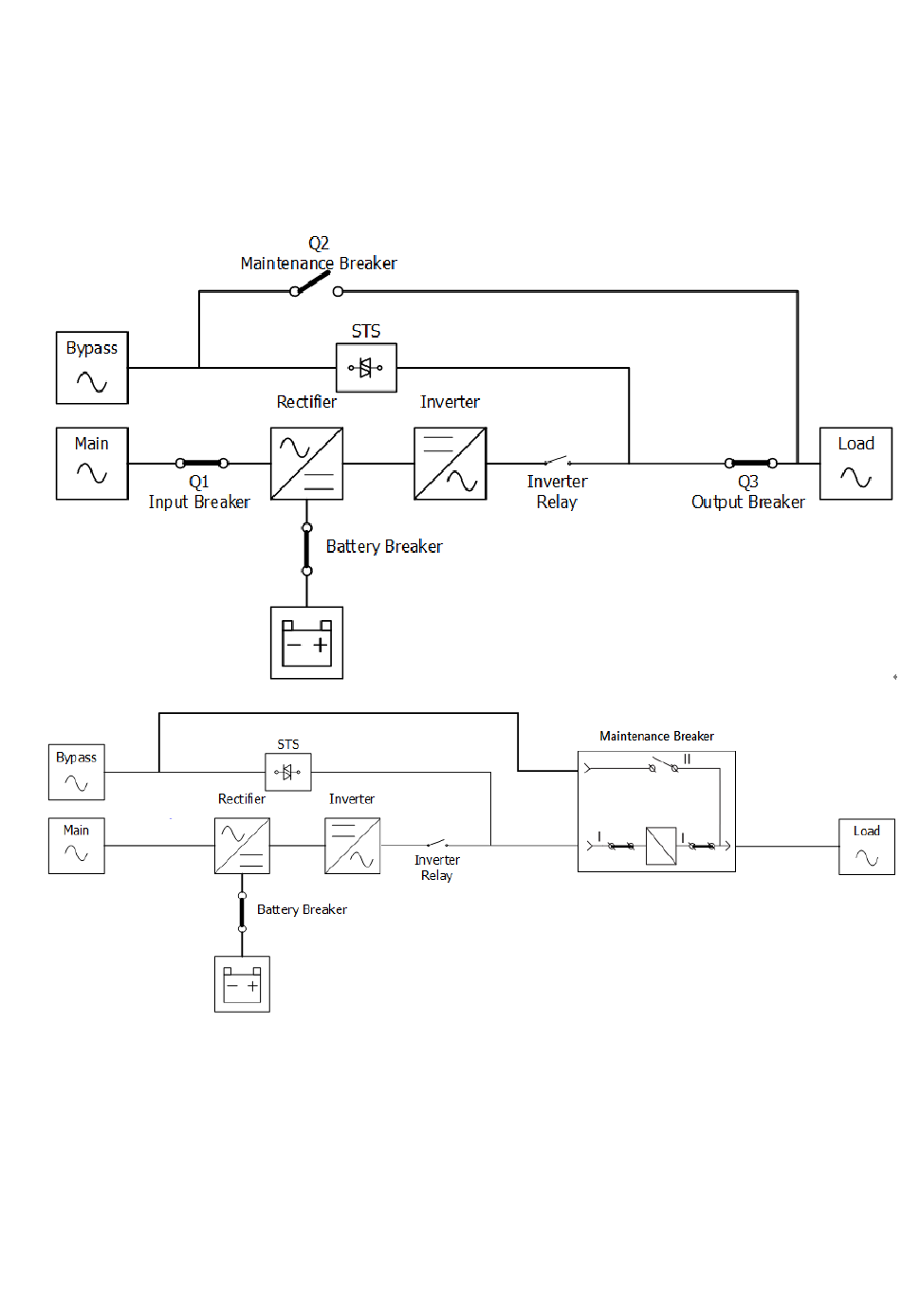

Figure 3-8 : Shutdown Mode Diagram
