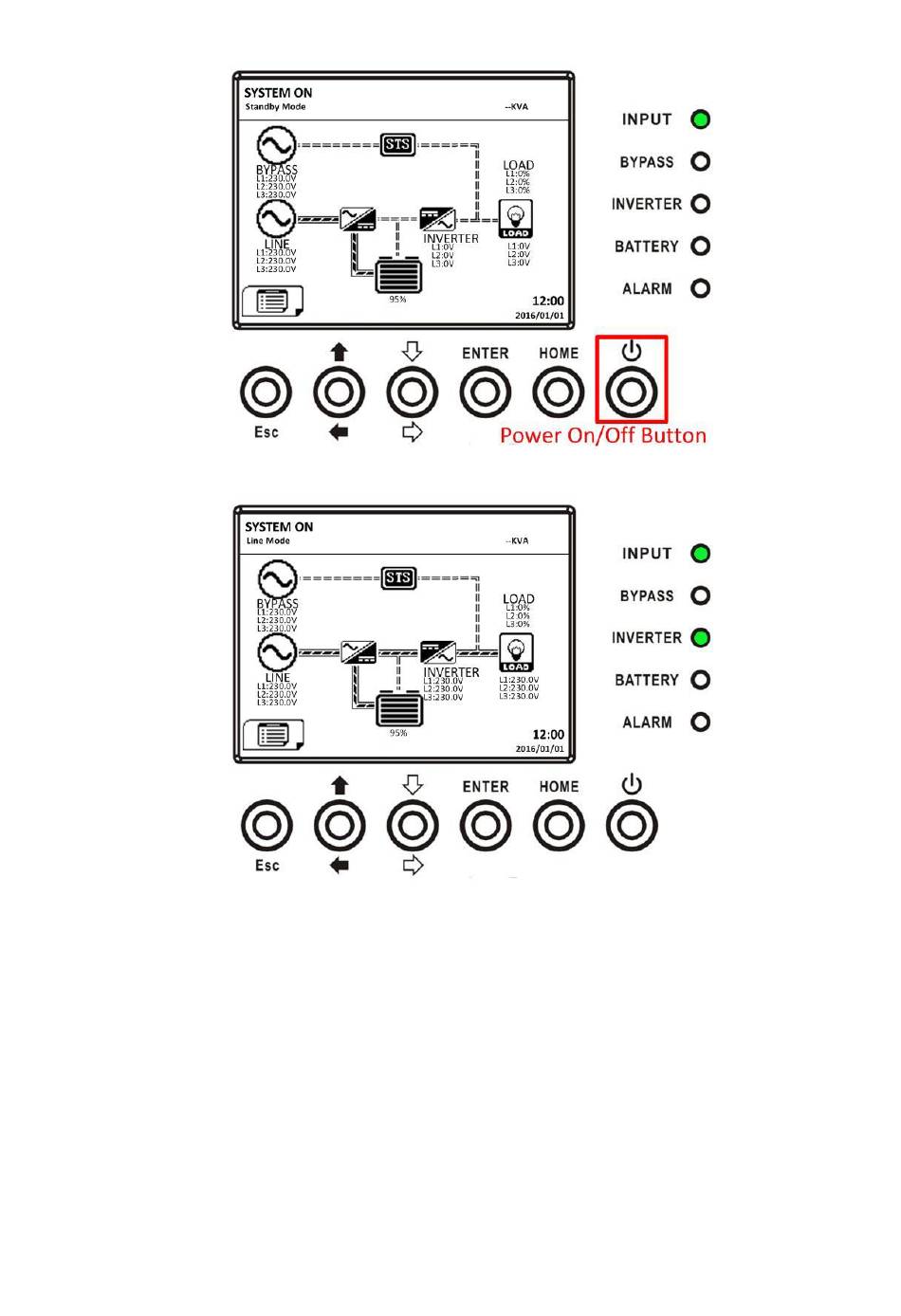

Step 6: Press Power ON/OFF button for two seconds to enter into Line Mode as shown below.
After turning on, UPS will do self-test and start Inverter up. UPS will be transferred to Line mode
when all power modules are ready.
Step 7: Switch ON the output breaker (Q3). AC startup procedure is complete.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
45
