INFOSEC UPS SYSTEM ModT User Manual page 76

4.2.7.2 INFORMATION - Battery Screen

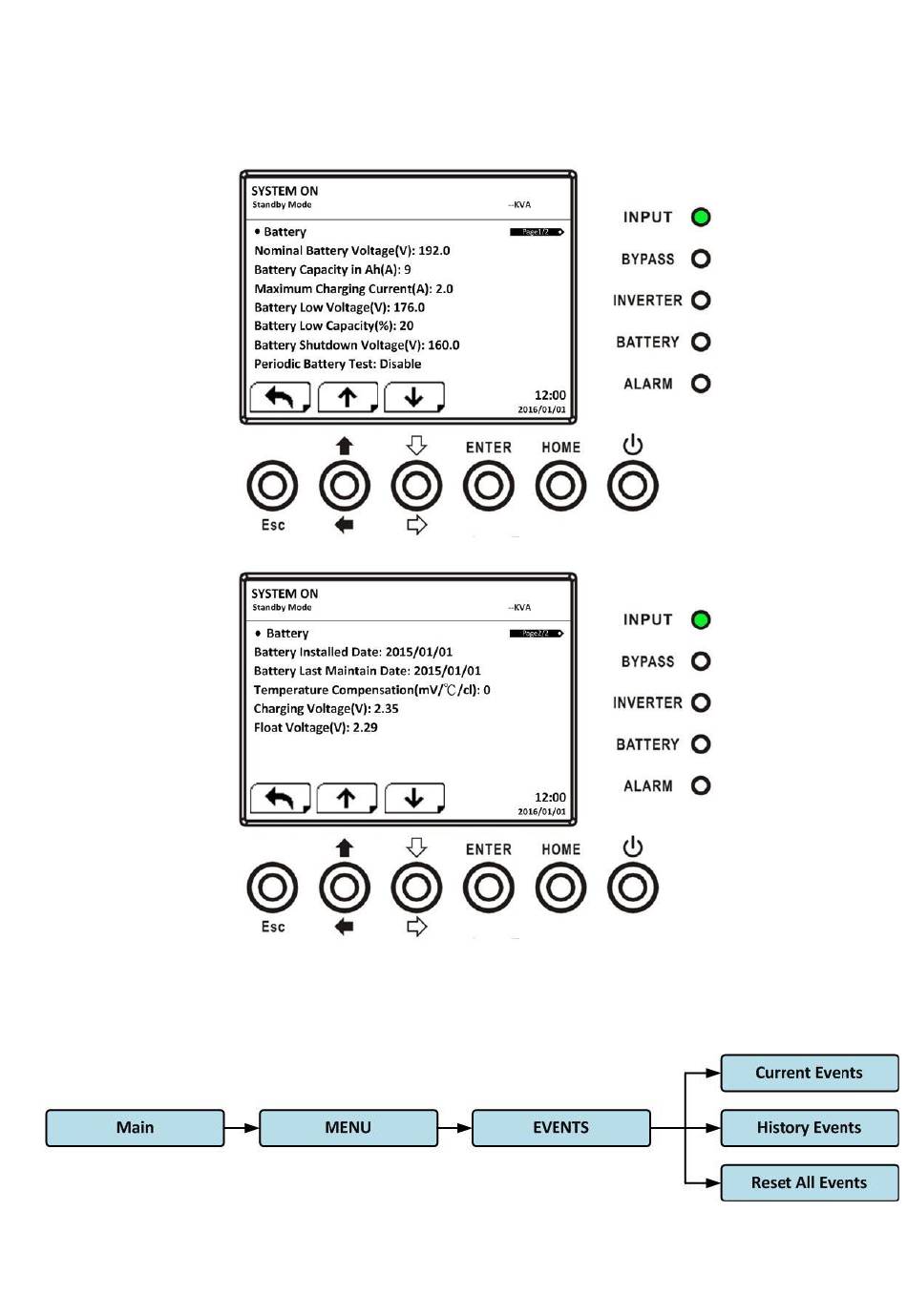

When Battery submenu is selected, the Battery nominal voltage, capacity, charging current ... etc.
information will be displayed, as shown in Figure 4-35, 4-36. Use UP and DOWN buttons to switch
different pages.
4.2.8 Events Screen
In EVENT menu, you can check the current events, history events and reset all events, as shown in
Figure 4-37, 4-38.
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Figure 4-35 INFORMATION Battery screen page 1
Figure 4-36 INFORMATION Battery screen page 2
Figure 4-37 Events menu
