System setting can be set only when UPS is operating in certain mode. Please check available
setting item in Table 4-5 for the details. If it's not set up in specific mode, the warning screen will
appear, as shown in Figure 4-23.
Setup-System setting list is shown in Table 4-8.
Table 4-8: Setup-System setting list
Setting Item Sub Item
Output
--
Voltage
BYPASS
Bypass Voltage Range
SETTING
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06

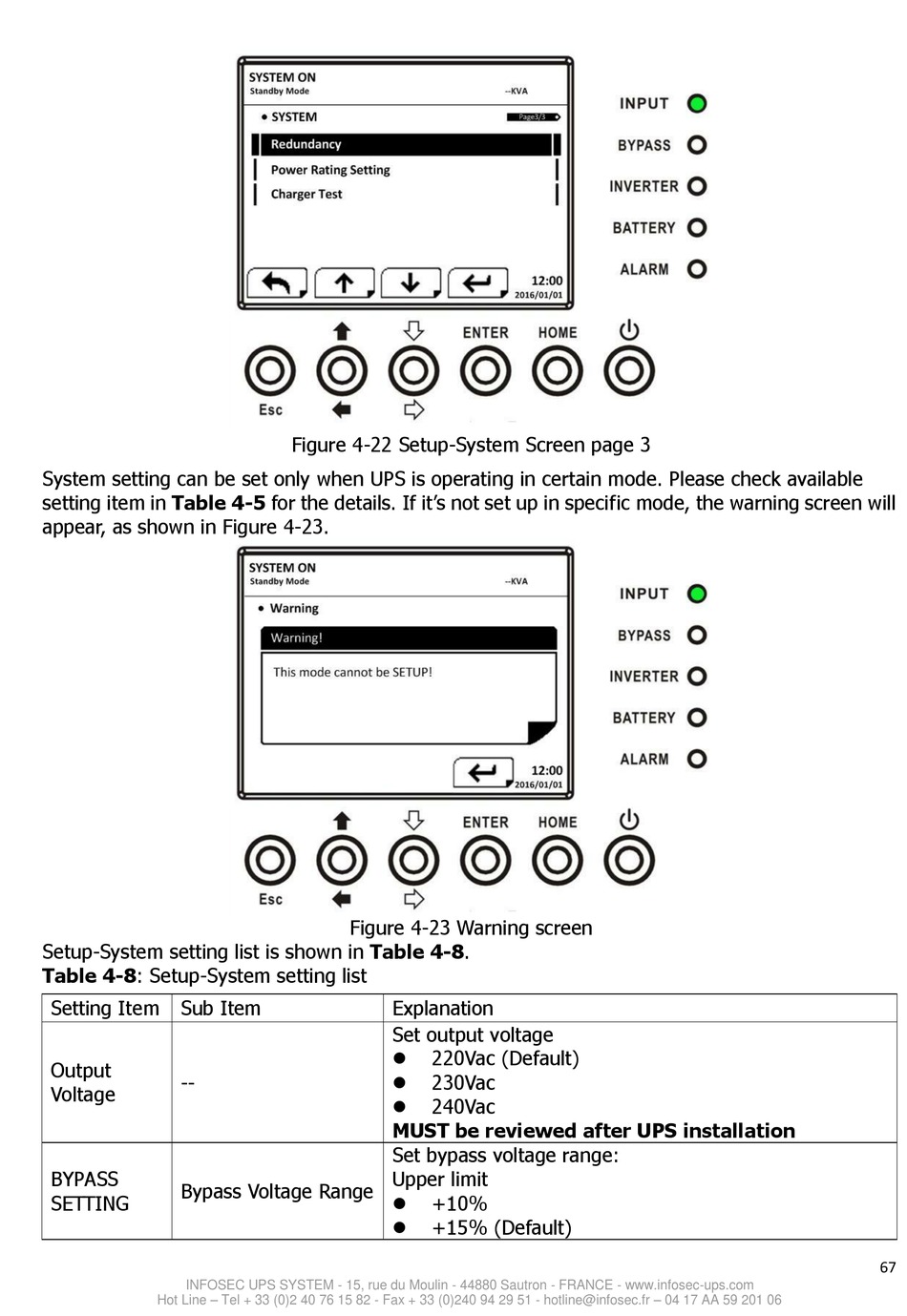

Figure 4-22 Setup-System Screen page 3
Figure 4-23 Warning screen
Explanation
Set output voltage
220Vac (Default)

230Vac

240Vac

MUST be reviewed after UPS installation
Set bypass voltage range:
Upper limit
+10%

+15% (Default)

67
