Table 4-2: Function Keys
Control Key
Esc
 (Up)  (Left)
 
(Down) (Right)
Enter
Home
Power On/Off
Table 4-3: Audible Alarm
Audio Type
Power on/off
Battery mode
Low battery
UPS alarm
UPS fault

4.2 Screen Description

4.2.1 Start Screen
Upon starting, the UPS executes self-test. The initial screen displays and remains still in
approximately 5 seconds as shown in Figure 4-2.
4.2.2 Main Screen
After initialization, the main screen will display as Figure 4-3. Main screen is divided into five parts.
(1) UPS Mode: Current Operation Mode.
(2) UPS Flow Chart: Current flow chart and measurement data.
(3) Menu: Press ESC button to enter Menu screen.
(4) UPS model name with power rating. If the power rating followed with (R) means the UPS
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Description
When screen is in Main screen, it will enter into main menu by

pressing ESC key.
Return to previous screen, when screen is not in Main screen.

Return to previous value in the same row, so you can change it.

For example, when changing 4-digit password, press "Esc" to
allow cursor back to previous digit.
Key for menu page navigation or digit modification.
Key for menu page navigation or digit modification.
Confirmation of commands, or cursor displacement.
Return to Main screen.
Turn on UPS or Turn off UPS.
Description
Buzzer sounds two seconds.
Buzzer sounds every 2 seconds.
Buzzer sounds every half seconds.
Buzzer sounds every 1 second.
Buzzer continuously sounds.

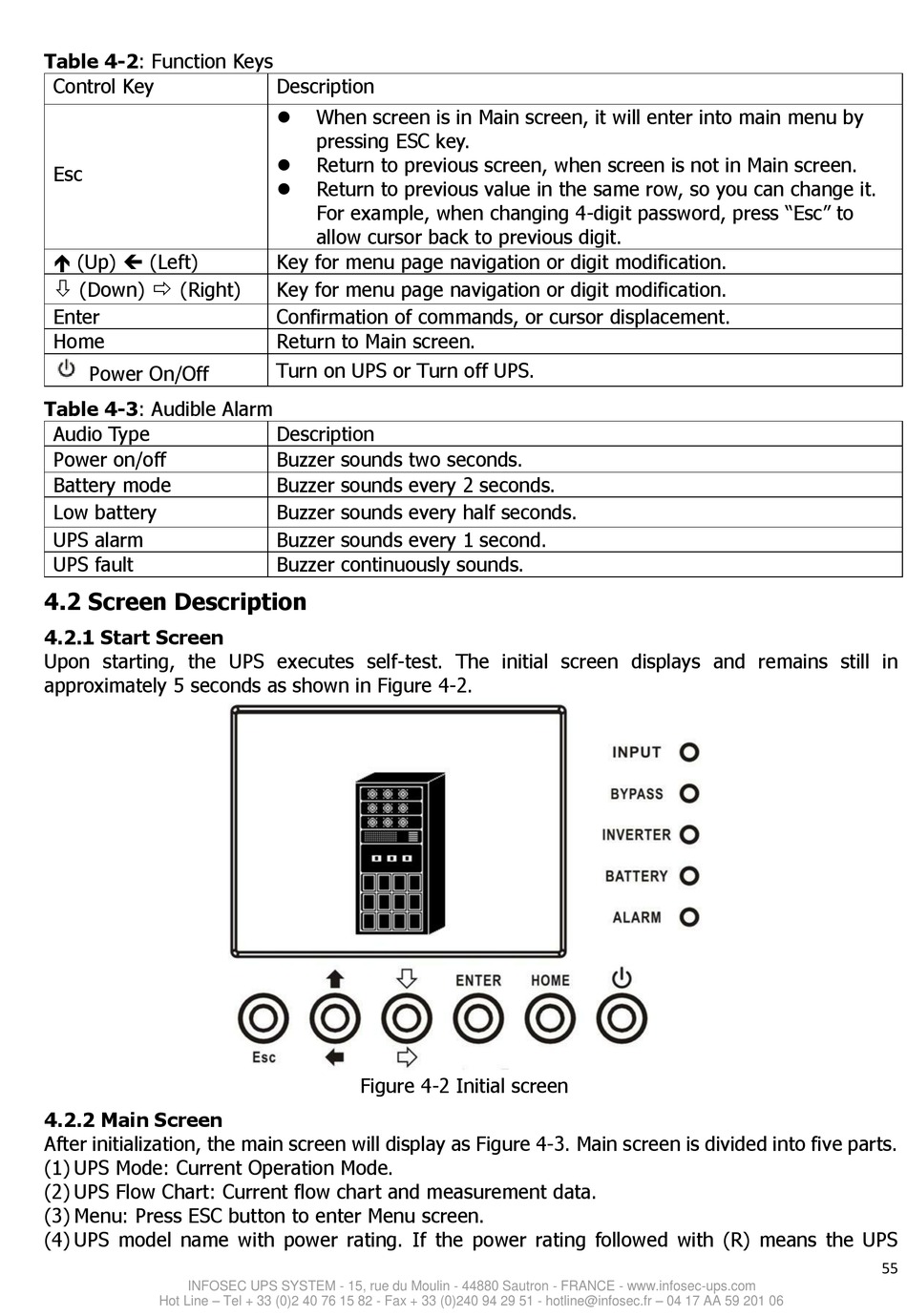

Figure 4-2 Initial screen
