2.9.3 Battery tray
The Battery Module is shipped with its own package. The inside batteries can be installed at
factory or installed by the end user. A Battery Module contains 10 pcs of 12V/9Ah batteries at
maximum.

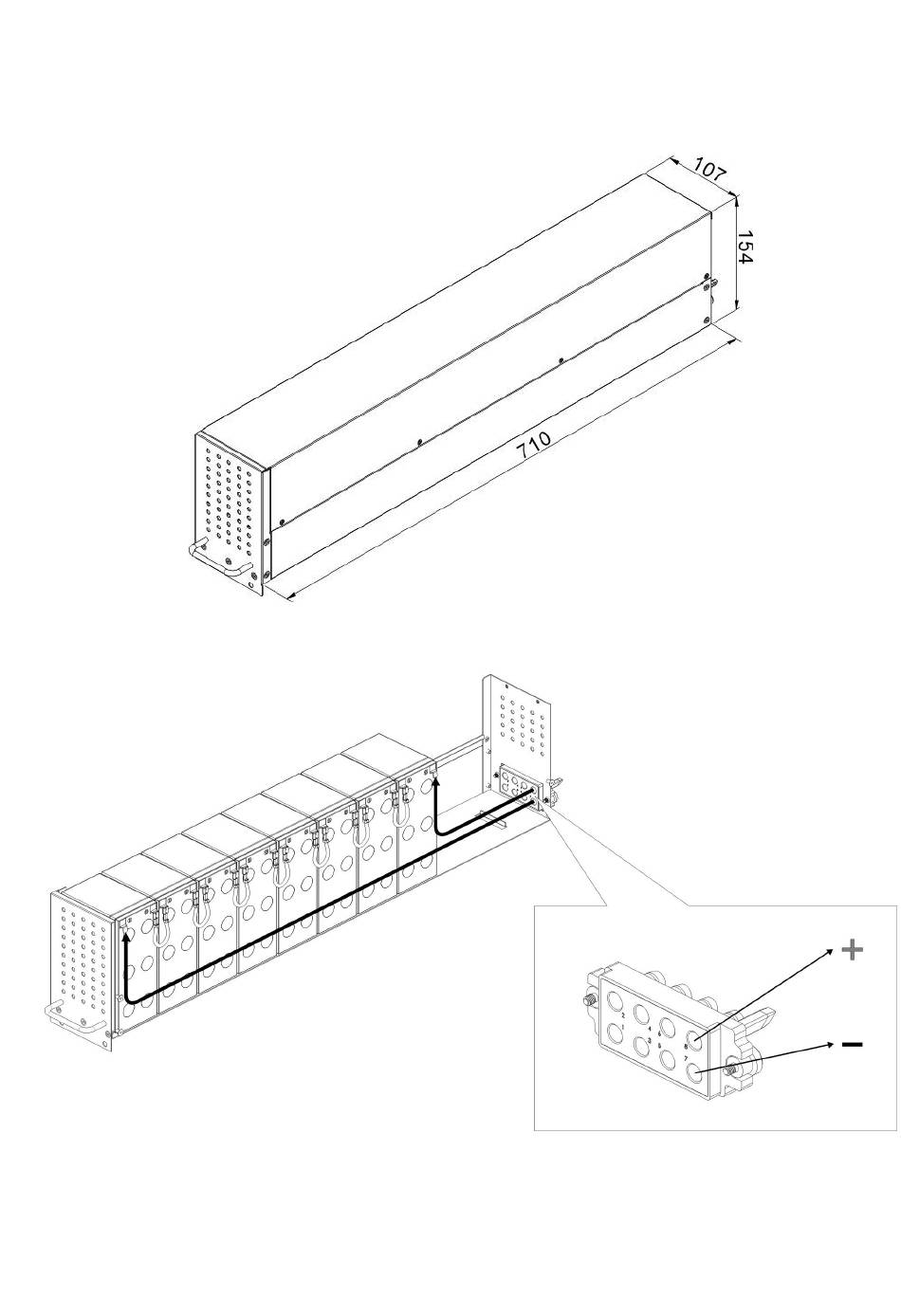

Figure 2-21 Battery trays
Figure 2-22 Internal Wiring of Battery trays
