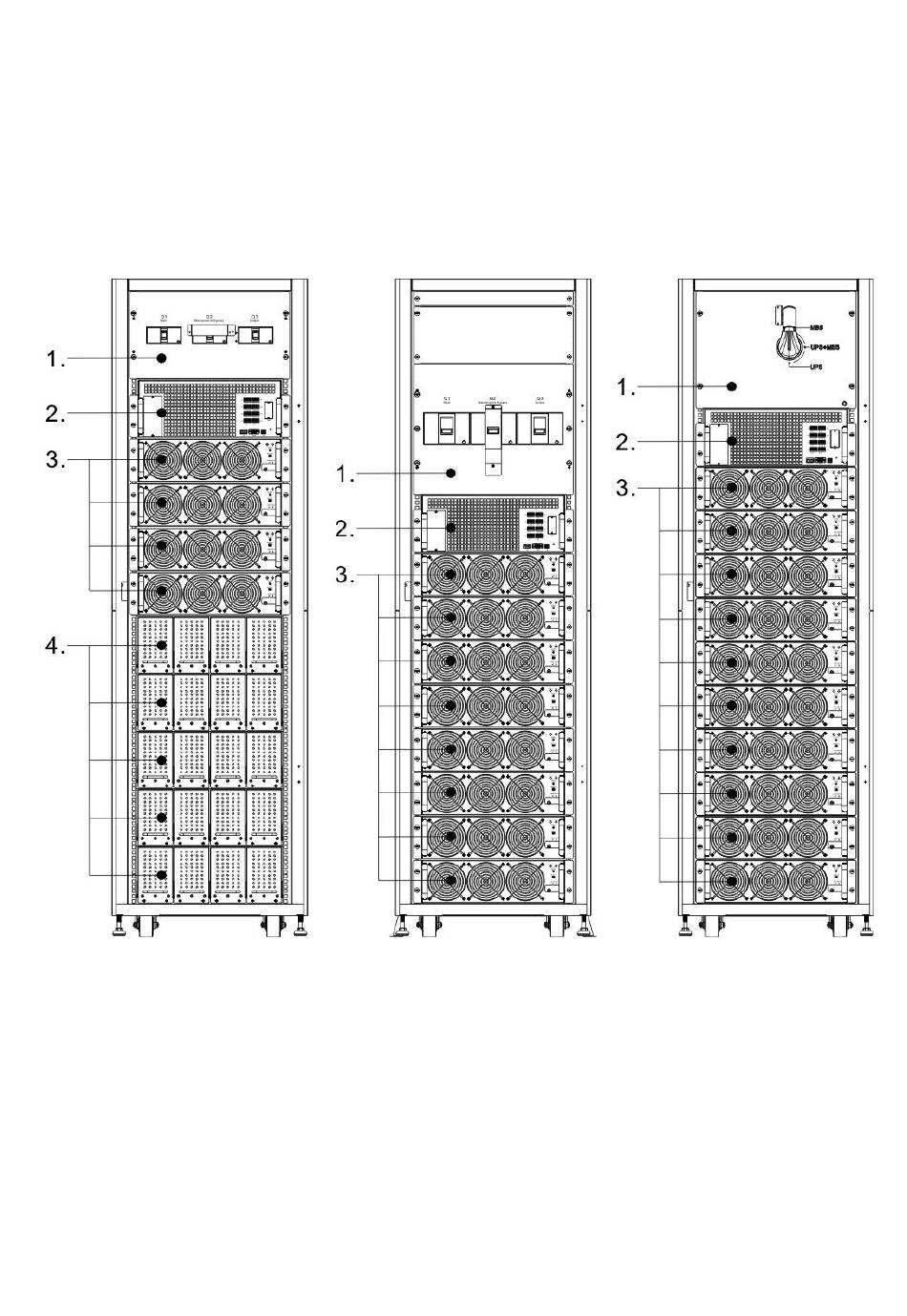

2.6.2 Front View
Unlock and open the front door and you will see the Main Breaker (Q1), Maintenance Breaker (Q2),
Output Breaker (Q3), STS Module, Power Module slots and Battery Module slots (Battery Module
Slots is only for standard series).
The cabinet of 300K Model has Maintenance Bypass Switch Only.
Mod5T 120/30 (42U)
1. Switch Unit
2. STS Module
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
Mod5T 210/30 S (42U)
3.
Power Module
4.
Battery Module
Mod5T 300/30 S (42U)
