2.6.3 Rear View
Unlock and open the rear door and you will see the rear panel of UPS. There is a Battery Breaker
for internal battery modules in the standard series, but there is not any in the extended series (S
versions).
Mod5T 120/30 (42U)
Mod5T 210/30 S (42U)
Mod5T 300/30 S (42U)

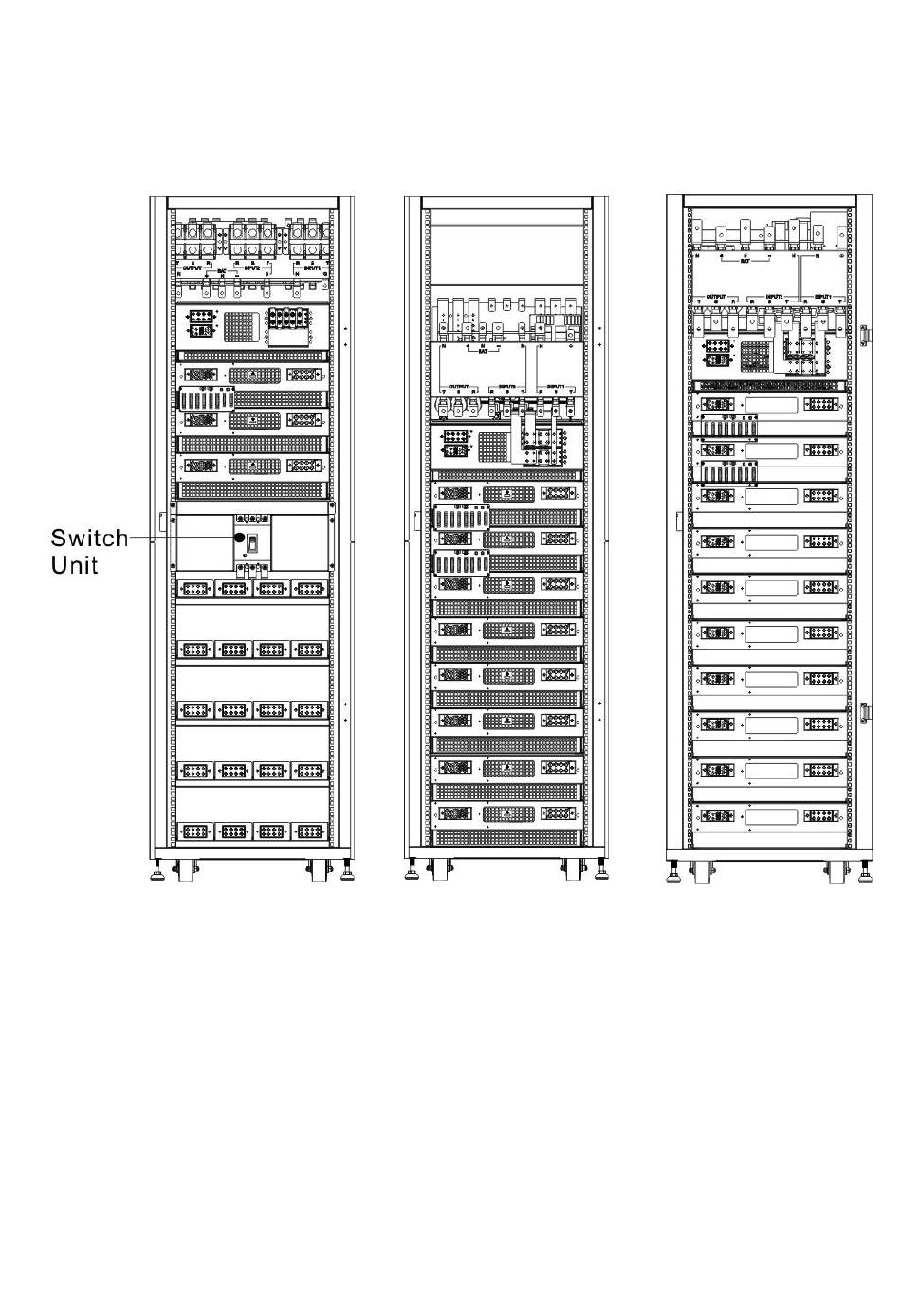

Figure 2-10 Rear View
13
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 04 17 AA 59 201 06
