Part 1: FPGA Development Board Introduction

The AX7070 FPGA development board uses Xilinx's Zynq7000 series of
chips, model XC7Z020-2CLG400I, in a 400-pin FBGA package. The
ZYNQ7000 chip can be divided into a processor system part (PS) and a
programmable logic part (PL). On the AX7020 development board, the PS and
PL sections of the ZYNQ7000 are equipped with a wealth of external interfaces
and devices for user convenience and functional verification. In addit2ion, the
Xilinx USB Cable downloader circuit is integrated on the AX7020 FPGA
development board, so users can download and debug the AX7020 FPGA
development board with a USB cable.

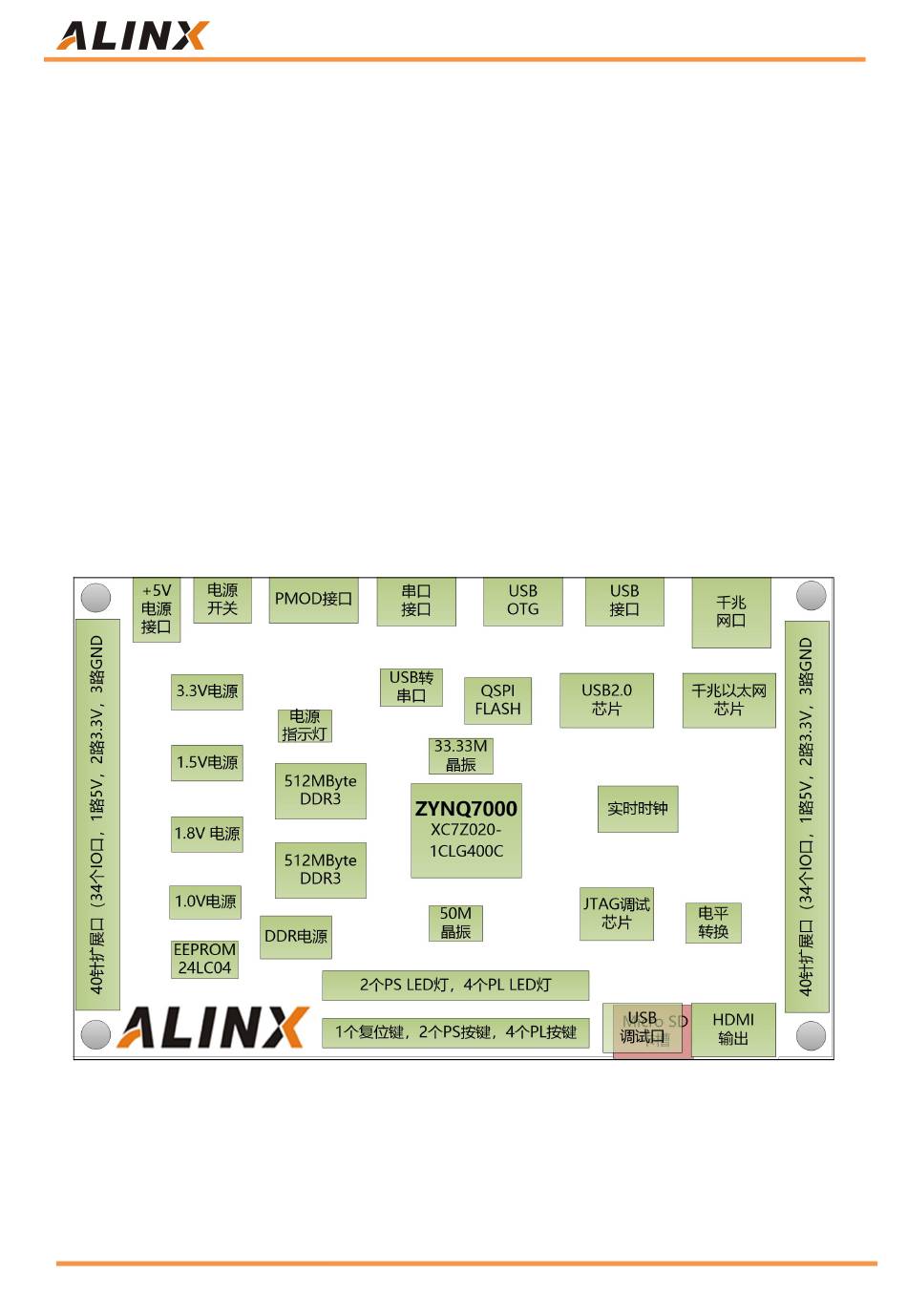

Figure 1-1 is the Schematic diagram of the entire AX7020 FPGA
development board:
Figure 1-1: The Schematic Diagram of the AX7020
Through this diagram, you can see the interfaces and functions that the
AX7010 FPGA Development Board contains:
