in Figure 6-14:
PS User LEDs pin assignment:
Signal Name
MIO0_LED
MIO13_LED

Part 6.9: User Buttons

On the AX7020 development board, two user buttons are connected to the
BANK501 IO in the PS section. The user can use these two user buttons to test
the input signal and interrupt trigger. In the circuit design, when the button is
pressed, the signal voltage input to the ZYNQ BANK501 IO is low, and when it
is not pressed, the signal is high. The schematic diagram of the ZYNQ
BANK501 IO and button connections is shown in Figure 6-16:
33 / 47
ZYNQ FPGA Development Board AX7020 User Manual

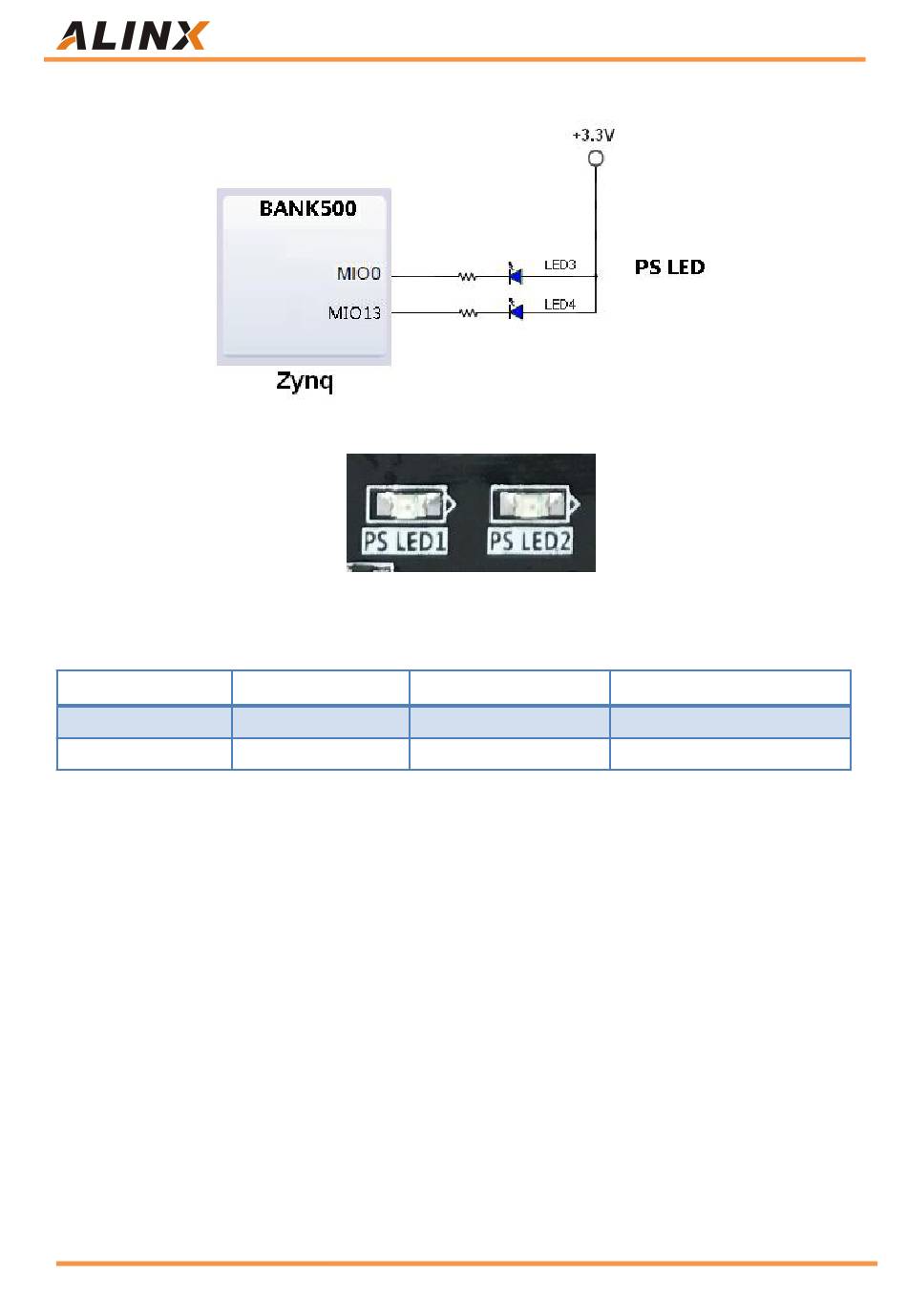

Figure 6-14: User LEDs Schematic
Figure 6-15: PS User LEDs on the FPGA Board
ZYNQ Pin Name
PS_MIO0_500
PS_MIO13_500
ZYNQ Pin Number
E6
E8
Description
PS User LED LED1
PS User LED LED2
