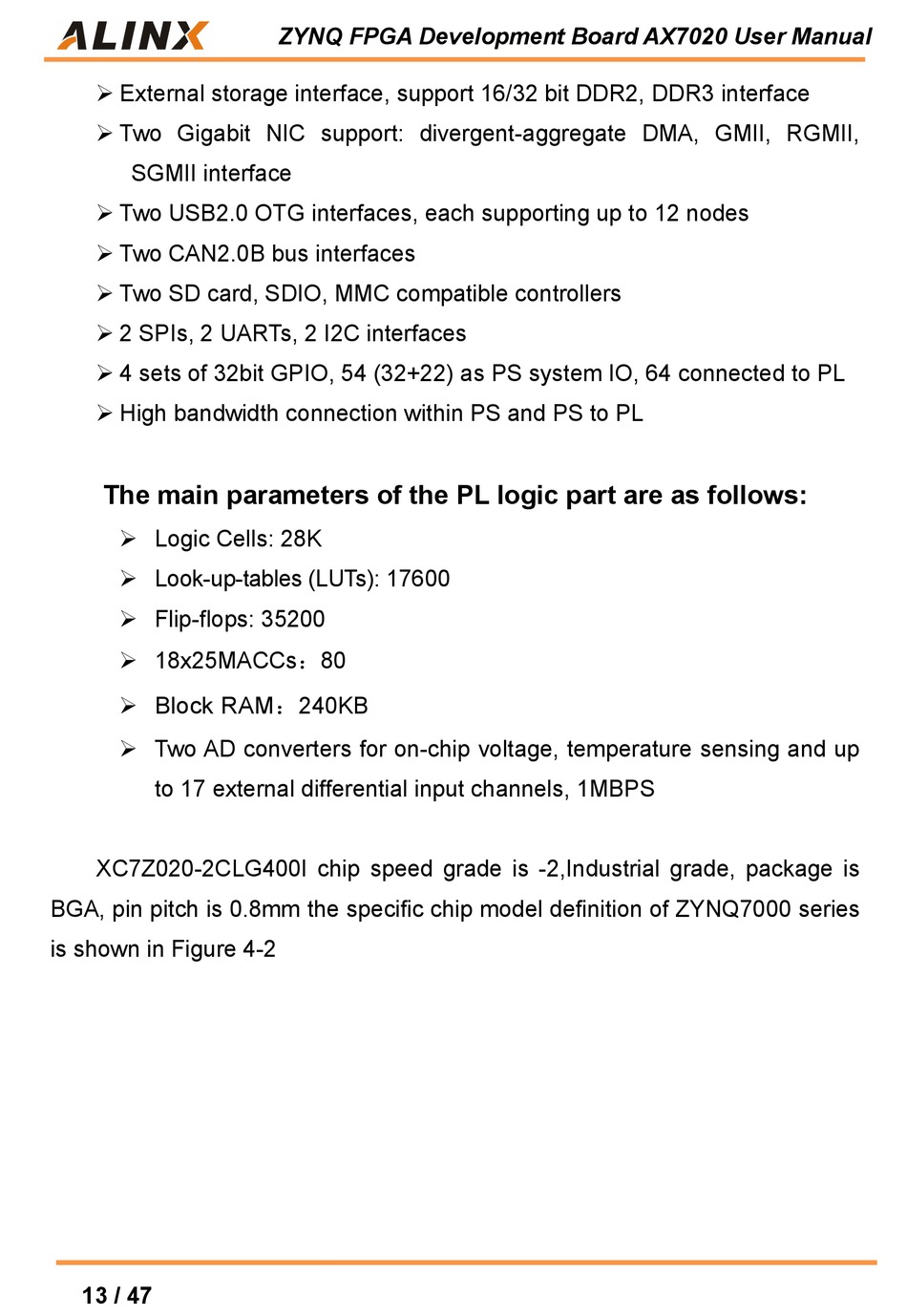

Alinx ZYNQ 7000 User Manual page 13

 External storage interface, support 16/32 bit DDR2, DDR3 interface
 Two Gigabit NIC support: divergent-aggregate DMA, GMII, RGMII,
SGMII interface
 Two USB2.0 OTG interfaces, each supporting up to 12 nodes
 Two CAN2.0B bus interfaces
 Two SD card, SDIO, MMC compatible controllers
 2 SPIs, 2 UARTs, 2 I2C interfaces
 4 sets of 32bit GPIO, 54 (32+22) as PS system IO, 64 connected to PL
 High bandwidth connection within PS and PS to PL
The main parameters of the PL logic part are as follows:
 Logic Cells: 28K
 Look-up-tables (LUTs): 17600
 Flip-flops: 35200
 18x25MACCs：80
 Block RAM：240KB
 Two AD converters for on-chip voltage, temperature sensing and up
to 17 external differential input channels, 1MBPS
XC7Z020-2CLG400I chip speed grade is -2,Industrial grade, package is
BGA, pin pitch is 0.8mm the specific chip model definition of ZYNQ7000 series
is shown in Figure 4-2
13 / 47
ZYNQ FPGA Development Board AX7020 User Manual
