Part 7.7: User Buttons

On the AX7020 development board, four user buttons are connected to the
IOs of BANK34 and Bank35 in the ZYNQ PL section. The buttons are active
low. In the circuit design, when the button is pressed, the signal is low, and
when it is not pressed, the signal is high. The schematic is shown in Figure
7-15:
46 / 47
ZYNQ FPGA Development Board AX7020 User Manual
IO_L23N_T3_35
IO_L24P_T3_35
IO_L24N_T3_35

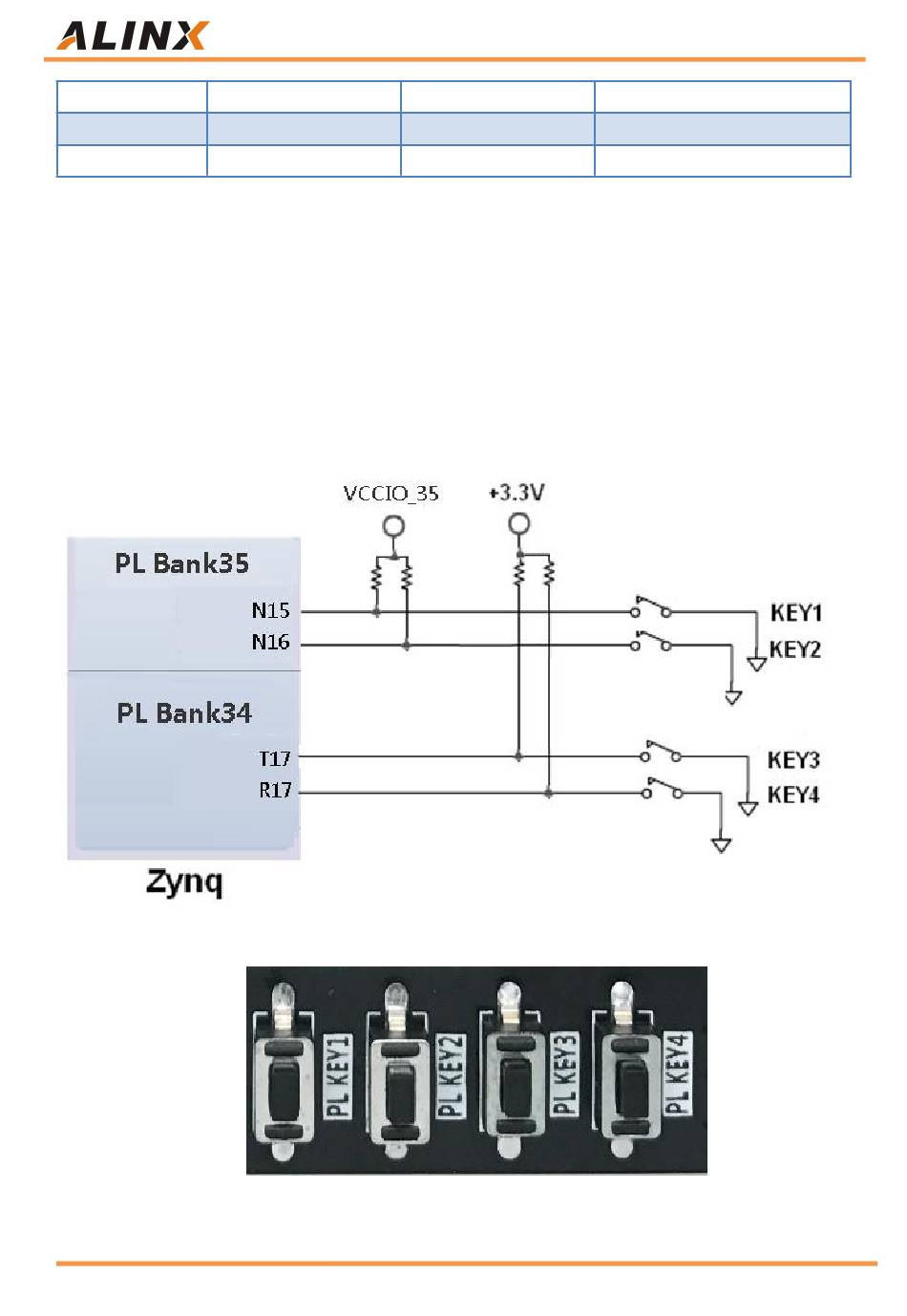

Figure 7-15: PL User Buttons Schematic
Figure 7-16: PL User Buttons on the FPGA Board
M15 PL User LED PL LED2
K16 PL User LED PL LED3
J16 PL User LED PL LED4
