ZYNQ FPGA Development Board AX7020 User Manual

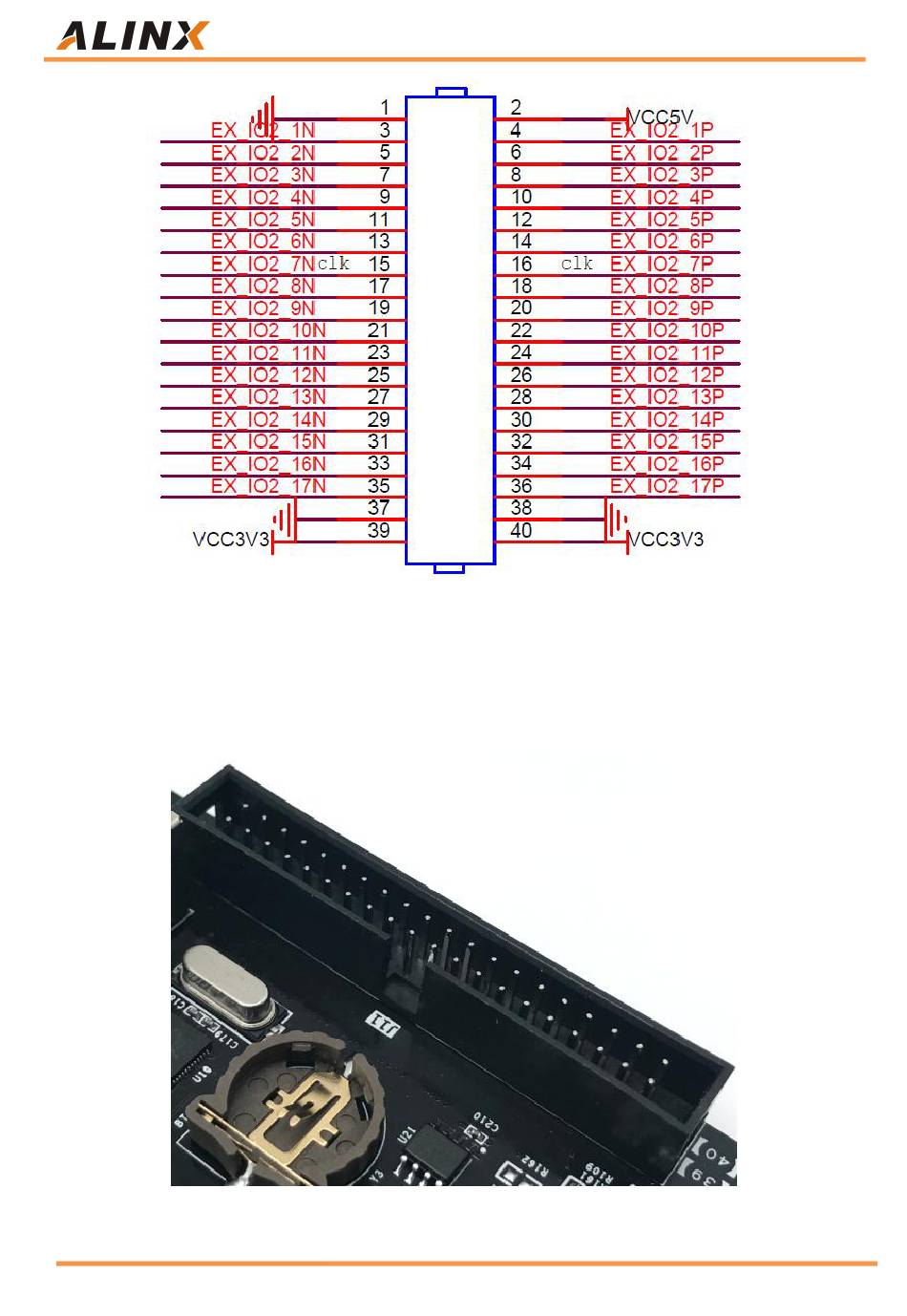

Figure 7-11: Expansion header J11 schematic
Figure 7-12 shows the physical diagram of the J11 expansion port. Pin1,
Pin2 and Pin39 of the expansion port, Pin40 has been marked on the board.
Figure 7-12: Expansion header J11 on the FPGA Board
43 / 47
