2.4 Installing an M.2 SSD Module

Use the following steps to install an M.2 SSD module.
1. Insert the M.2 2242 B or B+M key module into the indi-
cated slot (under the wires) at an angle.
2. Press down on the M.2 module until it is seated, then
secure it with one M2.5-P-head-L5 screw (not provided).
3. Replace the bottom cover of the chassis.
Take care not to remove or damage any wires while installing
the module.
CAUTION:
22

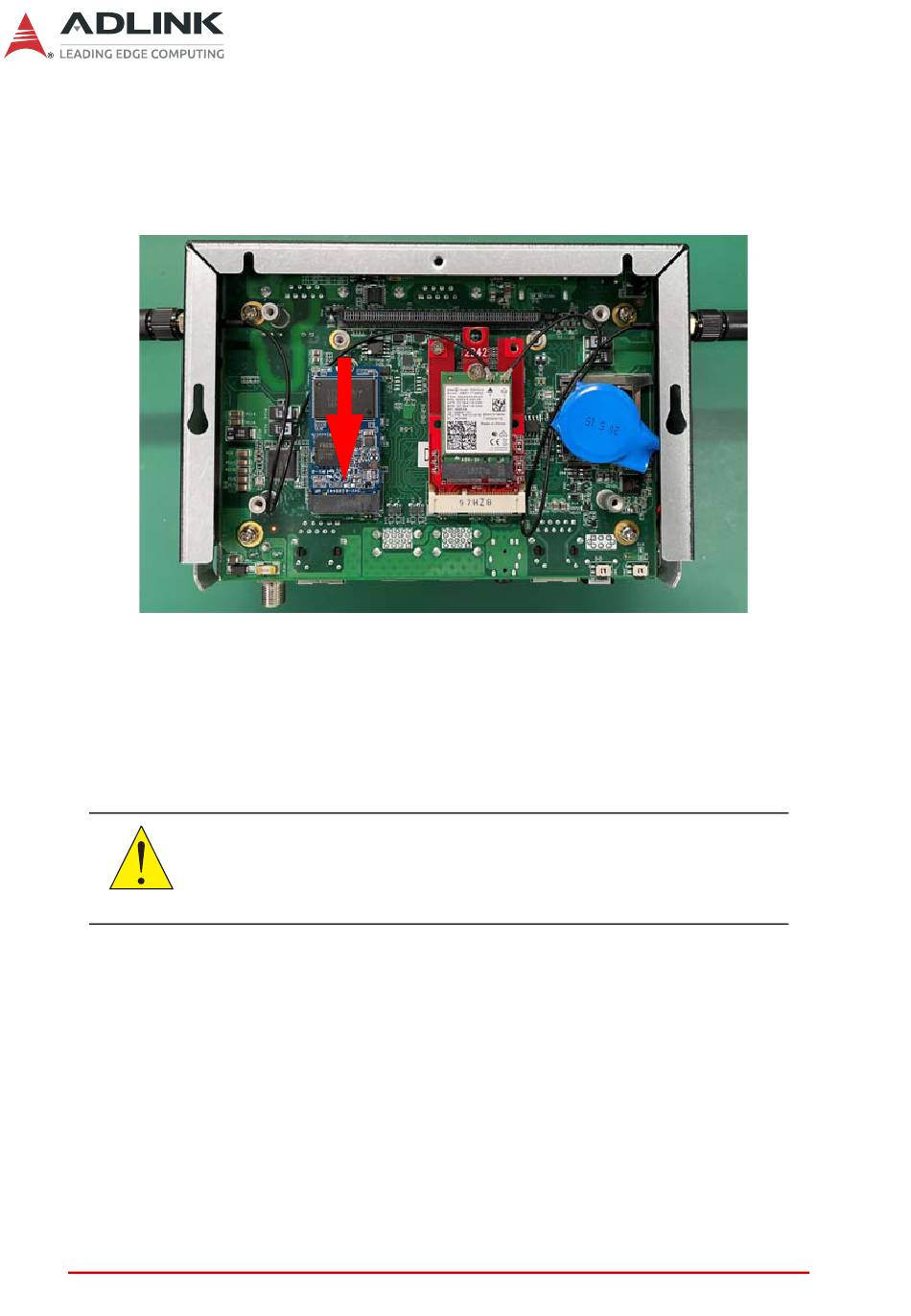

Figure 2-1: M.2 2242 B Key Slot
