2.8 DIN Rail Mount

The DLAP-211 controller may optionally include a DIN rail mount
kit, with its own six M4 screws, in addition to the standard VESA
mount kit. Follow these steps to install the DIN rail bracket.
1. Use two M4 screws (pointing upwards in the red box
below) to attach the DIN rail bracket to the adapter plate.
2. Use four M4 screws (circled in red below) to attach the
DIN rail bracket assembly to the DLAP-211 chassis.
Getting Started
DLAP-211-JNX / DLAP-211-Nano Series

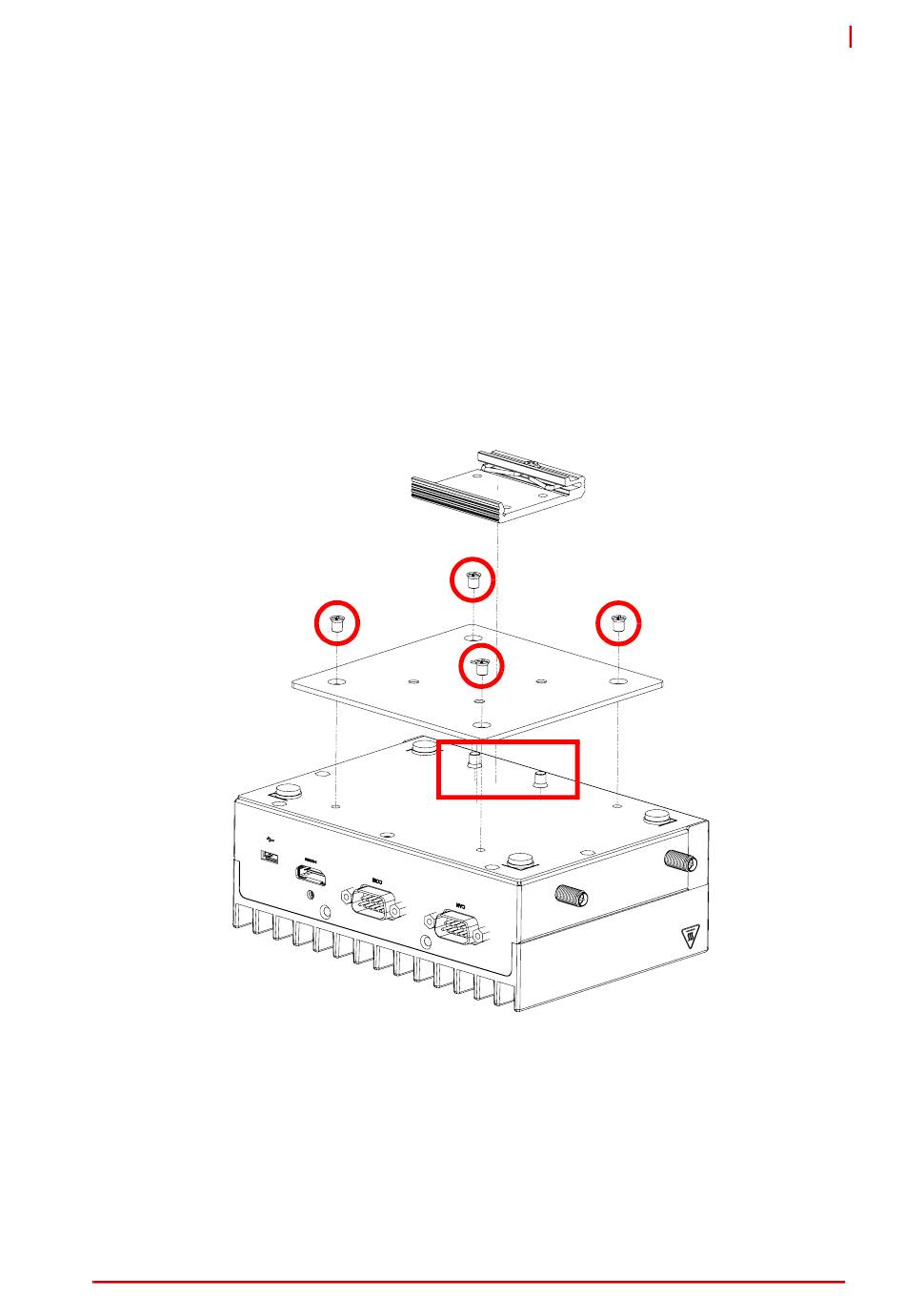

Figure 2-4: DIN Rail Mount
