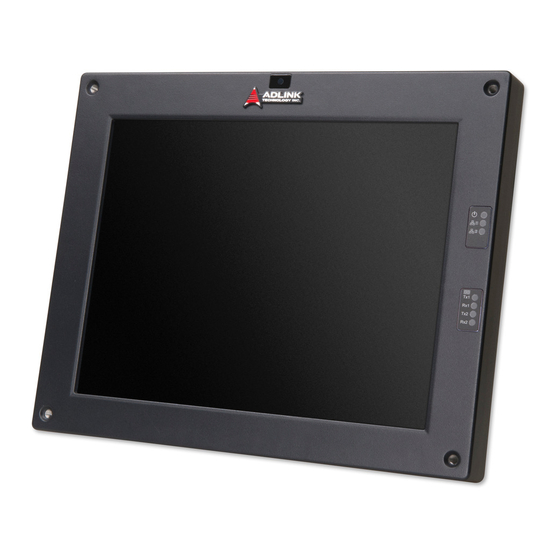

ADLINK Technology DMI-1210 User Manual

Driver machine interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

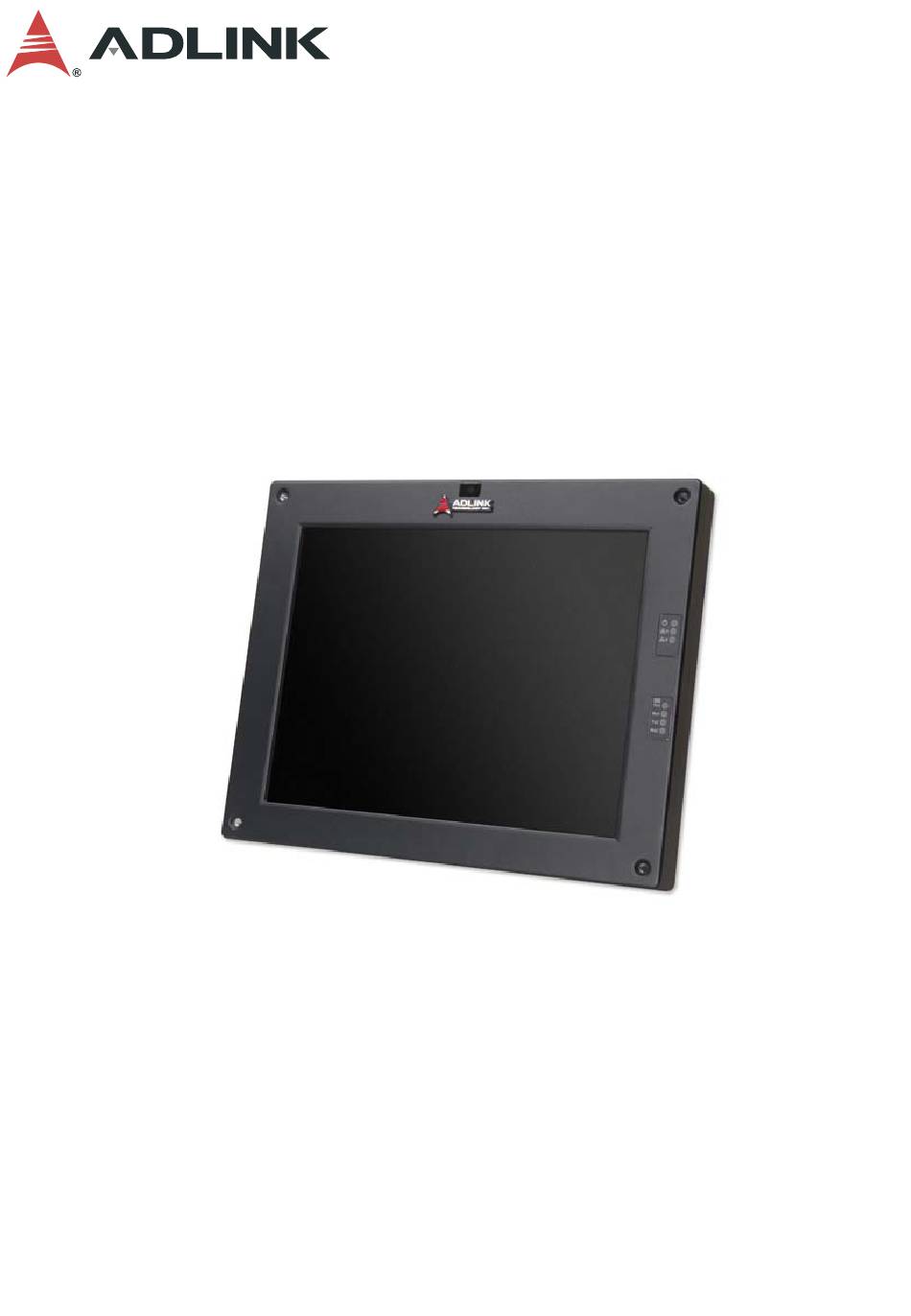

DMI-1210
Driver Machine Interface
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.1
February 21, 2020
50-1Z284-1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMI-1210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology DMI-1210

Summary of Contents for ADLINK Technology DMI-1210

  • Page 1 DMI-1210 Driver Machine Interface User’s Manual Manual Rev.: February 21, 2020 Revision Date: 50-1Z284-1010 Part No: Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Change(s) 2019-02-20 Initial release 2020-02-21 Correct USB 1.1 M8 Connector pinout Revision History...

  • Page 3: Preface

    DMI-1210 Preface Copyright © 2019, 2020 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING California Proposition 65 Warning WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene, cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Diox- ane, formaldehyde, lead, DEHP, styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP, DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause...

  • Page 5: Table Of Contents

    List of Tables................xi 1 Introduction ................ 1 Overview................1 Features................1 Package Contents ............... 2 2 System Description............5 DMI-1210 Specifications............5 Block Diagram ..............7 Mechanical Layout............... 8 Mechanical Dimensions............. 11 Power Specifications ............12 2.5.1 Power Consumption............. 12 2.5.2 System Power Features..........
  • Page 6 Leading EDGE COMPUTING 3.9.1 Windows............... 30 3.9.2 Linux Drivers ..............40 4 Display Utilities ..............41 Calibrating the Touch Panel - Ubuntu........ 41 Reading the Ambient Light Sensor ........43 Display Brightness Control..........44 5 Interfaces ................45 Status LEDs ............... 45 Pin Definitions ..............
  • Page 7 DMI-1210 6.4.14 Intel I210 Gigabit Network Connection......74 Chipset Menu..............75 6.5.1 North Bridge ..............75 6.5.2 South Bridge ..............75 6.5.3 Uncore Configuration ........... 76 6.5.4 South Cluster Configuration ......... 77 6.5.5 HD-Audio Configuration ..........77 Security Menu..............84 6.6.1 Secure Boot ..............
  • Page 8 Leading EDGE COMPUTING This page intentionally left blank. viii Table of Contents...

  • Page 9: List Of Figures

    Figure 2-1: DMI-1210 Block Diagram..........7 Figure 2-2: DMI-1210 Front Layout............ 8 Figure 2-3: DMI-1210 Rear I/O Layout..........9 Figure 2-4: DMI-1210 Side I/O Layout ..........10 Figure 2-5: DMI-1210 Bottom I/O Layout ......... 10 Figure 2-6: DMI-1210 Dimensions ........... 11 Figure 3-1: DMI-1210 Mounting Hole Locations ......
  • Page 10 Leading EDGE COMPUTING This page intentionally left blank. List of Figures...

  • Page 11: List Of Tables

    DMI-1210 List of Tables Table 2-1: DMI-1210 Specifications..........5 Table 5-1: Status LED Definitions........... 45 Table 5-2: COM1/COM2 Serial Port Pinout ........46 Table 5-3: USB 1.1 M8 Connector Pinout........46 Table 5-4: GbE1/GbE2 M12 Connector Pinout....... 47 Table 5-5: Audio M8 Connector Pinout...........
  • Page 12 Leading EDGE COMPUTING This page intentionally left blank. List of Tables...

  • Page 13: Introduction

    DMI-1210 Introduction 1.1 Overview The DMI-1210 is a 12.1” Driver Machine Interface panel PC designed specifically for the railway industry, equipped with Intel Atom® x5-E3930 processor (formerly Apollo Lake), resistive touch, and MVB interface. It can be applied as an HMI unit for driver’s desks, control panel for passenger information systems,...

  • Page 14: Package Contents

    1.3 Package Contents Please check that your package contains the items below. If you discover damaged or missing items, please contact your vendor. DMI-1210 Driver Machine Interface Panel PC (features dependent on specific model ordered) Mounting screw kit Optional Accessories...
  • Page 15 DMI-1210 Mini PCIe Card Cellular Kit 01 (for TW, China) (P/N: 91-95239-400E) Mini PCIe GSM/TD-SCDMA/CDMA/WCDMA/LTE mod- ule (SIMCOM SIM7100C-PCIE) 2x external antennas (P/N: 30-60099-0000) 2x internal RF cables (P/N: 30-60066-0000) Mini PCIe Card Cellular Kit 02 (for Europe) (P/N: 91-95239-500E)
  • Page 16 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 17: System Description

    Built-in 72 channel high sensitivity GNSS receiver GNSS GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C 4x antenna cutouts for wireless functions Antennas 1x antenna cutout for GNSS Sensor on front bezel to detect ambient illuminance Light Sensor Table 2-1: DMI-1210 Specifications...
  • Page 18 4572 m (15000 ft) at 25°C (MIL-STD-810G Method 500.5, Altitude Procedure II2) Software AMI BIOS BIOS ADLINK SEMA 3.5 for WDT, hardware monitor, and fail-safe dual Board BIOS Management Linux Ubuntu 16.04 LTS, QT compatible, 64-bit Operating Windows 10 System Table 2-1: DMI-1210 Specifications...

  • Page 19: Block Diagram

    USB 2.0 USB 1.1 Ethernet Wafer x2 M8 Port x1 M12 Port x2 Opt. LVDS & Backlight Light wire Sensor Camera Dongle Cap. Res. 12.1" Touch Touch Panel Module Panel PCBA Internal External Board-to-Board cable Figure 2-1: DMI-1210 Block Diagram...

  • Page 20: Mechanical Layout

    The status LEDs are located on the right side of the bezel and the ambient brightness sensor at the top of the bezel as shown. Ambient Brightness Sensor Power GbE Activity Serial Port Tx/Rx Activity Figure 2-2: DMI-1210 Front Layout...

  • Page 21: Figure 2-3: Dmi-1210 Rear I/O Layout

    DMI-1210 Rear View Figure 2-3: DMI-1210 Rear I/O Layout GPS antenna SMA connector Wi-Fi Main antenna SMA connector Wi-Fi Aux + BT antenna SMA connector 3G/4G Main antenna SMA connector 3G/4G Aux antenna SMA connector COM1/COM2 DB9 connectors X1/X2 USB 1.1 M8 connector...

  • Page 22: Figure 2-4: Dmi-1210 Side I/O Layout

    Leading EDGE COMPUTING Side View USB2 Figure 2-4: DMI-1210 Side I/O Layout Bottom View CFast slot Figure 2-5: DMI-1210 Bottom I/O Layout...

  • Page 23: Mechanical Dimensions

    DMI-1210 2.4 Mechanical Dimensions 4x M6 through hole 10.4x90 31.10 247.80 31.10 27.90 87.30 101.10 Dimensions in mm Dimensions in mm 272.50 310 (RUBBER WIDTH) Figure 2-6: DMI-1210 Dimensions...

  • Page 24: Power Specifications

    Leading EDGE COMPUTING 2.5 Power Specifications 2.5.1 Power Consumption The following table displays the DMI-1210 power consumption data at room temperature. Input Power Loading Setup Voltage Current Voltage Cons. 100% loading on 24VDC Stress CPU,GPU,RAM by 24.1V 0.9A 22.0W running Intel TAT tool...

  • Page 25: System Power Features

    DMI-1210 2.5.2 System Power Features Operating Voltage Range The system is equipped with a wide DC input range from 16.8V to 137.5V. Input range: 16.8V to 137.5V Max. input current: 0.35A by 137.5V Input Over-Voltage Protection When the input voltage exceeds the 160V, the module will shut down, and try to restart every 6 seconds until the over current con- dition is corrected.
  • Page 26 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 27: Getting Started

    DMI-1210 Getting Started 3.1 Removing the Rear Cover To install the optional modules, first remove the rear cover as described below. 1. Remove the cover on the USB2 slot as shown. USB Cover...
  • Page 28 Leading EDGE COMPUTING 2. Remove all the screws indicated (silver color). M3 Screws, others are M2.5 screws Note: Do NOT remove the black screws Do NOT remove the black screws. These are used to secure the heat spreaders inside the cover. NOTE: NOTE:...
  • Page 29 DMI-1210 3. Remove the rear cover. It may be necessary to use a tool such as a flat-head screwdriver to lift the cover away from the display frame. Rear Cover...

  • Page 30: Installing A Pc/104 Mvb Module (Optional)

    Leading EDGE COMPUTING 3.2 Installing a PC/104 MVB Module (optional) Follow the instructions below to install a PC/104 MVB module. 1. Remove the cover on the X7 and X8 D-SUB port openings. M2.5 Screws D-SUB port cover...
  • Page 31 DMI-1210 2. Install the PC/104 MVB module with four M3 screws as shown. M3 Screws MVB Module...
  • Page 32 Leading EDGE COMPUTING 3. Connect the two D-SUB cables to the PC/104 MVB module and X7/X8 ports as shown. Use the female-to-male cable for the X7 port and male-to-female cable for the X8 port. Note that the 90° D-SUB connectors go to the module Nut Screws 4#-40 Screws F-to-M...

  • Page 33: Installing Wi-Fi And Lte Modules (Optional)

    DMI-1210 3.3 Installing Wi-Fi and LTE Modules (optional) Follow the instructions below to install Mini PCIe Wi-Fi and LTE modules. 1. Remove the caps on the A2-A5 SMA connector openings. Remove Caps...
  • Page 34 Leading EDGE COMPUTING 2. Install the Mini PCIe LTE and Wi-Fi modules using two M2.5 screws each. Connect the internal RF cables to the modules, insert the SMA connectors into the openings, and secure with washers and nuts as shown. Route the cables as shown below.

  • Page 35: Installing A Mini Pcie Can Bus Module (Optional)

    DMI-1210 3.4 Installing a Mini PCIe CAN Bus Module (optional) Follow the instructions below to install a Mini PCIe CAN bus module. 1. Install the Mini PCIe CAN bus module into either of the available card slots using two M2.5 screws.as described in Step 2 on page 22 above for Mini PCIe LTE and Wi-Fi modules.

  • Page 36: Mounting

    Leading EDGE COMPUTING 3.5 Mounting The DMI-1210 can be panel mounted using 4 countersunk M5 screws and O-rings. Make sure there is adequate space behind the panel for ventilation and I/O connectors, and that the panel material and thickness can support the weight of the device.

  • Page 37: Figure 3-2: Mounting The Dmi-1210

    DMI-1210 M5 Nut (for 5.5 through hole) Platform DMI-1210 O-Ring M5xL40 Screw M5 Screw (torque: 10.0 Kgf-cm) Figure 3-2: Mounting the DMI-1210...

  • Page 38: Cfast Card Installation

    Leading EDGE COMPUTING 3.6 CFast Card Installation To install or remove the CFast card, remove the M2.5 screws securing the CFast slot cover and remove the cover. Insert the CFast card and secure the cover. CFast Card Slot Cover...

  • Page 39: Connections

    DMI-1210 3.7 Connections Connecting a Ground Cable Connect the ground cable before making any other connec- tions. When disassembling the system, always detach the ground cable last. CAUTION: Use a ground cable with a cross section of at least 0.823mm (18AWG) and an M4 size ring terminal.
  • Page 40 Leading EDGE COMPUTING Connecting the Power Supply Work on the computer system may only be carried out by personnel qualified for the specific task and who have the training and experience to identify risks and WARNING: avoid potential hazards. Make sure that a ground cable has been connected to the system before connecting an external power supply and switching on the system.

  • Page 41: Starting Up The System

    The first boot device is the onboard eMMC. To enter the BIOS setup menu to change the boot device order, enter Del or Esc. The DMI-1210 can be delivered with Linux Ubuntu 16.04 LTS or Windows 10 already installed, or without any operating system.

  • Page 42: Driver Installation

    Windows Please download the Windows drivers from the ADLINK website at www.adlinktech.com. The following describes the DMI-1210 driver installation proce- dures for Windows 10. Install the Windows operating system before installing any driver. Most standard I/O device drivers are installed during Windows installation.
  • Page 43 DMI-1210 11. Wi-Fi: To install the Wi-Fi driver, do the following. Open the Device Manager.
  • Page 44 Leading EDGE COMPUTING R-click on Other Devices > Network Controller and select Update Driver Software.
  • Page 45 DMI-1210 Select Browse my computer for driver softwaret...
  • Page 46 Leading EDGE COMPUTING Navigate to the path ...\WiFi and BT module_BCM4356 \WiFi\x64\DHD_REL_1.558.53.33_Win10_x64 and click Next.
  • Page 47 DMI-1210 Select Install this driver software anyway and then click Close when the driver has finished installing.
  • Page 48 Leading EDGE COMPUTING Navigate to the path ...\WiFi and BT module_BCM4356 \WiFi. Right click on the file Install_nvram.bat and click Yes in the User Account Control pop-up. This will copy the file 4356r2nvram.txt into C:\Windows\System32\drivers.
  • Page 49 DMI-1210 Open the Device Manager, R-click on Broadcom 802.11ac Wireless PCEI Full Dongle Adapter and disable it Click Yes when asked to confirm.
  • Page 50 Leading EDGE COMPUTING R-click on Broadcom 802.11ac Wireless PCEI Full Dongle Adapter and enable it.
  • Page 51 DMI-1210 Wi-Fi will now be functional.

  • Page 52: Linux Drivers

    Leading EDGE COMPUTING 3.9.2 Linux Drivers To install the Linux drivers, please download and follow the instructions in the DMI-1210 Linux Drivers Installation Guide.

  • Page 53: Display Utilities

    DMI-1210 Display Utilities 4.1 Calibrating the Touch Panel - Ubuntu Download the PenMount touchscreen calibration tool Pen- Mount-Ubuntu 12.04-18.04 32_64bit Driver from the manufac- turer’s website by using the following search. http://www.amtouch.com.tw/downloads/penmount-drivers/ Uncompress the package and install it by doing the following: // Uncompress PenMount calibration tool # tar –jxvf pmLinux-Ubuntu_12.04-18.04_32_64bit_Driver_V4.5.6.tar.bz2...
  • Page 54 Leading EDGE COMPUTING To calibrate the touchscreen, perform the following steps. 1. Select “Filter” and search for "Pen" to find the PenMount Utility. 2. Open the utility, select the number of points you wish to calibrate and click on “Calibrate” to start. 3.

  • Page 55: Reading The Ambient Light Sensor

    DMI-1210 4.2 Reading the Ambient Light Sensor The DMI-1210 is equipped with an Everlight DCDIC-17 ambient light sensor. Below is a sample application to read out the ADC values and calculate the illuminance in lux. // visit folder to compile application # cd $APP_ALS/ # gcc als_read.c -o als_read...

  • Page 56: Display Brightness Control

    Leading EDGE COMPUTING 4.3 Display Brightness Control The LCD backlight can be controlled using the following com- mand: echo $1> /sys/devices/pci0000\:00/0000\:00\:02.0/drm/ card0/card0-eDP-1/intel_backlight/brightness $1= 0~96000 (0=dark, 96000= max. brightness) #Set brightness to min echo 0>/sys/devices/pci0000:00/0000:00:02.0/drm/ card0/card0-eDP-1/intel_backlight/brightnes #Set brightness to max echo 96000>/sys/devices/pci0000:00/0000:00:02.0/drm /card0/card0-eDP-1/intel_backlight/brightness Users can build into their own application to enable auto dimming...

  • Page 57: Interfaces

    DMI-1210 Interfaces 5.1 Status LEDs Please refer to Figure 2-2 DMI-1210 Front Layout on page 8 for status LED locations. Function LED is on when DC Power is connected and system is Power Status powered on GbE1/2 Activity LED flashes when Ethernet port is active COM1/2 Tx LED flashes when serial port is transmitting data.

  • Page 58: Pin Definitions

    Leading EDGE COMPUTING 5.2 Pin Definitions Please refer to Figure 2-3 DMI-1210 Rear I/O Layout on page 9 and Figure 2-4 DMI-1210 Side I/O Layout on page 10 for connec- tor locations. COM1 (X1), COM2 (X2) DB9 Connectors Pin 1...

  • Page 59: Table 5-4: Gbe1/Gbe2 M12 Connector Pinout

    DMI-1210 GbE1/GbE2 M12 Connectors (X4/X5) Pin # Signal Name MDO0P MDO0N MDO1P MDO1N MDO3P MDO3N MDO2N MDO2P Table 5-4: GbE1/GbE2 M12 Connector Pinout Audio M8 Connector (X6) Pin # Signal Name SPEAKER_L_P SPEAKER_L_N SPEAKER_R_P SPEAKER_R_N Table 5-5: Audio M8 Connector Pinout...

  • Page 60: Table 5-6: Mvb Bus Female Db9 Connector Pinout

    Leading EDGE COMPUTING MVB Bus Female DB9 connector (X7, optional) Pin 1 Pin 5 Pin 9 Pin 6 Input / Output as Pin # Signal Description seen from the node Non-inverted MVB bus line, A.data.P with RS485-level bidirectional Inverted MVB bus line, with A.data.N RS485-level Not connected...

  • Page 61: Table 5-7: Mvb Bus Male Db9 Connector Pinout

    DMI-1210 MVB Bus Male DB9 Connector (X8, optional) Pin 1 Pin 5 Pin 6 Pin 9 Input / Output as Pin # Signal Description seen from the node Non-inverted MVB bus line, A.data.P with RS485-level bidirectional Inverted MVB bus line, with A.data.N...

  • Page 62: Table 5-8: Can Bus Male Db9 Connector Pinout

    Leading EDGE COMPUTING CAN Bus Male DB9 Connector (X7/X8, optional) Pin 1 Pin 5 Pin 6 Pin 9 Pin # COM3 Function COM4 Function Port 0 CAN L Port 1 CAN L Port 0 CAN H Port 1 CAN H Table 5-8: CAN Bus Male DB9 Connector Pinout DC power input M12 connector (X9) Pin #...

  • Page 63: Table 5-10: Usb2 (Usb 3.0) Pinout

    DMI-1210 USB2 Connector (USB 3.0) Pin # Signal Name +5V_USB3 USB2_P0_DN_CN USB2_P0_DP_CN USB3_P0_RXN_CN USB3_P0_RXP_CN USB3_P0_TXN_CN USB3_P0_TXP_CN Table 5-10: USB2 (USB 3.0) Pinout...

  • Page 64: Table 5-11: Cfast Socket Pin Definition

    Leading EDGE COMPUTING CFast Socket Pin # Signal Name Ground SATA_TX-P SATA_TX-N Ground SATA_RX-N SATA_RX-P Ground CFast_CDI Ground Ground CFast_LED1 CFast_LED2 P3V3 P3V3 Ground Ground CFast_CDO Table 5-11: CFast Socket Pin Definition...

  • Page 65: Figure 5-1: Internal Usb 2.0 Header (Cn16) Location

    DMI-1210 Internal USB 2.0 Header (CN16) Pin # Signal Name USB_D- USB_D+ Table 5-12: Internal USB 2.0 Header (CN16) Pinout CN16 Figure 5-1: Internal USB 2.0 Header (CN16) Location...
  • Page 66 Leading EDGE COMPUTING This page intentionally left blank.

  • Page 67: Bios

    DMI-1210 BIOS 6.1 Introduction The following chapter describes basic navigation for the AMI EFI BIOS setup utility. 6.2 Entering BIOS Setup To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 68 Leading EDGE COMPUTING Navigation The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. There is a hot key legend located in the right frame on most setup screens.
  • Page 69 DMI-1210 Hotkey Descriptions The < Enter > key allows you to display or change the setup Enter option listed for a particular setup item. The < Enter > key can also allow you to display the setup sub-screens. The < F1 > key allows you to display the General Help screen.
  • Page 70 Leading EDGE COMPUTING The < F3 > key on your keyboard is the optimized defaults key. To set the optimized defaults settings of the BIOS, press the < F3 > key on your keyboard. It is located on the upper row of a standard 101 keyboard.

  • Page 71: Main Setup

    DMI-1210 6.3 Main Setup The Main Menu provides read-only information about system and also allows to set system's date and time. 6.3.1 BIOS Information BIOS Item Options Description BIOS Vendor Display vendor name of system Info only BIOS. American Megatrends BIOS Version Display version of booting BIOS.

  • Page 72: System Information

    6.3.2 System Information BIOS Item Options Description Project Name Display the project name. Info only DMI-1210 CPU Board Version Info only Display the CPU board HW version. A1/A2/A3/… CPU Brand String Display what CPU is booting the Info only system.

  • Page 73: Board Information

    DMI-1210 6.3.4 Board Information BIOS Item Options Description Serial Number Display board’s serial number. Info only Manufacturing Date Info only Display manufacturing date. Last Repair Date Display Last Repair Date. Info only MAC ID Display onboard Ethernet MAC ID. Info only...

  • Page 74: Advanced Menu

    Leading EDGE COMPUTING 6.4 Advanced Menu This menu contains the settings for most of the user interfaces in the system. BIOS Item Options Description CPU Configuration For configuring CPU features/ Submenu functions. Graphic For setting graphic controller Submenu Configuration parameters. Power Submenu Management...

  • Page 75: Cpu Configuration

    DMI-1210 6.4.1 CPU Configuration BIOS Item Options Description EIST Disable Enables/disables Intel SpeedStep Enable Turbo Mode Disable Enables/disables Turbo mode Enable Intel Virtualization Disable When enabled, VMM can utilize the Technology additional hardware capabilities Enable provided by Vanderpool Technology C-States...

  • Page 76: Graphic Configuration

    Leading EDGE COMPUTING 6.4.2 Graphic Configuration BIOS Item Options Description Data format and Select the data format and color Auto Color Depth depth. VESA 24 bpp JEIDA 24 bpp JEIDA/vesa 18 LVDS Output Mode Auto Set single/dual LVDS bus mode. Single LVDS bus Dual LVDS bus DE Polarity...

  • Page 77: Power Management

    DMI-1210 6.4.3 Power Management BIOS Item Options Description Enable ACPI Auto Enable/disable BIOS ACPI auto Disabled Configuration configuration function. Enabled Enable Hibernation Disabled Enable/disable system ability to hibernate. This option may be not Enabled effective with some OSes. ACPI Sleep State...

  • Page 78: Power Consumption

    Leading EDGE COMPUTING 6.4.4 Power Consumption BIOS Item Options Description Current Input Display current input current. Read only Current Current Input Power Read only Display current input power. voltage Display the sensed voltage based on Read only hardware design. 6.4.5 System Management BIOS Item Options...
  • Page 79 DMI-1210 BIOS Item Options Description Temperatures If this item is shown, it means SEMA Info only supports “Temperature”. Voltage Monitor If this item is shown, it means SEMA Info only supports “Voltage Monitor”. Power-up If this item is shown, it means SEMA...

  • Page 80: Thermal Management

    Leading EDGE COMPUTING 6.4.6 Thermal Management BIOS Item Options Description Temperature and Fan Speed CPU Temperature Info only Current Show current CPU temperature Read only gotten from sensor. Startup Show the CPU temperature at Read only system power up. Show the minimum CPU Read only temperature after system boot.

  • Page 81: Watchdog Timer

    DMI-1210 6.4.7 Watchdog Timer BIOS Item Options Description Power-Up Enabled The Power-Up Watchdog resets the Watchdog system after a certain amount of time Disabled after power-up. Pressing F12 key during startup will disable the power-up watchdog timer. RunTime Watchdog Enabled...

  • Page 82: Serial Port X Configuration

    Leading EDGE COMPUTING 6.4.9 Serial Port x Configuration BIOS Item Options Description Serial Port Disabled Enable or disable serial port (COMx). Enabled Device Setting It will show current resource Info only assignment of serial port (COMx). Change Settings Select an optimal setting for Super Auto IO device.
  • Page 83 DMI-1210 Console Redirection Settings BIOS Item Options Description Configure the type of console emulation. Emulation: ANSI: Extended ASCII char set. VT100 VT100+ VT100: ASCII char set. Terminal Type VT-UTF8 VT100+: Extends VT100 to support ANSI color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.
  • Page 84 Leading EDGE COMPUTING BIOS Item Options Description Stop Bits Configures the number of stop bits transmitted and received in each serial character for both serial ports. Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning).

  • Page 85: Network Stack Configuration

    DMI-1210 6.4.11 Network Stack Configuration BIOS Item Options Description Network Stack Disabled To enable or disable network stack. Enabled Ipv4 PXE Support Disabled To enable or disable Ipv4 PXE boot. Enabled Ipv6 PXE Support Disabled To enable or disable Ipv6 PXE boot.

  • Page 86: Intel I210 Gigabit Network Connection

    Leading EDGE COMPUTING BIOS Item Options Description Device power-up Maximum time the device will take Auto delay before properly reporting itself Manual to the Hot Controller, with ‘Auto’ using default value, for a Root port 100 ms, and for a Hub port the delay is taken from the Hub descriptor.

  • Page 87: Chipset Menu

    DMI-1210 6.5 Chipset Menu BIOS Item Options Description North Bridge Submenu South Bridge Submenu Uncore Submenu Configuration South Cluster Submenu Configuration 6.5.1 North Bridge Displays memory information, sets maximum value for TOLUID and enables/disables BIOS assignment and PCIe VGA work- around.

  • Page 88: Uncore Configuration

    Leading EDGE COMPUTING 6.5.3 Uncore Configuration Enables/disables Integrated Graphic Device and RC6 (Render- Standb), sets size for GTT, aperture size, DVMT pre-alloca- tion,DVMT total Gfx Mem and CD clock frequency. BIOS Item Options Description Integerated Disable Enable: Enable Integrated Graphics Graphics Devices Device (IGD) when selected as the Enable...

  • Page 89: South Cluster Configuration

    DMI-1210 6.5.4 South Cluster Configuration BIOS Item Options Description HD-Audio Submenu Configuration LPSS Configuration Submenu PCI Express Submenu Configuration SATA Drives Submenu SCC Configuration Submenu USB Configuration Submenu Miscellaneous Submenu Configuration 6.5.5 HD-Audio Configuration BIOS Item Options Description HD-Audio Support...
  • Page 90 Leading EDGE COMPUTING PCI Express Configuration Enables/disables PCI Express clock gating, Port 8xh Decode, Peer Memory Write and Compliance mode, and configures PCI Express Root Port. BIOS Item Options Description PCIE Port assigned Info only Display PCIE Port assigned to LAN to LAN Information.
  • Page 91 DMI-1210 BIOS Item Options Description NFER PCI Express Device Non-Fatal Error Disable Reporting Enable/Disable Enable PCI Express Device Correctable Error Disable Reporting Enable/Disable Enable PCI Express Completion Timer TO Default Setting Enable/Disable. 16-15 ms 65-210 ms 260-900 ms 1-3.5 s...
  • Page 92 Leading EDGE COMPUTING BIOS Item Options Description Snoop Latency Disabled Snoop Latency Override for PCH PCIE. Override Manual Disabled: Disable override. Manual: Manually enter override values. Auto Auto (default): Maintain default BIOS flow. Non Snoop Latency Disabled Non Snoop Latency Override for PCH Override PCIE.
  • Page 93 DMI-1210 BIOS Item Options Description SATA Test Mode Test Mode Enable / Disable. Disable Enable Aggressive LPM Enable PCH to Aggressively enter Disable Support link power state. Enable SATA0 Info only Software Preserve Info only Port 0 Disabled Enable / Disable SATA Port...
  • Page 94 Leading EDGE COMPUTING BIOS Item Options Description SATA Port 1 Hot If enabled, SATA port will be reported Disabled Plug Capability as Hot Plug capable. Enabled Configured as Info only Display Configured as eSATA eSATA support. Mechanical Disabled Controls reporting if this port has a Presence Switch Mechanical Presence Switch.
  • Page 95 DMI-1210 USB Configuration BIOS Item Options Description XHCI Pre-boot Enables/disables XHCI pre-boot Disabled Driver driver support. Enabled XHCI Mode Disabled Enables/disables XHCI mode. Enabled USB VBUS Turns USB VBUS on/off. USB HSIC1 Enables/disables USB HSIC1 Disabled Support support Enabled USB SSIC1...

  • Page 96: Security Menu

    Leading EDGE COMPUTING 6.6 Security Menu This menu contains the settings for security in the system. BIOS Item Options Description Administrator Configure/Clear Administrator Enter to set Password Password. password When pressing enter, a menu will be popped up for creating new password.
  • Page 97 DMI-1210 Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Security HDD Password Description Allows Access to Set, Modify and Clear HardDisk User and Master Passwords. User Password need to be installed for Enabling Security. Master Password can be Modified only when...

  • Page 98: Secure Boot

    Leading EDGE COMPUTING 6.6.1 Secure Boot BIOS Item Options Description System Mode Info only Secure Boot Info only Secure Boot Disabled Secure Boot can be enabled if: Control 1. System running in User mode with Enabled enrolled Platform Key (PK) 2.

  • Page 99: Boot Menu

    DMI-1210 6.7 Boot Menu This menu contains the settings for bootable devices in the sys- tem. BIOS Item Options Description Setup Prompt Number of seconds to wait for setup Timeout activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock Select the keyboard NumLock state State after system boot.

  • Page 100: Save & Exit Menu

    Leading EDGE COMPUTING 6.8 Save & Exit Menu BIOS Item Options Description Save Changes and Save changed settings and exit Enter Exit BIOS setup utility. Discard Changes Skip changed setting and exit BIOS Enter and Exit setup utility. Save Changes and Save all changed settings and let Enter Reset...

  • Page 101: Important Safety Instructions

    DMI-1210 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference.
  • Page 102 Leading EDGE COMPUTING A Lithium-type battery may be provided for backup power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel.

  • Page 103: Getting Service

    San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
