2.5 Installing a Mini PCIe Wi-Fi Module

Use the following steps to install a Mini PCIe Wi-Fi module.

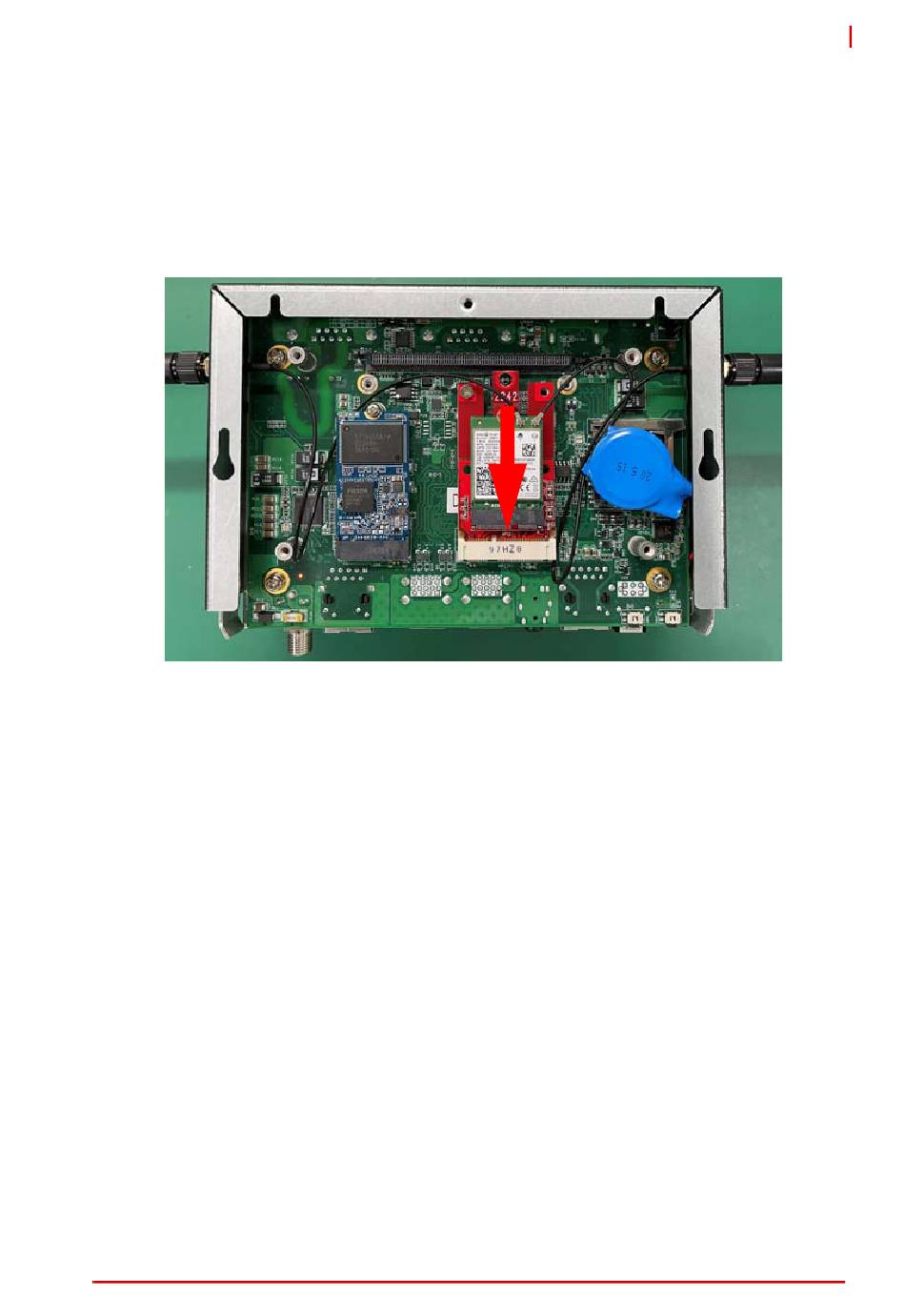

1. Insert the Mini PCIe Wi-Fi module into the indicated slot

at an angle.

2. Press down on the module until it is seated, then secure

it to the board using two M2.5-P-head-L5 screws (not

provided).

3. Attach the wires and antennas that came with your Wi-Fi

kit. It is recommended that the Wi-Fi antenna be con-

nected to the left SMA antenna port, and Wi-Fi+blue-

tooth antennal be connected to the right SMA antenna

port.

4. Replace the bottom cover of the chassis.

Getting Started

DLAP-211-JNX / DLAP-211-Nano Series
