1.5.2

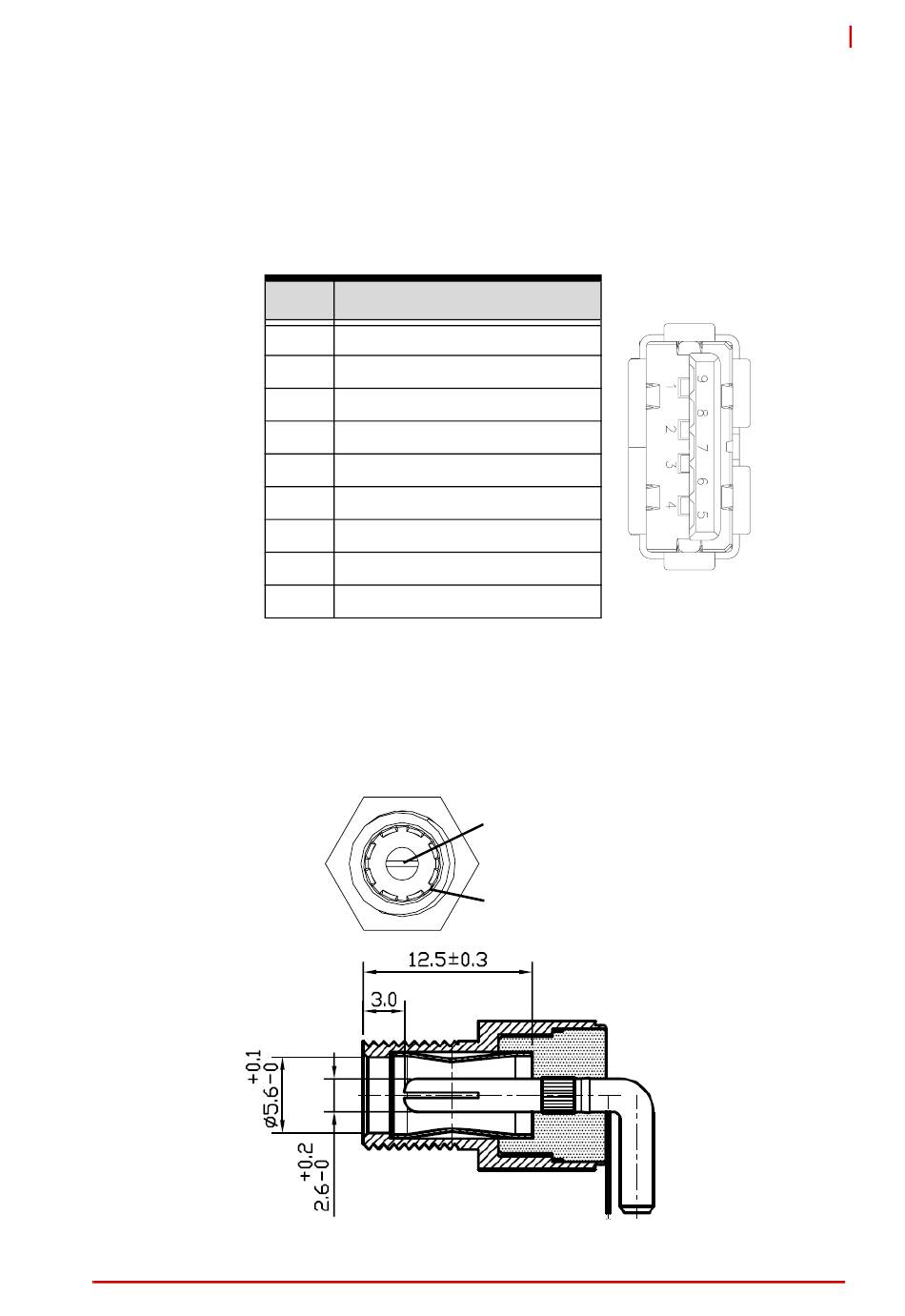

USB 3.0 Connectors

The USB 3.0 ports support a USB Type-A connection, compatible
with SuperSpeed, Hi-Speed, Full-speed, and Low-speed USB
devices suitable for USB peripherals including USB cameras.
1.5.3 12V DC Connector
The system requires a 12V DC power source with a screw-type
connector.
Introduction
Pin # Signal Name
1 USB3.0_P5VA
2 USB2_CMAN
3 USB2_CMAP
4 GND
5 USB3A_CMRXN
6 USB3A_CMRXP
7 GND
8 USB3A_CMTXN
9 USB3A_CMTXP

Table 1-6: USB 3.0 Pin Definition

DLAP-211-JNX / DLAP-211-Nano Series
+12V
GND
13
