FIGURE 10-23
10.6
System Board Fan
To remove and replace the system board fan, proceed as follows.
10.6.1
Removing the System Board Fan
1. Power-off the system.
See Section 6.2 "Powering Off the System" on page 6-2.
2. Remove the unit cover.
See Section 7.1 "Removing the Cover" on page 7-1.
10-28
Ultra 1 Creator Series Service Manual • August 1996

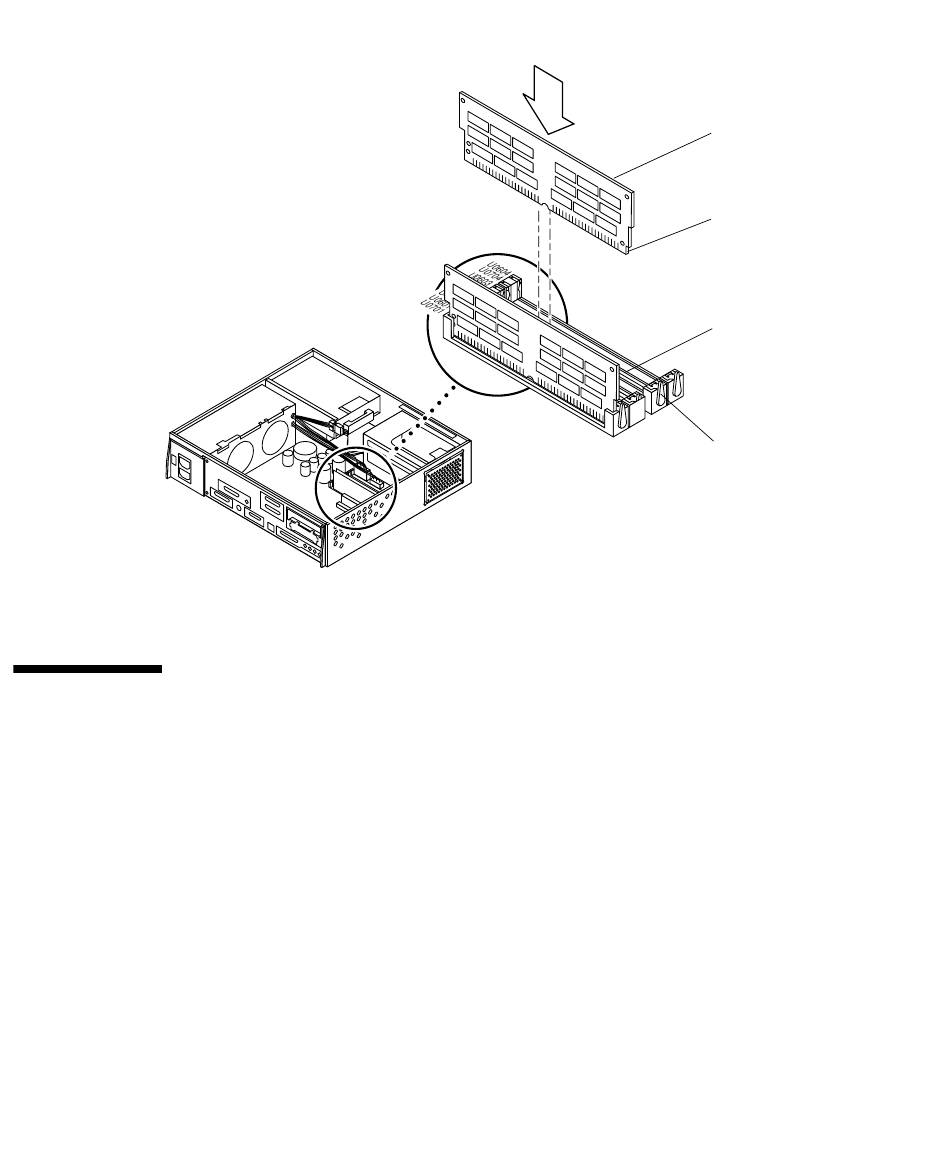

Installing a DSIMM
DSIMM
Notch
DSIMM slot
Lever
